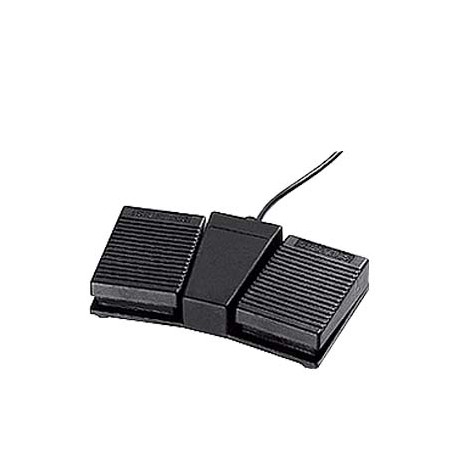

SIEMENS 3SE3934-5CB20 3SE3934-5CB20 SIEMENS Pedal switch 2 change-over contacts 2-pedal, without protective cover View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3SE3934-5CB20 SIEMENS Pedal switch 2 change-over contacts 2-pedal, without protective cover

3SE3934-5CB20

39345

SIEMENS

1 Pcs.

Pedal switch 2 change-over contacts 2-pedal, without protective cover

Automation > Foot switch
Limit Switches and safety relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

Pedal switch 2 change-over contacts 2-pedal, without protective cover
product brand nameSIRIUS
product designationmomentary-contact foot switch
product type designation3SE39
suitability for use safety switchNo
General technical data
protection class IPIP65
reference code according to IEC 81346-2S
Substance Prohibitance (Date)07/01/2006
number of switching steps1
number of the actuation pedals2
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
operational current at AC-15 at 230 V rated value5 A
Enclosure
material of the enclosureplastic with total insulation
color
● of the enclosureblack
● of the enclosure top partblack
Actuator
product feature
● interlockNo
● latchingNo
cable entry typecable, 3 m
Ambient conditions
ambient temperature during operation-10 ... +75 °C
Installation/ mounting/ dimensions
fastening methodscrew fixing
height108 mm
width212 mm
depth34 mm
Certificates/ approvals

Downloads and manuals

General Product Approval

UL

CSA

CCC

Confirmation

EAC

EAC

Declaration of ConformityTest CertificatesMarine / Shipping

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Miscellaneous

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

Marine / Shippingother

RINA / Registro Italiano Navale

DNV-GL

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:2/12/2021
Date
5/12/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3SE3934-5CB20
Product DescriptionPedal switch 2 change-over contacts 2-pedal, without protective cover
Product familySIRIUS 3SE2, 3SE3 foot switches
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41K / 41K
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works10 Day/Days
Net Weight (kg)0,718 Kg
Packaging Dimension210,00 x 235,00 x 80,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209391680
UPC040892826005
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group3750
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-12-18
eClass7.127-37-12-18
eClass827-37-12-18
eClass927-37-12-18
eClass9.127-37-12-18
ETIM5EC001258
ETIM6EC001258
ETIM7EC001258
ETIM8EC001258
IDEA45275
UNSPSC1539-12-22-22

ETIM data

ETIM: EC001258 - Foot switch

Value Unit
Degree of protection (NEMA) (EF011959) -
Type of command (EF002399) On or off
With protection hood (EF002400) false
With interlocking (EF002401) false
Material (EF002169) Plastic
With protective insulation (EF006523) FALSE
Colour (EF000007) Black
Number of switch levels (EF000246) 1
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 2
Switching function latching (EF007447) false
Suitable for safety functions (EF001597) false
Rated operation current Ie at AC-15, 230 V (EF001385) 5A
Degree of protection (IP) (EF005474) IP65
Width (EF000008) 212.0mm
Height (EF000040) 108.0mm
Depth (EF000049) 34.0mm
