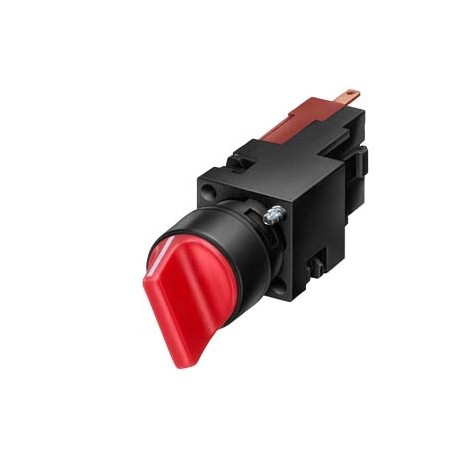

3SB2202-2AC01 SIEMENS Selector switch, 16 mm, round, plastic, red, 2 switch positions O-I, latching, actuati..
3SB2202-2AC01
22022
SIEMENS
1 Pcs.
Automation > Selector switch, complete
Commanding and signaling devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A round plastic selector switch provides essential manual control for activating or deactivating specific system functions directly from a machine operator console. Manufactured by Siemens as part number 3SB2202-2AC01, this complete unit features a latching mechanism for secure state retention. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- product designation: Selector switches
- design of the product: Complete unit round
- product type designation: 3SB2
- Enclosure number of command points: 1
- Actuator design of the actuating element: selector switch
- principle of operation of the actuating element: latching
- product extension optional light source: No
- color of the actuating element: red
- material of the actuating element: plastic
- type of unlocking device: rotate-to-unlatch mechanism
- number of switching positions: 2
- ● clockwise: 62°
- Front ring product component front ring: Yes
- design of the front ring: Standard
- material of the front ring: plastic
- color of the front ring: black
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3SB2202-2AC01 | |||||||||||||||||||||||||||||||||||||||
| Product Description | Selector switch, 16 mm, round, plastic, red, 2 switch positions O-I, latching, actuating angle 62 degree, 1 NO | |||||||||||||||||||||||||||||||||||||||
| Product family | Complete units | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | LA------ | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 10 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,026 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 52,00 x 72,00 x 48,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209131637 | |||||||||||||||||||||||||||||||||||||||
| UPC | 754554803173 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85365080 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5834 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Czech Republic | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC001029 - Selector switch, complete
| Value | Unit | |
|---|---|---|
| Degree of protection (NEMA) (EF011959) | - | |
| Number of switch positions (EF000231) | 2 | |
| Type of control element (EF006976) | Toggle | |
| Suitable for illumination (EF001142) | false | |
| With light source (EF005905) | - | |
| Colour button (EF000190) | Red | |
| Hole diameter (EF000079) | 16.0 | mm |
| Width opening (EF004565) | 19.0 | mm |
| Height opening (EF004778) | 17.0 | mm |
| Switching function latching (EF007447) | FALSE | |
| Spring-return (EF001407) | FALSE | |
| Degree of protection (IP) (EF005474) | IP65 | |
| Supply voltage (EF004127) | ['5', '250'] | V |
| Number of contacts as normally open contact (EF008256) | 1 | |
| Number of contacts as normally closed contact (EF008255) | 0 | |
| Number of contacts as change-over contact (EF008257) | 0 | |
| Type of electric connection (EF003961) | Flat plug-in connection | |
| With front ring (EF006014) | true | |
| Material front ring (EF005972) | Plastic | |
| Colour front ring (EF002429) | Black |
