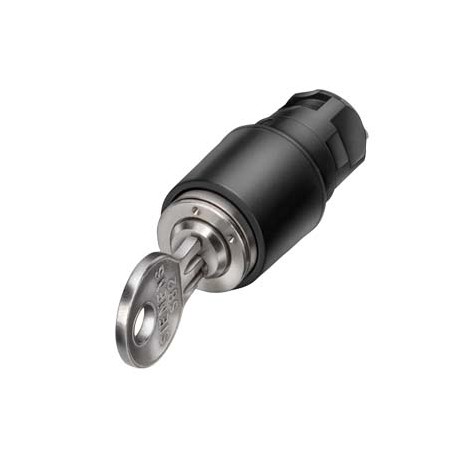

3SB2000-4LB01 SIEMENS Key-operated switch, 16 mm, round, plastic, CES, SB2, 2 switch positions O-I, latching..
3SB2000-4LB01
20004
SIEMENS
1 Pcs.
Automation > Front element for selector switch
Commanding and signaling devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens 3SB2000-4LB01 key-operated switch is a panel-mounted control device designed to prevent unauthorized system overrides by requiring a physical key for actuation. These switches are typically integrated into machine safety circuits or mode selection panels where access control is critical. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: Key-operated switches
- design of the product: Single device round
- product type designation: 3SB2
- Enclosure number of command points: 1
- Actuator design of the actuating element: Key-operated switch
- principle of operation of the actuating element: latching
- product extension optional light source: No
- material of the actuating element: plastic
- outer diameter of the actuating element: 19 mm
- type of unlocking device: key unlatching
- number of switching positions: 2
- switch position for key distraction: O+I
- ● clockwise: 62°
- lock make: CES
- Front ring product component front ring: Yes
- design of the front ring: Standard
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3SB2000-4LB01 | |||||||||||||||||||||||||||||||||||||||
| Product Description | Key-operated switch, 16 mm, round, plastic, CES, SB2, 2 switch positions O-I, latching, actuating angle 62 degree key removal O+I, possible special locks: SB3, SB4, SB5 | |||||||||||||||||||||||||||||||||||||||
| Product family | Actuating and signaling elements | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41J / 41J | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 2 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,020 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 18,00 x 60,00 x 18,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209027824 | |||||||||||||||||||||||||||||||||||||||
| UPC | 754554865607 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 83014090 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5834 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Czech Republic | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000222 - Front element for selector switch
| Value | Unit | |
|---|---|---|
| Colour control element (EF007167) | - | |
| Degree of protection (NEMA) (EF011959) | - | |
| Number of switch positions (EF000231) | 2 | |
| Type of control element (EF006976) | Key | |
| Suitable for illumination (EF001142) | false | |
| Colour indicator light cap (EF007165) | Other | |
| Construction type lens (EF006253) | Round | |
| Hole diameter (EF000079) | 16.0 | mm |
| Width opening (EF004565) | 19.0 | mm |
| Height opening (EF004778) | 20.0 | mm |
| Switching function latching (EF007447) | FALSE | |
| Spring-return (EF001407) | FALSE | |
| With front ring (EF006014) | true | |
| Material front ring (EF005972) | Plastic | |
| Colour front ring (EF002429) | Black | |
| Degree of protection (IP), front side (EF003118) | IP65 |
