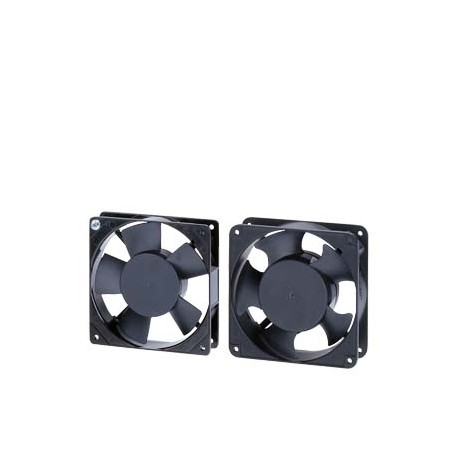

SIEMENS 3RW4936-8VX30 3RW4936-8VX30 SIEMENS Fan for SIRIUS soft starter 3RW405.-.BB3 3RW442.-.BC3., 3RW443.-.BC3 115 V AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3RW4936-8VX30 SIEMENS Fan for SIRIUS soft starter 3RW405.-.BB3 3RW442.-.BC3., 3RW443.-.BC3 115 V AC

3RW4936-8VX30

49368

SIEMENS

1 Pcs.

Fan for SIRIUS soft starter 3RW405.-.BB3 3RW442.-.BC3., 3RW443.-.BC3 115 V AC

Automation > Accessories/spare parts for low-voltage switch technology
SIRIUS soft starter

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

Fan for SIRIUS soft starter 3RW405.-.BB3 3RW442.-.BC3., 3RW443.-.BC3 115 V AC
product brand nameSIRIUS
product categoryFan
product designationFan
design of the productCan be used for 3RW442. and 3RW443./115 V AC
Substance Prohibitance (Date)05/01/2012
Safety related data
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

CSA

Confirmation

UL

EAC

RCM

EC/EU-Declaration of Conformity

Test CertificatesMarine / Shippingother

Special Test Certificate

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

DNV-GL

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Tripping characteristics, I²t, Let-through current
Characteristic: Installation altitude
Simulation Tool for Soft Starters (STS)
last modified:12/15/2020
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RW4936-8VX30
Product DescriptionFan for SIRIUS soft starter 3RW405.-.BB3 3RW442.-.BC3., 3RW443.-.BC3 115 V AC
Product family3RW44 soft starters
Product Lifecycle (PLM)PM300:Active Product
PLM Effective DateProduct phase-out since: 01.10.2022
Price data
Region Specific PriceGroup / Headquarter Price Group42G / 42G
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works40 Day/Days
Net Weight (kg)0,422 Kg
Packaging Dimension148,00 x 150,00 x 60,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209638969
UPC754554935911
Commodity Code84145925
LKZ_FDB/ CatalogIDCC-IC10
Product Group3727
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-92-01
eClass7.127-37-92-01
eClass827-37-92-01
eClass927-37-92-01
eClass9.127-37-92-01
ETIM5EC002498
ETIM6EC002498
ETIM7EC002498
ETIM8EC002498
UNSPSC1439-12-15-21
UNSPSC1539-12-15-21

ETIM data

ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology

Value Unit
Type of accessory/spare part (EF000215) Other
