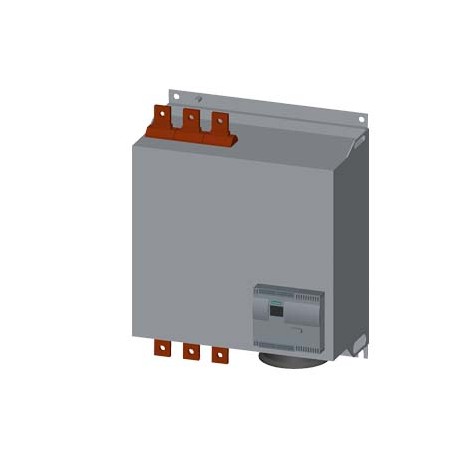

3RW4453-2BC45 SIEMENS SIRIUS soft starter Values at 500 V, 40 °C standard: 551 A, 355 kW Inside-delta: 954 A..
3RW4453-2BC45
44532
SIEMENS
1 Pcs.
Automation > Soft starter
Soft starters for high-feature applications
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for high-power industrial applications, the 3RW4453-2BC45 Siemens SIRIUS soft starter regulates motor voltage parameters to protect heavy-duty equipment. Such controllers are essential in manufacturing environments for reducing starting torque spikes and maintaining stable power distribution.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- insulation voltage rated value: V
- ● at 40 °C rated value: A
- ● at 50 °C rated value: A
- ● at 60 °C rated value: A
- ● at 40 °C rated value: A
- ● at 50 °C rated value: A
- ● at 60 °C rated value: A
- — at standard circuit at 40 °C rated value: kW
- — at inside-delta circuit at 40 °C rated value: kW
- — at standard circuit at 40 °C rated value: kW
- — at inside-delta circuit at 40 °C rated value: kW
- operating frequency rated value: Hz
- relative negative tolerance of the operating frequency: %
- relative positive tolerance of the operating frequency: %
- operating voltage at standard circuit rated value: V
- operating voltage at inside-delta circuit rated value: V
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3RW4453-2BC45 | |||||||||||||||||||||||||||||||||||||||
| Product Description | SIRIUS soft starter Values at 500 V, 40 °C standard: 551 A, 355 kW Inside-delta: 954 A, 630 kW 400-600 V AC, 230 V AC spring-type terminals !!! Phased-out product !!! Successor is SIRIUS 3RW5, Preferred successor type is >>3RW5548-2HA16<< | |||||||||||||||||||||||||||||||||||||||
| Product family | 3RW44 soft starters | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM400:Phase Out Started | |||||||||||||||||||||||||||||||||||||||
| PLM Effective Date | Product phase-out since: 01.10.2019 | |||||||||||||||||||||||||||||||||||||||
| Notes | Sucessor:Nachfolger ist SIRIUS 3RW5, Präferierte Nachfolgertype ist >>3RW5548-2HA16<< | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 42H / 42H | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | LAO----- | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 50 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 65,500 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 585,00 x 765,00 x 480,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209659117 | |||||||||||||||||||||||||||||||||||||||
| UPC | 754554931807 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85371098 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 3728 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Czech Republic | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 | |||||||||||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000640 - Soft starter
| Value | Unit | |
|---|---|---|
| Release class (EF006668) | - | |
| Degree of protection (NEMA) (EF011959) | - | |
| Torque control (EF009215) | - | |
| Internal bypass (EF009214) | - | |
| With display (EF000458) | - | |
| Rated operation current Ie at 40 °C Tu (EF007039) | 551 | A |
| Rated operating voltage Ue (EF002418) | ['400', '600'] | V |
| Rated power three-phase motor, inline, at 400 V (EF007054) | 315.0 | kW |
| Rated power three-phase motor, inside delta, at 400 V (EF007056) | 560.0 | kW |
| Function (EF000030) | Single direction | |
| Rated surrounding temperature without derating (EF007074) | 40 | °C |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '230'] | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '230'] | V |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] | V |
| Voltage type for actuating (EF008242) | AC | |
| Integrated motor overload protection (EF007297) | true | |
| Degree of protection (IP) (EF005474) | IP00 | |
| Rated power three-phase motor, inline, at 230 V (EF007053) | - | kW |
| Rated power three-phase motor, inside delta, at 230 V (EF007055) | - | kW |
