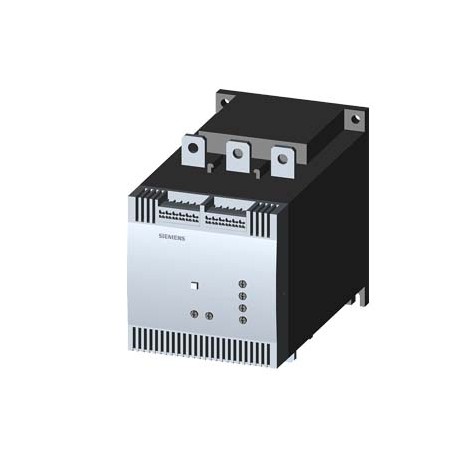

SIEMENS 3RW4076-2BB34 3RW4076-2BB34 SIEMENS SIRIUS soft starter S12 385 A, 300 hp/460 V, 50 °C 200-460 V AC, 115 V AC spring-type .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3RW4076-2BB34 SIEMENS SIRIUS soft starter S12 385 A, 300 hp/460 V, 50 °C 200-460 V AC, 115 V AC spring-type ..

3RW4076-2BB34

40762

SIEMENS

1 Pcs.

SIRIUS soft starter S12 385 A, 300 hp/460 V, 50 °C 200-460 V AC, 115 V AC spring-type terminals !!! Phased-out product !!! Successor is SIRIUS 3RW5, Preferred successor type is >>3RW5076-2AB14< SIRIUS Electronic starter,smooth start and stop,motor protection S12 200-460 V AC/400V, 40ºC, CLASS10 : 432A, 250KW ; Vm: 15V AC, spring connection. Manufactured to order. Non-Cancelable Non-Returnable.

Automation > Soft starter
SIRIUS soft starter

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Additional data

Product
Article Number (Market Facing Number)3RW4076-2BB34
Product DescriptionSIRIUS soft starter S12 385 A, 300 hp/460 V, 50 °C 200-460 V AC, 115 V AC spring-type terminals !!! Phased-out product !!! Successor is SIRIUS 3RW5, Preferred successor type is >>3RW5076-2AB14<<
Product family3RW40 soft starters
Product Lifecycle (PLM)PM400:Phase Out Started
PLM Effective DateProduct phase-out since: 01.10.2019
Notes
Sucessor:Nachfolger ist SIRIUS 3RW5, Präferierte Nachfolgertype ist >>3RW5076-2AB14<<
Price data
Region Specific PriceGroup / Headquarter Price Group42G / 42G
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works50 Day/Days
Net Weight (kg)8,850 Kg
Packaging Dimension323,00 x 338,00 x 224,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209612150
UPC754554923505
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3727
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead titanium zirconium oxide

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-09-07
eClass7.127-37-09-07
eClass827-37-09-07
eClass927-37-09-07
eClass9.127-37-09-07
ETIM5EC000640
ETIM6EC000640
ETIM7EC000640
ETIM8EC000640
IDEA44740
UNSPSC1439-12-15-21
UNSPSC1539-12-15-21

ETIM data

ETIM: EC000640 - Soft starter

Value Unit
Release class (EF006668) -
Degree of protection (NEMA) (EF011959) -
Torque control (EF009215) -
With display (EF000458) -
Internal bypass (EF009214) -
Rated operation current Ie at 40 °C Tu (EF007039) 432A
Rated operating voltage Ue (EF002418) ['200', '460']V
Rated power three-phase motor, inline, at 230 V (EF007053) 132.0kW
Rated power three-phase motor, inline, at 400 V (EF007054) 250.0kW
Function (EF000030) Single direction
Rated surrounding temperature without derating (EF007074) 40°C
Rated control supply voltage Us at AC 50HZ (EF003978) ['-', '115']V
Rated control supply voltage Us at AC 60HZ (EF003979) ['-', '115']V
Rated control supply voltage Us at DC (EF003980) ['-', '-']V
Voltage type for actuating (EF008242) AC
Integrated motor overload protection (EF007297) true
Degree of protection (IP) (EF005474) IP00
Rated power three-phase motor, inside delta, at 230 V (EF007055) -kW
Rated power three-phase motor, inside delta, at 400 V (EF007056) -kW
