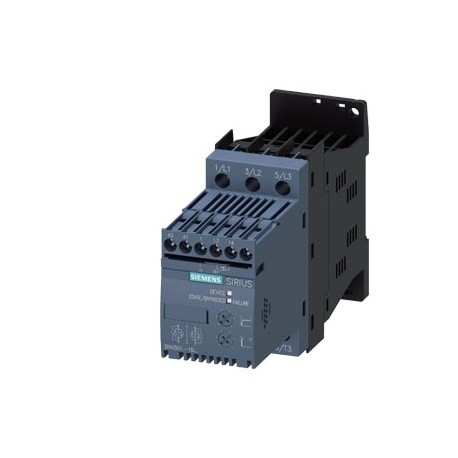

3RW3014-1BB04 SIEMENS SIRIUS soft starter S00 6.5 A, 3 kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC Screw termin..
3RW3014-1BB04
30141
SIEMENS
1 Pcs.
Automation > Soft starter
SIRIUS soft starter
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens-manufactured 3RW3014-1BB04 SIEMENS SIRIUS soft starter S00 6.5 A, 3 kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC Screw termin.. provides controlled voltage ramps for standard three-phase industrial motors, preventing abrupt mechanical engagement.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- insulation voltage rated value: V
- ● at 40 °C rated value: A
- ● at 50 °C rated value: A
- ● at 60 °C rated value: A
- — at standard circuit at 40 °C rated value: kW
- — at standard circuit at 40 °C rated value: kW
- operating frequency rated value: Hz
- relative negative tolerance of the operating frequency: %
- relative positive tolerance of the operating frequency: %
- operating voltage at standard circuit rated value: V
- minimum load [%]: %
- continuous operating current [% of Ie] at 40 °C: %
- control supply voltage frequency 1 rated value: Hz
- control supply voltage frequency 2 rated value: Hz
- ● at 50 Hz rated value: V
- ● at 60 Hz rated value: V
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3RW3014-1BB04 | |||||||||||||||||||||||||||||||||||||||
| Product Description | SIRIUS soft starter S00 6.5 A, 3 kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC Screw terminals | |||||||||||||||||||||||||||||||||||||||
| Product family | 3RW30 soft starters | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 42G / 42G | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | LBO----- | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : EAR99 | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 50 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,447 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 210,00 x 162,00 x 60,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209719590 | |||||||||||||||||||||||||||||||||||||||
| UPC | 040892691870 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85371098 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5345 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Czech Republic | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000640 - Soft starter
| Value | Unit | |
|---|---|---|
| Torque control (EF009215) | - | |
| Degree of protection (NEMA) (EF011959) | - | |
| Internal bypass (EF009214) | - | |
| With display (EF000458) | - | |
| Release class (EF006668) | - | |
| Rated operation current Ie at 40 °C Tu (EF007039) | 6.5 | A |
| Rated operating voltage Ue (EF002418) | ['200', '480'] | V |
| Rated power three-phase motor, inline, at 230 V (EF007053) | 1.5 | kW |
| Rated power three-phase motor, inline, at 400 V (EF007054) | 3.0 | kW |
| Function (EF000030) | Single direction | |
| Rated surrounding temperature without derating (EF007074) | 40 | °C |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '24'] | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '24'] | V |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] | V |
| Voltage type for actuating (EF008242) | AC/DC | |
| Integrated motor overload protection (EF007297) | false | |
| Degree of protection (IP) (EF005474) | IP20 | |
| Rated power three-phase motor, inside delta, at 230 V (EF007055) | - | kW |
| Rated power three-phase motor, inside delta, at 400 V (EF007056) | - | kW |
