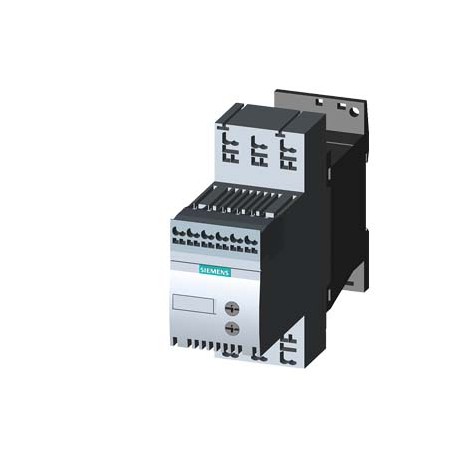

3RW3013-2BB04 SIEMENS SIRIUS soft starter S00 3.6 A, 1.5 kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC Spring-typ..
3RW3013-2BB04
30132
SIEMENS
1 Pcs.
Automation > Soft starter
SIRIUS soft starter
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for smaller motor applications, this 3RW3013-2BB04 Siemens SIRIUS soft starter provides gradual voltage ramps to prevent abrupt mechanical shock and protect electrical supply networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- insulation voltage rated value: V
- ● at 40 °C rated value: A
- ● at 50 °C rated value: A
- ● at 60 °C rated value: A
- — at standard circuit at 40 °C rated value: kW
- — at standard circuit at 40 °C rated value: kW
- operating frequency rated value: Hz
- relative negative tolerance of the operating frequency: %
- relative positive tolerance of the operating frequency: %
- operating voltage at standard circuit rated value: V
- minimum load [%]: %
- continuous operating current [% of Ie] at 40 °C: %
- control supply voltage frequency 1 rated value: Hz
- control supply voltage frequency 2 rated value: Hz
- ● at 50 Hz rated value: V
- ● at 60 Hz rated value: V
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3RW3013-2BB04 | |||||||||||||||||||||||||||||||||||||||
| Product Description | SIRIUS soft starter S00 3.6 A, 1.5 kW/400 V, 40 °C 200-480 V AC, 24 V AC/DC Spring-type terminals | |||||||||||||||||||||||||||||||||||||||
| Product family | 3RW30 soft starters | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 42G / 42G | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | LBO----- | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : EAR99 | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 50 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,471 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 164,00 x 58,00 x 126,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209722910 | |||||||||||||||||||||||||||||||||||||||
| UPC | 754554958170 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85371098 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5345 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Czech Republic | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000640 - Soft starter
| Value | Unit | |
|---|---|---|
| Torque control (EF009215) | - | |
| Internal bypass (EF009214) | - | |
| Degree of protection (NEMA) (EF011959) | - | |
| Release class (EF006668) | - | |
| With display (EF000458) | - | |
| Rated operation current Ie at 40 °C Tu (EF007039) | 3.6 | A |
| Rated operating voltage Ue (EF002418) | ['200', '480'] | V |
| Rated power three-phase motor, inline, at 230 V (EF007053) | 0.75 | kW |
| Rated power three-phase motor, inline, at 400 V (EF007054) | 1.5 | kW |
| Function (EF000030) | Single direction | |
| Rated surrounding temperature without derating (EF007074) | 40 | °C |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '24'] | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '24'] | V |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] | V |
| Voltage type for actuating (EF008242) | AC/DC | |
| Integrated motor overload protection (EF007297) | false | |
| Degree of protection (IP) (EF005474) | IP20 | |
| Rated power three-phase motor, inside delta, at 230 V (EF007055) | - | kW |
| Rated power three-phase motor, inside delta, at 400 V (EF007056) | - | kW |
