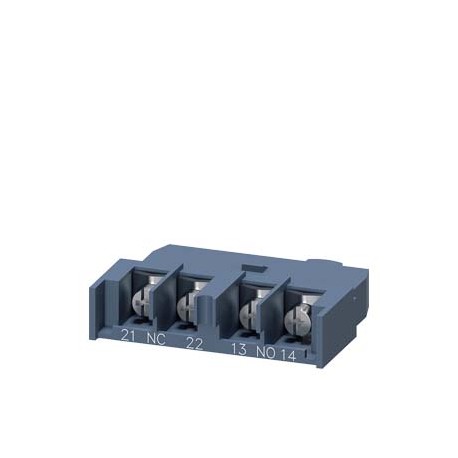

SIEMENS 3RV2901-4E 3RV2901-4E SIEMENS Auxiliary switch transverse 1 NO+1 NC ring cable lug connection for circuit breaker 3RV2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3RV2901-4E SIEMENS Auxiliary switch transverse 1 NO+1 NC ring cable lug connection for circuit breaker 3RV2

3RV2901-4E

29014

SIEMENS

1 Pcs.

Auxiliary switch transverse 1 NO+1 NC ring cable lug connection for circuit breaker 3RV2

Automation > Auxiliary contact block
Motor protection switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

Auxiliary switch transverse 1 NO+1 NC ring cable lug connection for circuit breaker 3RV2
General technical data
product brand nameSIRIUS
product designationauxiliary switch, transverse on the front
design of the producttransverse auxiliary switches
size of the circuit-breakerS00, S0, S2, S3
protection class IP on the front according to IEC 60529IP00; IP20 with cover
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front with cover
ambient temperature
● during storage°C-50 ... +80
● during operation°C-20 ... +60
Auxiliary circuit
number of NC contacts for auxiliary contacts instantaneous contact1
number of NO contacts for auxiliary contacts instantaneous contact1
number of CO contacts of auxiliary contacts instantaneous contact0
operational current
● of auxiliary contacts
— at AC-12
— at 24 VA2.5
— at 230 VA2.5
— maximumA2.5
— at AC-15
— at 24 VA2
— at 230 VA0.5
— at DC-13
— at 24 VA1
— at 48 VA0.3
— at 60 VA0.15
Installation/ mounting/ dimensions
fastening methodplug-in fixing
widthmm45
heightmm12
depthmm17
Connections/ Terminals
type of electrical connection for auxiliary and control circuitring terminal lug connection
Certificates/ approvals
certificate of suitabilityCE / UL / CSA / CCC

Downloads and manuals

General Product Approval

CSA

Confirmation

CCC

UL

KC

EAC

Declaration of ConformityTest CertificatesMarine / Shipping

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Type Test Certificates/Test Report

Special Test Certificate

ABS (American Bureau of Shipping)

BV / Bureau Veritas

Marine / Shippingother

DNV / Det Norske Veritas

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Confirmation

otherRailway

Household and similar appliances

Vibration and Shock

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/27/2022
Date
5/11/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RV2901-4E
Product DescriptionAuxiliary switch transverse 1 NO+1 NC ring cable lug connection for circuit breaker 3RV2
Product familyMountable accessories
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41E / 41E
Surcharge for Raw MaterialsNone
Metal FactorLBP-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)0,020 Kg
Packaging Dimension30,00 x 30,00 x 30,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209790841
UPC662643924831
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5335
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-13-02
eClass7.127-37-13-02
eClass827-37-13-02
eClass927-37-13-02
eClass9.127-37-13-02
ETIM5EC000041
ETIM6EC000041
ETIM7EC000041
ETIM8EC000041
IDEA44743
UNSPSC1439-12-15-21
UNSPSC1539-12-15-22

ETIM data

ETIM: EC000041 - Auxiliary contact block

Value Unit
Number of contacts as change-over contact (EF008257) 0
Number of contacts as normally open contact (EF008256) 1
Number of contacts as normally closed contact (EF008255) 1
Number of fault-signal switches (EF007613) 0
Rated operation current Ie at AC-15, 230 V (EF001385) 0.5A
Type of electric connection (EF003961) Other
Model (EF000010) Top mounting
Mounting method (EF000003) Other
Lamp holder (EF000048) None
