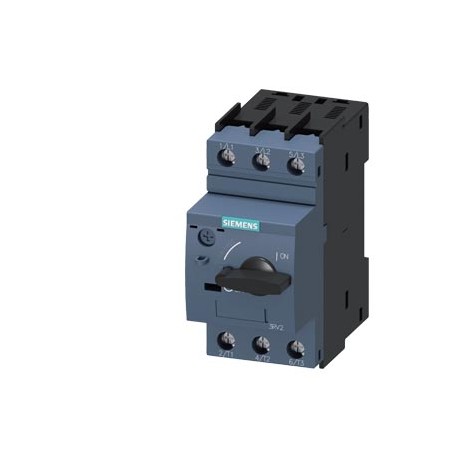

3RV2021-0CA10 SIEMENS Circuit breaker size S0 for motor protection, Class 10 A-release 0.18...0.25 A Short-c..
3RV2021-0CA10
018025
SIEMENS
1 Pcs.
Automation > Motor protection circuit-breaker
Motor protection switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
3RV2021-0CA10 SIEMENS Circuit breaker size S0 for motor protection, Class 10 A-release 0.18...0.25 A Short-c.. acts as an electromechanical motor starter designed to protect industrial machinery against thermal overloads and short circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: Circuit breaker
- design of the product: For motor protection
- product type designation: 3RV2
- General technical data size of the circuit-breaker: S0
- size of contactor can be combined company-specific: S00, S0
- product extension auxiliary switch: Yes
- ● at AC in hot operating state: 5.5 W
- ● at AC in hot operating state per pole: 1.8 W
- surge voltage resistance rated value: 6 kV
- ● between main and auxiliary circuit: 400 V
- shock resistance according to IEC 60068-2-27: 25g / 11 ms
- ● of the main contacts typical: 100 000
- ● of auxiliary contacts typical: 100 000
- electrical endurance (switching cycles) typical: 100 000
- type of protection according to ATEX directive 2014/34/EU: Ex II (2) GD
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3RV2021-0CA10 | ||||||||||||||||||||||||||||||||||||
| Product Description | Circuit breaker size S0 for motor protection, Class 10 A-release 0.18...0.25 A Short-circuit release 3.3 A Screw terminal Standard switching capacity | ||||||||||||||||||||||||||||||||||||
| Product family | SIRIUS 3RV2 motor starter protectors | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41E / 41E | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | LBP----- | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 70 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,300 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 55,00 x 101,00 x 104,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4047621062754 | ||||||||||||||||||||||||||||||||||||
| UPC | 804766806599 | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85362010 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
| Product Group | 5333 | ||||||||||||||||||||||||||||||||||||
| Group Code | R711 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 | ||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000074 - Motor protection circuit-breaker
| Value | Unit | |
|---|---|---|
| Degree of protection (IP) (EF005474) | - | |
| Switch off technique (EF007007) | - | |
| Type of control element (EF006976) | - | |
| Type of electrical connection of main circuit (EF006819) | - | |
| Overload release current setting (EF002336) | ['0.18', '0.25'] | A |
| Adjustment range undelayed short-circuit release (EF007131) | ['3.3', '3.3'] | A |
| With thermal protection (EF006233) | thermal | |
| Phase failure sensitive (EF007400) | true | |
| Rated operating voltage (EF001435) | ['690', '690'] | V |
| Rated permanent current Iu (EF001389) | 0.25 | A |
| Rated operation power at AC-3, 230 V (EF007025) | 0.04 | kW |
| Rated operation power at AC-3, 400 V (EF001364) | 0.06 | kW |
| Device construction (EF008240) | Built-in device fixed built-in technique | |
| With integrated auxiliary switch (EF001387) | false | |
| With integrated under voltage release (EF001390) | false | |
| Number of poles (EF001391) | 3 | |
| Rated short-circuit breaking capacity lcu at 400 V, AC (EF007049) | 100.0 | kA |
| Height (EF000040) | 97.0 | mm |
| Width (EF000008) | 45.0 | mm |
| Depth (EF000049) | 97.0 | mm |
