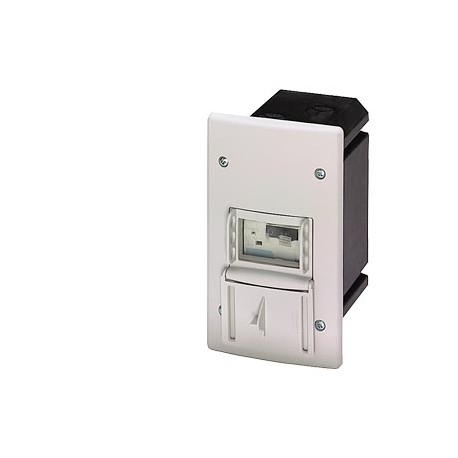

3RV1913-2DA00 SIEMENS Molded-plastic installation enclosure with actuator diaphragm Metric cable gland No UL..
3RV1913-2DA00
19132
SIEMENS
1 Pcs.
Automation > Empty enclosure for switchgear
Motor protection switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens molded-plastic installation enclosure (3RV1913-2DA00) serves as a protective housing designed to mount and shield miniature circuit breakers and motor starters in control panels. These enclosures protect internal components from physical damage and ambient environmental factors while offering straightforward cable entry. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Installation/ mounting/ dimensions width: mm
- height: mm
- depth: mm
- other: Railway
- Date 5/9/2022: Subject to change without notice © Copyright Siemens 2022
- Product Article Number (Market Facing Number): 3RV1913-2DA00
- Product family: Ordering Data Overview
- Product Lifecycle (PLM): PM300:Active Product
- Delivery information Export Control Regulations: AL : N / ECCN : N
- Standard lead time ex-works: 2 Day/Days
- Net Weight (kg): 0,397 Kg
- Packaging Dimension: 135,00 x 175,00 x 115,00
- Package size unit of measure: MM
- Quantity Unit: 1 Piece
- Packaging Quantity: 1
- Additional Product Information EAN: 4011209518148
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3RV1913-2DA00 | |||||||||||||||||||||||||||||||||||||||
| Product Description | Molded-plastic installation enclosure with actuator diaphragm Metric cable gland No UL/CSA approval | |||||||||||||||||||||||||||||||||||||||
| Product family | Ordering Data Overview | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41E / 41E | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 2 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,397 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 135,00 x 175,00 x 115,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209518148 | |||||||||||||||||||||||||||||||||||||||
| UPC | 754554764481 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85389099 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 3719 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Italy | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000712 - Empty enclosure for switchgear
| Value | Unit | |
|---|---|---|
| Degree of protection (NEMA) (EF011959) | - | |
| Material housing (EF001596) | Plastic | |
| Width (EF000008) | 105.0 | mm |
| Height (EF000040) | 175.0 | mm |
| Depth (EF000049) | 108.0 | mm |
| With transparent cover (EF001094) | false | |
| Suitable for emergency stop (EF001433) | false | |
| Model (EF000010) | Built-in | |
| Degree of protection (IP) (EF005474) | IP55 |
