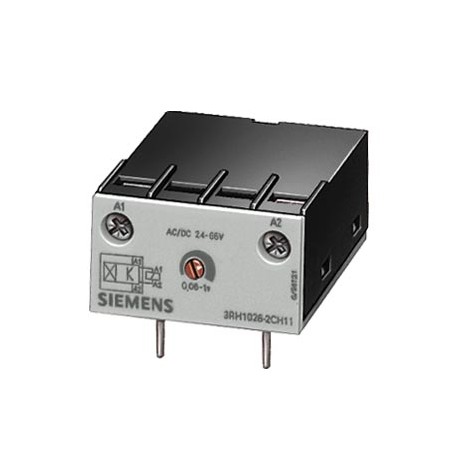

SIEMENS 3RT1926-2EC11 3RT1926-2EC11 SIEMENS solid-state time-delayed front-side auxiliary switch Time range 0.05...1 s, 100 ... 12.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3RT1926-2EC11 SIEMENS solid-state time-delayed front-side auxiliary switch Time range 0.05...1 s, 100 ... 12..

3RT1926-2EC11

19262

SIEMENS

1 Pcs.

solid-state time-delayed front-side auxiliary switch Time range 0.05...1 s, 100 ... 127 V AC, 1 NO contact, 1 NC contact ON delay, for 3RT1 SIRIUS Auxiliary contact with electronic delay of a range 0.05 s... 1 s, AC 100...127V, 1NA+1NC, excitation delay, for mounting on contactors size S0... S3. Manufactured to order. Non-Cancelable Non-Returnable.

Automation > Timer block
Function relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Siemens solid-state time-delayed front-side auxiliary switch (3RT1926-2EC11) enables precise time-dependent switching in complex industrial control setups. Auxiliary timing modules mount onto contactors to execute short-duration interval delays, safeguarding machinery from rapid cycling and abrupt operational shifts.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Product Article Number (Market Facing Number): 3RT1926-2EC11
  • Product family: Not available
  • Product Lifecycle (PLM): PM410:Product cancellation
  • PLM Effective Date: Product is cancelled since: 01.10.2025
  • Successor information Successor: 3RP2525-1BW30
  • Metal Factor: LA------
  • Delivery information Export Control Regulations: ECCN : N / AL : N
  • Standard lead time ex-works: 15 Day/Days
  • Net Weight (kg): 0,085 Kg
  • Packaging Dimension: 45,00 x 105,00 x 50,00
  • Package size unit of measure: MM
  • Quantity Unit: 1 Piece
  • Packaging Quantity: 1
  • Additional Product Information EAN: 4011209308343
  • UPC: Not available
  • Commodity Code: 85364900

More info

▲
Product
Article Number (Market Facing Number)3RT1926-2EC11
Product Descriptionsolid-state time-delayed front-side auxiliary switch Time range 0.05...1 s, 100 ... 127 V AC, 1 NO contact, 1 NC contact ON delay, for 3RT1
Product familyNot available
Product Lifecycle (PLM)PM410:Product cancellation
PLM Effective DateProduct is cancelled since: 01.10.2025
Notes
The product was replaced with the following successor product:
3RP2525-1BW30Compare Products
Successor information
Successor3RP2525-1BW30
Successor DescriptionTiming relay, electronic on-delay 2 change-over contacts, 7 time ranges 0.05 s...100 h 12-240 V AC/DC at 50/60 Hz AC with LED, screw terminal
Price data
Region Specific PriceGroup / Headquarter Price Group41B / 41B
Surcharge for Raw MaterialsNone
Metal FactorLA------
Delivery information
Export Control RegulationsECCN : N / AL : N
Standard lead time ex-works15 Day/Days
Net Weight (kg)0,085 Kg
Packaging Dimension45,00 x 105,00 x 50,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209308343
UPCNot available
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group5347
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classC: products manufactured / produced to order, which cannot be reused or re-utilized or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
Not available

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
