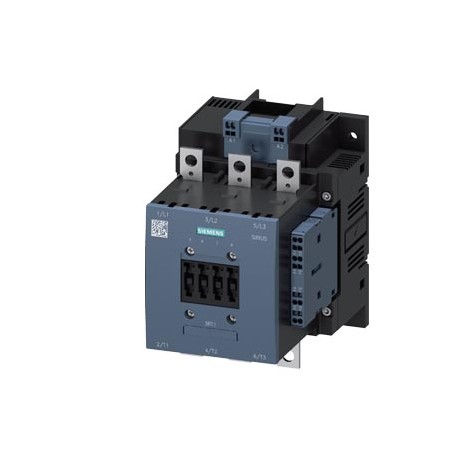

3RT1456-2AP36 SIEMENS Contactor, AC-1, 275 A/690 V/40 °C, S6, 3-pole, 220-240 V AC/DC, with varistor, 2 NO+2..
3RT1456-2AP36
14562
SIEMENS
1 Pcs.
Automation > Power contactor, AC switching
Contactors for switching motors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Handling high-capacity electrical distribution, the 3RT1456-2AP36 SIEMENS Contactor is a heavy-duty industrial switching component designed for resistive or mildly inductive loads. These large contactors are typically deployed in power management systems to govern high-current circuits reliably within industrial facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: Contactor
- product type designation: 3RT14
- General technical data size of contactor: S6
- ● function module for communication: No
- ● auxiliary switch: Yes
- ● at AC in hot operating state: 86.4 W
- ● at AC in hot operating state per pole: 28.8 W
- ● without load current share typical: 5.2 W
- ● of main circuit with degree of pollution 3 rated value: 1 000 V
- ● of main circuit rated value: 8 kV
- ● of auxiliary circuit rated value: 6 kV
- ● at AC: 8,5g / 5 ms, 4,2g / 10 ms
- ● at DC: 8,5g / 5 ms, 4,2g / 10 ms
- ● at AC: 13,4g / 5 ms, 6,5g / 10 ms
- ● at DC: 13,4g / 5 ms, 6,5g / 10 ms
- ● of contactor typical: 10 000 000
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3RT1456-2AP36 | ||||||||||||||||||||||||||||||||||||
| Product Description | Contactor, AC-1, 275 A/690 V/40 °C, S6, 3-pole, 220-240 V AC/DC, with varistor, 2 NO+2 NC, Connection rail/ Spring-type terminal | ||||||||||||||||||||||||||||||||||||
| Product family | SIRIUS 3RT.4 contactors for weak or non-inductive loads (AC-1), 3-pole up to 2 650 A | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | LFO----- | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 50 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 3,340 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 190,00 x 129,00 x 181,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4011209650572 | ||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85364900 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
| Product Group | 3706 | ||||||||||||||||||||||||||||||||||||
| Group Code | R711 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 | ||||||||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000066 - Power contactor, AC switching
| Value | Unit | |
|---|---|---|
| Number of normally closed contacts as main contact (EF001375) | - | |
| Type of electrical connection of main circuit (EF006819) | - | |
| Rated operation power NEMA (EF011960) | - | kW |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['220.0', '240.0'] | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['220.0', '240.0'] | V |
| Rated control supply voltage Us at DC (EF003980) | ['220', '240'] | V |
| Voltage type for actuating (EF008242) | AC/DC | |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 275 | A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 97 | A |
| Rated operation current Ie at AC-4, 400 V (EF008495) | - | A |
| Modular version (EF001126) | true | |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 | |
| Number of main contacts as normally open contact (EF001374) | 3 | |
| Rated operation power at AC-4, 400 V (EF008496) | - | kW |
| Rated operation power at AC-3, 400 V (EF001364) | - | kW |
