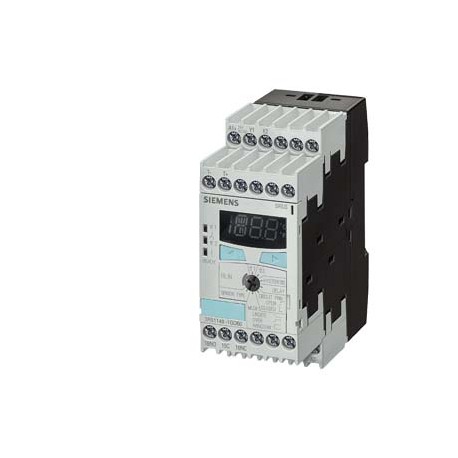

SIEMENS 3RS2041-2GW50 3RS2041-2GW50 SIEMENS temperature monitoring relay Pt100/1000 KTY83/84, NTC 3 sensors, 2 threshold values di.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3RS2041-2GW50 SIEMENS temperature monitoring relay Pt100/1000 KTY83/84, NTC 3 sensors, 2 threshold values di..

3RS2041-2GW50

20412

SIEMENS

1 Pcs.

temperature monitoring relay Pt100/1000 KTY83/84, NTC 3 sensors, 2 threshold values digitally adjustable -58 °F to 932 °F 24 - 240 V AC/DC 2 x 1 CO + 1 NO, width 45 mm spring-loaded terminal !!!phased-out product!!! the preferred successor is 3RS2600-2BW30+3RS2900-2AW30 Temperature monitoring relay PT100/1000, KTY83/84, NTC 3 sensors, 2 thresholds, digital, -58°F... 932°F, 24-240V AC/DC, 2 x 1 CC + 1NC, width 45mm, screw connection. Manufactured to order. Non-Cancelable Non-Returnable.

Automation > Temperature monitoring relay
Function relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

temperature monitoring relay Pt100/1000 KTY83/84, NTC 3 sensors, 2 threshold values digitally adjustable -58 °F to 932 °F 24 - 240 V AC/DC 2 x 1 CO + 1 NO, width 45 mm spring-loaded terminal !!!phased-out product!!! the preferred successor is 3RS2600-2BW30+3RS2900-2AW30
product brand nameSIRIUS
product designationTemperature monitoring relay
product type designation3RS20
General technical data
product functiontemperature monitoring
reference code according to IEC 81346-2K
measurable Fahrenheit temperature
● initial value-58 °F
● full-scale value932 °F
Substance Prohibitance (Date)05/01/2012
product function
● error memoryYes
● external resetYes
design of the sensor connectablePT100/1000, KTY83/84, NTC (resistance sensors)
Control circuit/ Control
control supply voltage 1 at AC
● at 50 Hz24 ... 240 V
● at 60 Hz24 ... 240 V
control supply voltage 1
● at DC24 ... 240 V
supply voltage frequency for auxiliary and control circuit50 ... 60 Hz
number of measuring circuits1
Auxiliary circuit
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts1
number of CO contacts for auxiliary contacts2
Connections/ Terminals
type of electrical connection
● for auxiliary and control circuitspring-loaded terminals
type of electrical connection plug-in socketYes
Installation/ mounting/ dimensions
fastening methodscrew and snap-on mounting onto 35 mm standard mounting rail
height108 mm
width45 mm
depth91 mm
Ambient conditions
ambient temperature
● during operation-25 ... +60 °C
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of ConformityTest Certificates

CCC

Confirmation

UL

EAC

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

other

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Derating
last modified:5/1/2021
Date
5/13/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RS2041-2GW50
Product Descriptiontemperature monitoring relay Pt100/1000 KTY83/84, NTC 3 sensors, 2 threshold values digitally adjustable -58 °F to 932 °F 24 - 240 V AC/DC 2 x 1 CO + 1 NO, width 45 mm spring-loaded terminal !!!phased-out product!!! the preferred successor is 3RS2600-2BW30+3RS2900-2AW30
Product familyRelays, digitally adjustable for up to 3 sensors
Product Lifecycle (PLM)PM400:Phase Out Started
PLM Effective DateProduct phase-out since: 01.10.2020
Price data
Region Specific PriceGroup / Headquarter Price Group41H / 41H
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works15 Day/Days
Net Weight (kg)0,299 Kg
Packaging Dimension53,00 x 111,50 x 105,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209626355
UPC754554871264
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group5882
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead titanium zirconium oxide

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Dicyclohexyl phthalate (DCHP)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-18-10
eClass7.127-37-18-10
eClass827-37-18-10
eClass927-37-18-10
eClass9.127-37-18-10
ETIM5EC001446
ETIM6EC001446
ETIM7EC001446
ETIM8EC001446
IDEA45282
UNSPSC1439-12-22-29
UNSPSC1539-12-22-29

ETIM data

ETIM: EC001446 - Temperature monitoring relay

Value Unit
Resistance measuring range (EF011955) -Ohm
Temperature measuring range (EF009788) -°C
Type of electric connection (EF003961) Spring clamp connection
Rated control supply voltage Us at AC 50HZ (EF003978) ['24', '240']V
Rated control supply voltage Us at AC 60HZ (EF003979) ['24', '240']V
Rated control supply voltage Us at DC (EF003980) ['24', '240']V
Voltage type for actuating (EF008242) AC/DC
With detachable clamps (EF003340) true
Number of measuring circuits (EF003425) 1
Error registration possible (EF003423) true
External reset possible (EF003426) true
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 1
Number of contacts as change-over contact (EF008257) 2
Width (EF000008) 45.0mm
Height (EF000040) 108.0mm
Depth (EF000049) 91.0mm
