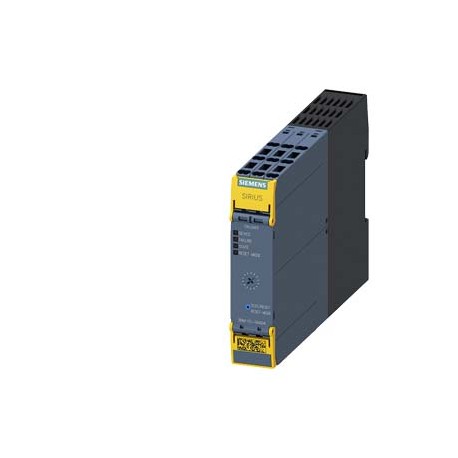

3RM1107-3AA04 SIEMENS Fail-safe direct starter, 3RM1, 500 V, 0.55 3 kW, 1.6 7 A, 24 V DC, screw/spring-type ..
3RM1107-3AA04
11073
SIEMENS
1 Pcs.
Automation > Motor starter/Motor starter combination
Contactors for switching motors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing integrated safety functions alongside standard motor switching, the Siemens 3RM1107-3AA04 fail-safe direct starter manages motor operations while fulfilling machine safety requirements. Hybrid fail-safe starters combine solid-state relays and mechanical contacts to achieve safe disconnection in industrial automation tasks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product category: Motor starter
- product designation: Fail-safe direct starter
- design of the product: With electronic overload protection and safety-related disconnection
- product type designation: 3RM1
- General technical data trip class: CLASS 10A
- equipment variant according to IEC 60947-4-2: 3
- product function: fail-safe direct starter
- ● intrinsic device protection: Yes
- ● for power supply reverse polarity protection: Yes
- suitability for operation device connector 3ZY12: Yes
- insulation voltage rated value: 500 V
- overvoltage category: III
- surge voltage resistance rated value: 6 kV
- ● between main and auxiliary circuit: 500 V
- ● between control and auxiliary circuit: 250 V
- shock resistance: 6g / 11 ms
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3RM1107-3AA04 | |||||||||||||||||||||||||||||||||
| Product Description | Fail-safe direct starter, 3RM1, 500 V, 0.55 - 3 kW, 1.6 - 7 A, 24 V DC, screw/spring-type terminals | |||||||||||||||||||||||||||||||||
| Product family | SIRIUS 3RM1 motor starters | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41D / 41D | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 120 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,310 Kg | |||||||||||||||||||||||||||||||||
| Packaging Dimension | 36,00 x 109,00 x 167,00 | |||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | 4011209935952 | |||||||||||||||||||||||||||||||||
| UPC | 887621775636 | |||||||||||||||||||||||||||||||||
| Commodity Code | 85371098 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||
| Product Group | 3762 | |||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2017 | |||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC001037 - Motor starter/Motor starter combination
| Value | Unit | |
|---|---|---|
| Rated operation current at AC-3, 400 V (EF009602) | - | A |
| Type of motor starter (EF009598) | - | |
| Supporting protocol for PROFINET IO (EF007525) | - | |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | - | |
| Coordination class according to IEC 60947-4-3 (EF012390) | - | |
| Ambient temperature, upper operating limit (EF009603) | - | °C |
| Rated power, 575 V, 60 Hz, 3-phase (EF009601) | - | kW |
| Supporting protocol for INTERBUS-Safety (EF006662) | - | |
| Supporting protocol for LON (EF003017) | - | |
| Temperature compensated overload protection (EF009604) | - | |
| Rated conditional short-circuit current, type 2, 230 V (EF009606) | - | A |
| Supporting protocol for PROFIsafe (EF007526) | - | |
| Degree of protection (NEMA) (EF011959) | - | |
| Rated operation power at AC-3, 230 V, 3-phase (EF009599) | - | kW |
| Supporting protocol for Data-Highway (EF003058) | - | |
| Supporting protocol for PROFIBUS (EF003052) | - | |
| Supporting protocol for ASI (EF003051) | - | |
| Supporting protocol for PROFINET CBA (EF007524) | - | |
| Supporting protocol for TCP/IP (EF003050) | - | |
| Number of indicator lights (EF001965) | - | |
| Number of auxiliary contacts as normally open contact (EF001376) | - | |
| Supporting protocol for DeviceNet (EF003059) | - | |
| Supporting protocol for SUCONET (EF003060) | - | |
| Supporting protocol for SafetyBUS p (EF007527) | - | |
| Supporting protocol for INTERBUS (EF003054) | - | |
| Supporting protocol for SERCOS (EF006657) | - | |
| Rated conditional short-circuit current, type 2, 400 V (EF009605) | - | A |
| Number of auxiliary contacts as normally closed contact (EF001377) | - | |
| Supporting protocol for other bus systems (EF003062) | - | |
| Supporting protocol for Foundation Fieldbus (EF007522) | - | |
| Rated conditional short-circuit current, type 1, 480 Y/277 V (EF009607) | - | A |
| Rated conditional short-circuit current, type 1, 600 Y/347 V (EF009608) | - | A |
| Supporting protocol for Modbus (EF003057) | - | |
| Suitable for emergency stop (EF001433) | - | |
| Supporting protocol for CAN (EF003053) | - | |
| External reset possible (EF003426) | - | |
| Rail mounting possible (EF003972) | - | |
| Supporting protocol for DeviceNet Safety (EF007520) | - | |
| Supporting protocol for EtherNet/IP (EF007521) | - | |
| With short-circuit release (EF006691) | false | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '-'] | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '-'] | V |
| Rated control supply voltage Us at DC (EF003980) | ['24', '24'] | V |
| Voltage type for actuating (EF008242) | DC | |
| Rated operation power at AC-3, 400 V (EF001364) | 3.0 | kW |
| Rated power, 460 V, 60 Hz, 3-phase (EF009600) | 2.20649625 | kW |
| Rated operation current Ie (EF001443) | 7 | A |
| Overload release current setting (EF002336) | ['7', '7'] | A |
| Release class (EF006668) | CLASS 10 A | |
| Type of electrical connection of main circuit (EF006819) | Screw connection | |
| Type of electrical connection for auxiliary- and control current circuit (EF006979) | Other | |
| With transformer (EF000278) | false | |
| Number of command positions (EF001372) | 0 | |
| With fuse (EF006693) | false | |
| Degree of protection (IP) (EF005474) | IP20 | |
| Width (EF000008) | 22.5 | mm |
| Height (EF000040) | 100.0 | mm |
| Depth (EF000049) | 141.6 | mm |
