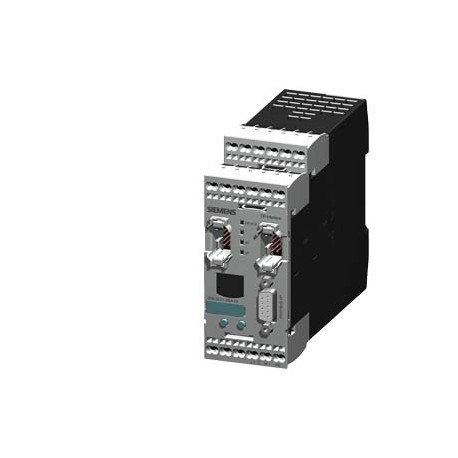

SIEMENS 3RK3511-2BA10 3RK3511-2BA10 SIEMENS SIRIUS, interface module DP interface, for modular safety system 3RK3 PROFIBUS DP inte.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3RK3511-2BA10 SIEMENS SIRIUS, interface module DP interface, for modular safety system 3RK3 PROFIBUS DP inte..

3RK3511-2BA10

35112

SIEMENS

1 Pcs.

SIRIUS, interface module DP interface, for modular safety system 3RK3 PROFIBUS DP interface 12 Mbps, RS 485 45 mm overall width spring-type terminal can be parameterized via Safety ES without connection cable SIRIUS Safety relays, dp-interface interface module, for modular safety system.

Automation > Device for monitoring of safety-related circuits
Programmable safety relays MSS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

SIRIUS, interface module DP interface, for modular safety system 3RK3 PROFIBUS DP interface 12 Mbps, RS 485 45 mm overall width spring-type terminal can be parameterized via Safety ES without connection cable
product brand nameSIRIUS
product categoryModular safety system
product designationInterface module
design of the productDP-Interface
General technical data
protection class IPIP20
shock resistance15g / 11 ms
degree of pollution2
certificate of suitability UL approvalYes
vibration resistance according to IEC 60068-2-65 ... 500 Hz: 0.75 mm
reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750K
reference code according to EN 61346-2K
Communication/ Protocol
protocol is supported
● PROFIBUS DP protocolYes
Control circuit/ Control
type of voltageDC
inrush current peak at 24 VA70
duration of inrush current peak at 24 Vms1
Installation/ mounting/ dimensions
fastening methodstandard rail
mounting positionvertical
widthmm45
heightmm113
depthmm124
Connections/ Terminals
type of electrical connectionspring-loaded terminals
connectable conductor cross-section for auxiliary contacts
● solid or strandedmm²0.25 ... 1.5
● finely stranded
— with core end processingmm²0.25 ... 1.5
— without core end processingmm²0.25 ... 1.5
type of connectable conductor cross-sections for auxiliary contacts
● solid2x (0.25 ... 1.5 mm²)
● finely stranded
— with core end processing2x (0.25 ... 1.5 mm²)
— without core end processing2x (0.25 ... 1.5 mm²)
AWG number as coded connectable conductor cross section
● for auxiliary contacts20 ... 16
type of connectable conductor cross-sections at AWG cables
● for auxiliary contacts2x (20 ... 16)
Electromagnetic compatibility
conducted interference due to burst according to IEC 61000-4-42 kV (power ports)
conducted interference due to conductor-earth surge according to IEC 61000-4-5Test Level 0.5 KV / 1 KV
Ambient conditions
installation altitude at height above sea level maximumm2 000
ambient temperature
● during operation°C-20 ... +60
● during storage°C-40 ... +85
● during transport°C-40 ... +85
relative humidity during operation%10 ... 95
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCFunctional Safety/Safety of Machinery

CSA

Confirmation

UL

EAC

RCM

Miscellaneous

Declaration of ConformityTest Certificatesother

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Type Test Certificates/Test Report

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/21/2020
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK3511-2BA10
Product DescriptionSIRIUS, interface module DP interface, for modular safety system 3RK3 PROFIBUS DP interface 12 Mbps, RS 485 45 mm overall width spring-type terminal can be parameterized via Safety ES without connection cable
Product family3RK35 interface modules
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42B / 42B
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,316 Kg
Packaging Dimension52,50 x 133,00 x 133,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209684355
UPC754554962016
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group5358
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead titanium zirconium oxide

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-18-19
eClass7.127-37-18-19
eClass827-37-18-19
eClass927-37-18-19
eClass9.127-37-18-19
ETIM5EC001449
ETIM6EC001449
ETIM7EC001449
ETIM8EC001449
IDEA45166
UNSPSC1439-12-15-21
UNSPSC1539-12-22-05

ETIM data

ETIM: EC001449 - Device for monitoring of safety-related circuits

Value Unit
Category according to EN 954-1 (EF006782) -
Performance level according to EN ISO 13849-1 (EF007399) -
Model (EF000010) -
SIL according to IEC 61508 (EF009889) -
Release-delay (EF001129) -s
Suitable for monitoring of position switches (EF007270) -
Suitable for monitoring of emergency-stop circuits (EF007268) -
Suitable for monitoring of valves (EF007272) -
Suitable for monitoring of optoelectronic protection equipment (EF007269) -
Suitable for monitoring of tactile sensors (EF007271) -
Suitable for monitoring of magnetic switches (EF007266) -
Suitable for monitoring of proximity switches (EF007267) -
Type of electric connection (EF003961) Spring clamp connection
Rail mounting possible (EF003972) FALSE
Rated control supply voltage Us at AC 50HZ (EF003978) ['-', '-']V
Rated control supply voltage Us at AC 60HZ (EF003979) ['-', '-']V
Rated control supply voltage Us at DC (EF003980) ['24', '24']V
Voltage type for actuating (EF008242) DC
With detachable clamps (EF003340) true
Evaluation inputs (EF008245) -
With start input (EF003342) -
With muting function (EF004057) -
With feedback circuit (EF003343) -
Number of outputs, safety related, undelayed, with contact (EF003344) -
Number of outputs, safety related, delayed, with contact (EF003345) -
Number of outputs, safety related, undelayed, semiconductors (EF003346) -
Number of outputs, safety related, delayed, semiconductors (EF003347) -
Number of outputs, signalling function, undelayed, with contact (EF003348) -
Number of outputs, signalling function, delayed, with contact (EF003349) -
Number of outputs, signalling function, undelayed, semiconductors (EF003350) -
Number of outputs, signalling function, delayed, semiconductors (EF003351) -
Type of safety according to IEC 61496-1 (EF004105) -
Stop category according to IEC 60204 (EF007498) Other
With approval for TÜV (EF004144) true
With approval for BG BIA (EF004145) -
With approval according to UL (EF001783) true
Width (EF000008) 45.0mm
Height (EF000040) 113.0mm
Depth (EF000049) 124.0mm
