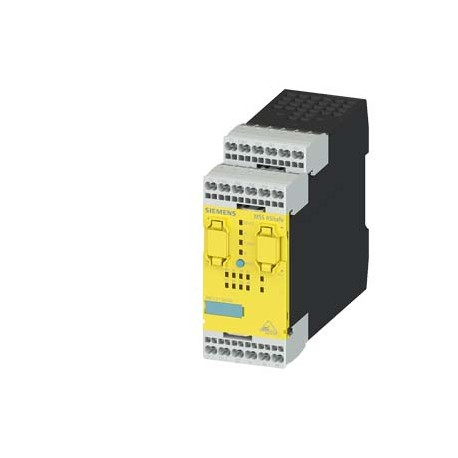

3RK3121-2AC00 SIEMENS SIRIUS, Central unit 3RK3 ASIsafe Basic for modular Safety system 3RK3 1/2F-DI, 6DI, 1..
3RK3121-2AC00
31212
SIEMENS
1 Pcs.
Automation > Device for monitoring of safety-related circuits
Programmable safety relays MSS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3RK3121-2AC00 | |||||||||||||||||||||||||||||||||||||||
| Product Description | SIRIUS, Central unit 3RK3 ASIsafe Basic for modular Safety system 3RK3 1/2F-DI, 6DI, 1F-RO, 1F-DO,24 V DC Monitoring of ASI slaves Control of 8 safe outputs on AS-Interface bus parameterizable using software Safety ES 45 mm overall width Spring-type terminal Up to SIL3 (IEC 61508) Up to Performance Level E (ISO 13849-1) No extension module connectable | |||||||||||||||||||||||||||||||||||||||
| Product family | 3RK31 central units | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM400:Phase Out Started | |||||||||||||||||||||||||||||||||||||||
| PLM Effective Date | Product phase-out since: 01.10.2021 | |||||||||||||||||||||||||||||||||||||||
| Notes | Sucessor:successor 3SK2, S7-1200F or ET200SP when AS-i is used | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 42B / 42B | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : EAR99 | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 15 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,340 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 52,50 x 133,00 x 133,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209913226 | |||||||||||||||||||||||||||||||||||||||
| UPC | 887621034313 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85371098 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5358 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 28.05.2009 | |||||||||||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC001449 - Device for monitoring of safety-related circuits
| Value | Unit | |
|---|---|---|
| Release-delay (EF001129) | - | s |
| Type of safety according to IEC 61496-1 (EF004105) | - | |
| Performance level according to EN ISO 13849-1 (EF007399) | - | |
| Evaluation inputs (EF008245) | - | |
| SIL according to IEC 61508 (EF009889) | - | |
| Model (EF000010) | - | |
| Suitable for monitoring of position switches (EF007270) | true | |
| Suitable for monitoring of emergency-stop circuits (EF007268) | true | |
| Suitable for monitoring of valves (EF007272) | true | |
| Suitable for monitoring of optoelectronic protection equipment (EF007269) | true | |
| Suitable for monitoring of tactile sensors (EF007271) | - | |
| Suitable for monitoring of magnetic switches (EF007266) | - | |
| Suitable for monitoring of proximity switches (EF007267) | true | |
| Type of electric connection (EF003961) | Spring clamp connection | |
| Rail mounting possible (EF003972) | FALSE | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '-'] | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '-'] | V |
| Rated control supply voltage Us at DC (EF003980) | ['24', '24'] | V |
| Voltage type for actuating (EF008242) | DC | |
| With detachable clamps (EF003340) | true | |
| With start input (EF003342) | - | |
| With muting function (EF004057) | false | |
| With feedback circuit (EF003343) | - | |
| Number of outputs, safety related, undelayed, with contact (EF003344) | 0 | |
| Number of outputs, safety related, delayed, with contact (EF003345) | - | |
| Number of outputs, safety related, undelayed, semiconductors (EF003346) | 1 | |
| Number of outputs, safety related, delayed, semiconductors (EF003347) | - | |
| Number of outputs, signalling function, undelayed, with contact (EF003348) | - | |
| Number of outputs, signalling function, delayed, with contact (EF003349) | - | |
| Number of outputs, signalling function, undelayed, semiconductors (EF003350) | - | |
| Number of outputs, signalling function, delayed, semiconductors (EF003351) | - | |
| Category according to EN 954-1 (EF006782) | 4 | |
| Stop category according to IEC 60204 (EF007498) | 0 + 1 | |
| With approval for TÜV (EF004144) | true | |
| With approval for BG BIA (EF004145) | - | |
| With approval according to UL (EF001783) | true | |
| Width (EF000008) | 45.0 | mm |
| Height (EF000040) | 111.0 | mm |
| Depth (EF000049) | 124.0 | mm |
