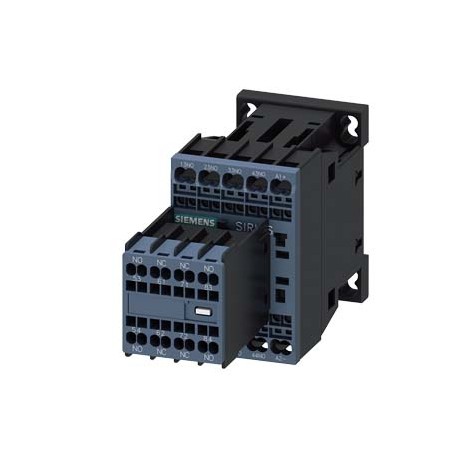

3RH2362-2BB40 SIEMENS Contactor relay, 6 NO + 2 NC, 24 V DC, Size S00, spring-type terminal, Removable auxil..
3RH2362-2BB40
23622
SIEMENS
1 Pcs.
Contactor relay, 6 NO + 2 NC, 24 V DC, Size S00, spring-type terminal, Removable auxiliary switch
Automation > Contactor relay
Contactor relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for complex machine control panels, the Siemens 3RH2362-2BB40 contactor relay provides high-density auxiliary switching capabilities to manage multi-signal automation sequences.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- product designation: Auxiliary contactor
- product type designation: 3RH2
- General technical data size of contactor: S00
- product extension auxiliary switch: No
- degree of pollution: 3
- surge voltage resistance rated value: 6 kV
- ● at AC: 7,3g / 5 ms, 4,7g / 10 ms
- ● at DC: 10g / 5 ms, 5g / 10 ms
- ● at AC: 11,4g / 5 ms, 7,3g / 10 ms
- ● at DC: 15g / 5 ms, 8g / 10 ms
- ● of contactor typical: 10 000 000
- reference code according to IEC 81346-2: K
- Substance Prohibitance (Date): 10/01/2009
- ● during operation: -25 ... +60 °C
- ● during storage: -55 ... +80 °C
- relative humidity minimum: 10 %
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3RH2362-2BB40 | |||||||||||||||||||||||||||||||||||||||
| Product Description | Contactor relay, 6 NO + 2 NC, 24 V DC, Size S00, spring-type terminal, Removable auxiliary switch | |||||||||||||||||||||||||||||||||||||||
| Product family | SIRIUS 3RH2 contactor relays, 4- and 8-pole | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41A / 41A | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | LBP----- | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 80 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,351 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 50,00 x 73,50 x 124,50 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209848665 | |||||||||||||||||||||||||||||||||||||||
| UPC | 662643909616 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85364900 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5331 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 | |||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000196 - Contactor relay
| Value | Unit | |
|---|---|---|
| Mounting method (EF000003) | - | |
| Manual operation possible (EF005881) | - | |
| Interface (EF000594) | - | |
| With LED indication (EF005950) | - | |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] | V |
| Voltage type for actuating (EF008242) | DC | |
| Rated operation current Ie, 400 V (EF001378) | 3 | A |
| Connection type auxiliary circuit (EF006820) | Spring clamp connection | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 | |
| Number of auxiliary contacts as normally open contact (EF001376) | 6 | |
| Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) | - | |
| Number of auxiliary contacts as normally open contact, leading (EF007282) | - | |
| Number of auxiliary contacts as change-over contact (EF003531) | - | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - | V |
