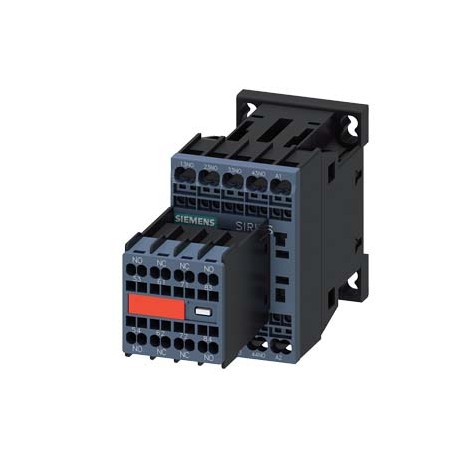

3RH2262-2BB40 SIEMENS Contactor relay, 6 NO + 2 NC, 24 V DC, Size S00, spring-type terminal, Captive auxilia..
3RH2262-2BB40
22622
SIEMENS
1 Pcs.
Automation > Contactor relay
Contactor relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Siemens 3RH2262-2BB40 is a specialized contactor relay designed for managing control logic, interlocking safety chains, and multiplying auxiliary contacts in automated manufacturing environments. Such hardware forms the backbone of reliable signal processing in heavy industrial distribution boards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: Auxiliary contactor
- product type designation: 3RH2
- General technical data size of contactor: S00
- product extension auxiliary switch: No
- degree of pollution: 3
- surge voltage resistance rated value: 6 kV
- ● at DC: 15g / 5 ms, 8g / 10 ms
- ● of contactor typical: 10 000 000
- reference code according to IEC 81346-2: K
- Substance Prohibitance (Date): 10/01/2009
- ● during operation: -25 ... +60 °C
- ● during storage: -55 ... +80 °C
- relative humidity minimum: 10 %
- ● at AC: 10 000 1/h
- ● at DC: 10 000 1/h
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3RH2262-2BB40 | |||||||||||||||||||||||||||||||||||||||
| Product Description | contactor relay, 6 NO + 2 NC, 24 V DC, size S00, spring-loaded terminal, captive auxiliary switch | |||||||||||||||||||||||||||||||||||||||
| Product family | SIRIUS 3RH2 contactor relays, 4- and 8-pole | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41A / 41A | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | LBP----- | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 80 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,348 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 50,00 x 73,50 x 124,50 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209848672 | |||||||||||||||||||||||||||||||||||||||
| UPC | 662643909548 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85364900 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5331 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 | |||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000196 - Contactor relay
| Value | Unit | |
|---|---|---|
| Interface (EF000594) | - | |
| With LED indication (EF005950) | - | |
| Manual operation possible (EF005881) | - | |
| Mounting method (EF000003) | - | |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] | V |
| Voltage type for actuating (EF008242) | DC | |
| Rated operation current Ie, 400 V (EF001378) | 3 | A |
| Connection type auxiliary circuit (EF006820) | Spring clamp connection | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 | |
| Number of auxiliary contacts as normally open contact (EF001376) | 6 | |
| Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) | - | |
| Number of auxiliary contacts as normally open contact, leading (EF007282) | - | |
| Number of auxiliary contacts as change-over contact (EF003531) | - | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - | V |
