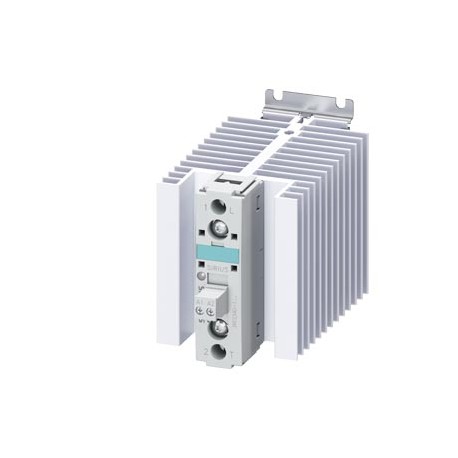

SIEMENS 3RF2340-1AA45 3RF2340-1AA45 SIEMENS Solid-state contactor 1-phase 3RF2 AC 51 / 40 A / 40 °C 48-600 V / 4-30 V DC screw ter.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3RF2340-1AA45 SIEMENS Solid-state contactor 1-phase 3RF2 AC 51 / 40 A / 40 °C 48-600 V / 4-30 V DC screw ter..

3RF2340-1AA45

23401

SIEMENS

1 Pcs.

Solid-state contactor 1-phase 3RF2 AC 51 / 40 A / 40 °C 48-600 V / 4-30 V DC screw terminal Blocking voltage 1200 V

Automation > Power contactor, AC switching
Contactors for switching motors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

Solid-state contactor 1-phase 3RF2 AC 51 / 40 A / 40 °C 48-600 V / 4-30 V DC screw terminal Blocking voltage 1200 V
product brand nameSIRIUS
product designationsolid-state contactor
design of the productsingle-phase
product type designation3RF23
manufacturer's article number
● _1 of the accessories that can be ordered3RF2900-3PA88
● _3 of the accessories that can be ordered3RF2900-0EA18
● _4 of the accessories that can be ordered3RF2950-0GA16
product designation
● _1 of the accessories that can be orderedterminal cover
● _3 of the accessories that can be orderedconverter
● _4 of the accessories that can be orderedload monitoring
General technical data
product functionzero-point switching
power loss [W] for rated value of the current without load current share typical0.6 W
insulation voltage rated value600 V
degree of pollution3
type of voltage of the control supply voltageDC
surge voltage resistance of main circuit rated value6 kV
shock resistance according to IEC 60068-2-2715g / 11 ms
vibration resistance according to IEC 60068-2-62g
reference code according to IEC 81346-2Q
Substance Prohibitance (Date)05/28/2009
Main circuit
number of poles for main current circuit1
number of NO contacts for main contacts1
number of NC contacts for main contacts0
operating voltage at AC
● at 50 Hz rated value48 ... 600 V
● at 60 Hz rated value48 ... 600 V
operating frequency rated value50 ... 60 Hz
operating range relative to the operating voltage at AC
● at 50 Hz40 ... 660 V
● at 60 Hz40 ... 660 V
operational current
● at AC-51 rated value40 A
● at AC-51 according to IEC 60947-4-333 A
● according to UL 508 rated value36 A
operational current minimum500 mA
rate of voltage rise at the thyristor for main contacts maximum permissible1 000 V/µs
blocking voltage at the thyristor for main contacts maximum permissible1 200 V
reverse current of the thyristor10 mA
derating temperature40 °C
surge current resistance rated value1 200 A
I2t value maximum7 200 A²·s
Control circuit/ Control
type of voltage of the control supply voltageDC
control supply voltage 1
● at DC rated value30 V
● at DC4 ... 30 V
control supply voltage
● at DC initial value for signal <1> detection4 V
● at DC full-scale value for signal<0> recognition1 V
control current at minimum control supply voltage
● at DC18 mA
control current at DC rated value20 mA
ON-delay time1 ms; additionally max. one half-wave
OFF-delay time1 ms; additionally max. one half-wave
Auxiliary circuit
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts0
Installation/ mounting/ dimensions
fastening methodscrew fixing and snap-on mounting on standard mounting rail 35 mm according to IEC 60715
● side-by-side mountingYes
height100 mm
width67 mm
depth141 mm
Connections/ Terminals
type of electrical connection
● for main current circuitscrew-type terminals
● for auxiliary and control circuitscrew-type terminals
type of connectable conductor cross-sections
● for main contacts
— solid2x (1.5 ... 2.5 mm²), 2x (2.5 ... 6 mm²)
— finely stranded with core end processing2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm²
● at AWG cables for main contacts2x (14 ... 10)
connectable conductor cross-section for main contacts
● solid or stranded1.5 ... 6 mm²
● finely stranded with core end processing1 ... 10 mm²
type of connectable conductor cross-sections
● for auxiliary and control contacts
— solid1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²)
— finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²)
— finely stranded without core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²)
● at AWG cables for auxiliary and control contacts1x (AWG 20 ... 12)
AWG number as coded connectable conductor cross section for main contacts10 ... 14
tightening torque
● for main contacts with screw-type terminals2 ... 2.5 N·m
● for auxiliary and control contacts with screw-type terminals0.5 ... 0.6 N·m
tightening torque [lbf·in]
● for main contacts with screw-type terminals18 ... 22 lbf·in
● for auxiliary and control contacts with screw-type terminals4.5 ... 5.3 lbf·in
design of the thread of the connection screw
● for main contactsM4
● of the auxiliary and control contactsM3
stripped length of the cable
● for main contacts7 mm
● for auxiliary and control contacts7 mm
Safety related data
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
Ambient conditions
installation altitude at height above sea level maximum1 000 m
ambient temperature
● during operation-25 ... +60 °C
● during storage-55 ... +80 °C
Electromagnetic compatibility
conducted interference
● due to burst according to IEC 61000-4-42 kV / 5 kHz behavior criterion 2
● due to conductor-earth surge according to IEC 61000-4-52 kV behavior criterion 2
● due to conductor-conductor surge according to IEC 61000-4-51 kV behavior criterion 2
● due to high-frequency radiation according to IEC 61000-4-6140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1
field-based interference according to IEC 61000-4-380 MHz ... 1 GHz 10 V/m, behavior criterion 1
electrostatic discharge according to IEC 61000-4-24 kV contact discharging / 8 kV air discharging, behavior criterion 2
conducted HF interference emissions according to CISPR11Class A for industrial environment
field-bound HF interference emission according to CISPR11Class B for the domestic, business and commercial environments
Short-circuit protection, design of the fuse link
manufacturer's article number
● of gS fuse for semiconductor protection at NH design usable3NE1802-0
● of full range R fuse link for semiconductor protection at cylindrical design usable5SE1350
● of back-up R fuse link for semiconductor protection at NH design usable3NE8017-1
● of back-up R fuse link for semiconductor protection at cylindrical design 14 x 51 mm usable3NC1450
● of back-up R fuse link for semiconductor protection at cylindrical design 22 x 58 mm usable3NC2280
manufacturer's article number of the gG fuse
● at NH design usable3NA6812; These fuses have a smaller rated current than the semiconductor relays
● at cylindrical design 14 x 51 mm usable3NW6112-1; These fuses have a smaller rated current than the semiconductor relays
● at cylindrical design 22 x 58 mm usable3NW6212-1; These fuses have a smaller rated current than the semiconductor relays
manufacturer's article number
● of DIAZED fuse usable5SB321
● of NEOZED fuse usable5SE2335; These fuses have a smaller rated current than the semiconductor relays
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

CSA

Confirmation

UL

EAC

RCM

EC/EU-Declaration of Conformity

Test CertificatesotherRailway

Type Test Certificates/Test Report

Special Test Certificate

Confirmation

Household and similar appliances

Vibration and Shock

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/26/2022
Date
5/11/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RF2340-1AA45
Product DescriptionSolid-state contactor 1-phase 3RF2 AC 51 / 40 A / 40 °C 48-600 V / 4-30 V DC screw terminal Blocking voltage 1200 V
Product familySIRIUS 3RF2 solid-state relays and solid-state contactors
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41C / 41C
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works40 Day/Days
Net Weight (kg)0,440 Kg
Packaging Dimension76,00 x 109,50 x 135,50
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209652620
UPC754554925899
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group3725
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 28.05.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Dibutylbis(pentane-2,4-dionato-O,O')tin

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-10-14
eClass7.127-37-10-14
eClass827-37-10-14
eClass927-37-10-14
eClass9.127-37-10-14
ETIM6EC002055
ETIM7EC002055
ETIM8EC002055
IDEA45365
UNSPSC1432-12-17-02
UNSPSC1539-12-23-30

ETIM data

ETIM: EC000066 - Power contactor, AC switching

Value Unit
Rated operation power NEMA (EF011960) -kW
Rated control supply voltage Us at AC 50HZ (EF003978) ['-', '-']V
Rated control supply voltage Us at AC 60HZ (EF003979) ['-', '-']V
Rated control supply voltage Us at DC (EF003980) ['4', '30']V
Voltage type for actuating (EF008242) DC
Rated operation current Ie at AC-1, 400 V (EF001393) 40A
Rated operation current Ie at AC-3, 400 V (EF001392) -A
Rated operation current Ie at AC-4, 400 V (EF008495) -A
Modular version (EF001126) true
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as normally closed contact (EF001377) 0
Type of electrical connection of main circuit (EF006819) Screw connection
Number of normally closed contacts as main contact (EF001375) 0
Number of main contacts as normally open contact (EF001374) 1
Rated operation power at AC-4, 400 V (EF008496) -kW
Rated operation power at AC-3, 400 V (EF001364) -kW
