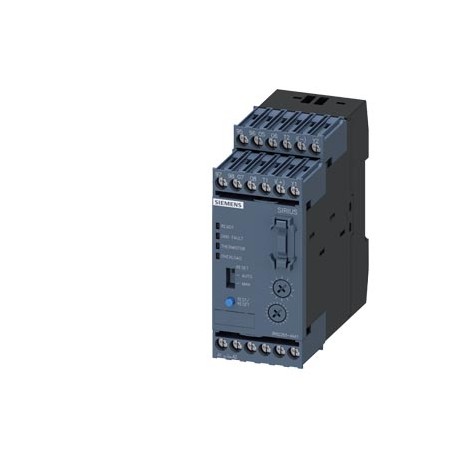

3RB2283-4AA1 SIEMENS Evaluation unit for full motor protection (monostable) Size S00...S12, class 5...30 Sta..
3RB2283-4AA1
22834
SIEMENS
1 Pcs.
Automation > Electronic overload relay
Thermal relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Siemens 3RB2283-4AA1 evaluation unit for full motor protection (monostable) functions as a critical monitoring component within industrial control panels, designed to process sensor signals and safeguard machinery against thermal overloads and fault conditions. Devices of this type integrate with compatible contactors to interrupt power circuits when abnormal operating parameters occur, thereby preventing costly equipment damage in continuous manufacturing processes.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product Article Number (Market Facing Number): 3RB2283-4AA1
- Product family: Ordering Data Overview
- Product Lifecycle (PLM): PM400:Announcement of product phase-out
- PLM Effective Date: Product phase-out since: 01.10.2023
- Delivery information Export Control Regulations: AL : N / ECCN : N
- Standard lead time ex-works: 3 Day/Days
- Net Weight (kg): 0,276 Kg
- Packaging Dimension: 115,00 x 130,00 x 55,00
- Package size unit of measure: MM
- Quantity Unit: 1 Piece
- Packaging Quantity: 1
- Additional Product Information EAN: 4011209641983
- UPC: Not available
- Commodity Code: 85364900
- LKZ_FDB/ CatalogID: CC-IC10
- Product Group: 5812
More info
▲| Product | |||||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3RB2283-4AA1 | ||||||||||||||||||||||||||||||||||||||||||
| Product Description | Evaluation unit for full motor protection (monostable) Size S00...S12, class 5...30 Stand-alone installation Main circuit: -- Auxiliary circuit: Screw terminal Manual-Automatic-Reset | ||||||||||||||||||||||||||||||||||||||||||
| Product family | Ordering Data Overview | ||||||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM400:Announcement of product phase-out | ||||||||||||||||||||||||||||||||||||||||||
| PLM Effective Date | Product phase-out since: 01.10.2023 | ||||||||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41G / 41G | ||||||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 3 Day/Days | ||||||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,276 Kg | ||||||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 115,00 x 130,00 x 55,00 | ||||||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209641983 | ||||||||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85364900 | ||||||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||||||||
| Product Group | 5812 | ||||||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | ||||||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 28.05.2009 | ||||||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||||||||
| SCIP number | |||||||||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||
