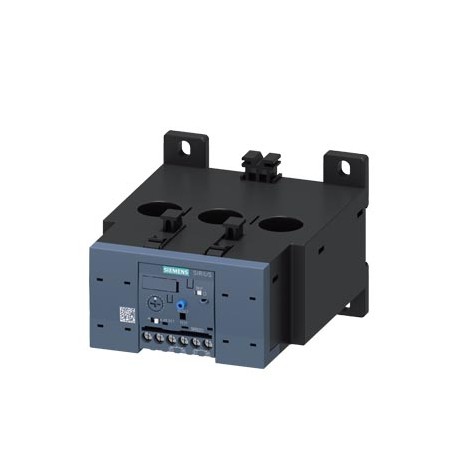

3RB2056-1FX2 SIEMENS Overload relay 50...200 A for motor protection Size S6, Class 10E Contactor mounting/st..
3RB2056-1FX2
20561
SIEMENS
1 Pcs.
Automation > Electronic overload relay
Thermal relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A 3RB2056-1FX2 SIEMENS Overload relay 50...200 A for motor protection Size S6, Class 10E Contactor mounting/st.. produced by Siemens serves as an essential protective device for heavy-duty electric motors, guarding against phase loss and thermal overloads. Solid-state design ensures rapid response times and high reliability in demanding industrial electrical architectures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: solid-state overload relay
- product type designation: 3RB2
- General technical data size of overload relay: S6
- size of contactor can be combined company-specific: S6
- surge voltage resistance rated value: 8 kV
- ● between auxiliary and auxiliary circuit: 300 V
- ● between main and auxiliary circuit: 600 V
- ● between main and auxiliary circuit: 690 V
- shock resistance: 15g / 11 ms
- ● according to IEC 60068-2-27: 15g / 11 ms
- vibration resistance: 1-6 Hz, 15 mm; 6-500 Hz, 20 m/s²; 10 cycles
- thermal current: 200 A
- type of protection according to ATEX directive 2014/34/EU: Ex II (2) G [Ex e] [Ex d] [Ex px] ; Ex II (2) D [Ex t] [Ex p]
- reference code according to IEC 81346-2: F
- Substance Prohibitance (Date): 07/01/2006
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3RB2056-1FX2 | |||||||||||||||||||||||||||||||||||||||
| Product Description | Overload relay 50...200 A for motor protection Size S6, Class 10E Contactor mounting/stand-alone installation Main circuit: straight-through transformer Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset | |||||||||||||||||||||||||||||||||||||||
| Product family | 3RB20, 3RB21 for standard applications | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 41G / 41G | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | L-O----- | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 110 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,735 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 140,00 x 150,00 x 175,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209638334 | |||||||||||||||||||||||||||||||||||||||
| UPC | 662643524963 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85364900 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5808 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC001080 - Electronic overload relay
| Value | Unit | |
|---|---|---|
| Reset function input (EF011940) | - | |
| Reset function push-button (EF011942) | - | |
| Reset function automatic (EF011941) | - | |
| Mounting method (EF000003) | - | |
| Adjustable current range (EF008211) | ['50', '200'] | A |
| Type of electrical connection of main circuit (EF006819) | Through-feed current converter | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 | |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 | |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '-'] | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '-'] | V |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] | V |
| Release class (EF006668) | CLASS 10 | |
| Voltage type for actuating (EF008242) | - |
