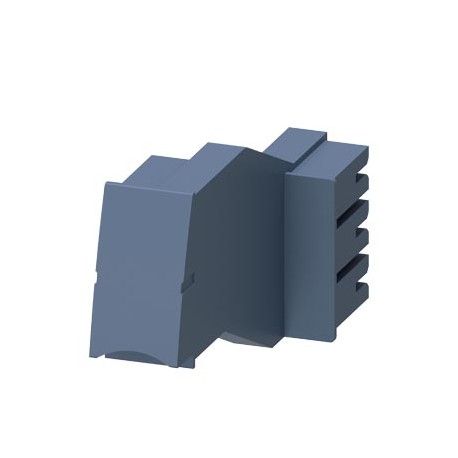

SIEMENS 3RA6890-1AB 3RA6890-1AB SIEMENS Extension connector between 2 extension blocks View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3RA6890-1AB SIEMENS Extension connector between 2 extension blocks

3RA6890-1AB

68901

SIEMENS

1 Pcs.

Extension connector between 2 extension blocks

Automation > Chassis part power circuit breaker
SIRIUS, compact starter

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ETIM: EC002043 - Chassis part power circuit breaker

Value Unit
Type of electrical connection of main circuit (EF006819) -
Rated current In (EF008250) 63A
Number of poles (EF001391) -
Version as busbar adapter (EF006965) false
Version as built-in device (EF006954) true


Extension connector between 2 extension blocks
General technical data
Product brand nameSIRIUS
Product designationexpansion plug for 3RA19
Protection class IPIP20
Degree of pollution3
Installation altitude at height above sea level maximumm2 000
Ambient temperature
● during transport°C-55 ... +80
● during storage°C-55 ... +80
● during operation°C-20 ... +60
Vibration resistancef = 4 to 5.8 Hz; d = 15 mm; f = 5.8 to 500 Hz; a = 2 m / s2 10 cycles
Shock resistanceSemi-sinusoidal a = 6 m/s2 at 10 ms; 3 pos. and 3 neg. Shock in all axes
Reference code acc. to DIN EN 61346-2X
Reference code acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750X
Main circuit
Operating current at AC at 400 V rated valueA63
Installation/ mounting/ dimensions
Mounting typeplug-in fixing
Widthmm23
Heightmm42
Depthmm33
Certificates/ approvals
General Product ApprovalEMCDeclaration of Conformity

CSA

UL

EAC

RCM

EC/EU-Declaration of Conformity

Miscellaneous

Test CertificatesShipping Approval

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

BV / Bureau Veritas

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

Shipping Approvalother

RMRS / Russian Maritime Register

Confirmation

Safety related data
Protection against electrical shockfinger-safe
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:06/27/2020


Product
Article Number (Market Facing Number)3RA6890-1AB
Product DescriptionExtension connector between 2 extension blocks
Product familyInfeed system for 3RA6
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group42F
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,039 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension52,00 x 78,00 x 49,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209725447
UPC662643360769
Commodity Code85366990
LKZ_FDB/ CatalogIDCC-IC10
Product Group5340
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-04-22
eClass7.127-37-04-22
eClass827-37-04-22
eClass927-37-04-22
eClass9.127-37-04-22
ETIM4EC002043
ETIM5EC002043
ETIM6EC002043
ETIM7EC002043
IDEA44604
UNSPSC1439-12-15-21
UNSPSC1539-12-14-32
