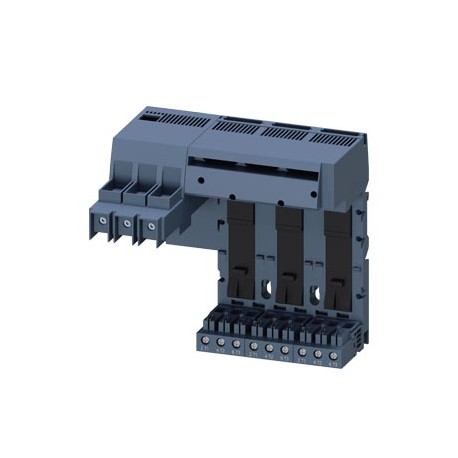

SIEMENS 3RA6813-8AC 3RA6813-8AC SIEMENS Infeed left Connection main circuit: input: Screw, Outgoing feeder: Spring 3 slots for c.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3RA6813-8AC SIEMENS Infeed left Connection main circuit: input: Screw, Outgoing feeder: Spring 3 slots for c..

3RA6813-8AC

68138

SIEMENS

1 Pcs.

Infeed left Connection main circuit: input: Screw, Outgoing feeder: Spring 3 slots for compact load feeders Connection terminal maximum 50 mm2 / 70 mm2

Automation > Chassis part power circuit breaker
SIRIUS, compact starter

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ETIM: EC002043 - Chassis part power circuit breaker

Value Unit
Rated current In (EF008250) 100A
Number of poles (EF001391) 3
Version as busbar adapter (EF006965) false
Version as built-in device (EF006954) true
Type of electrical connection of main circuit (EF006819) Spring clamp connection


Infeed left Connection main circuit: input: Screw, Outgoing feeder: Spring 3 slots for compact load feeders Connection terminal maximum 50 mm2 / 70 mm2
General technical data
Product brand nameSIRIUS
Product designationinfeed left
Protection class IPIP20
Degree of pollution3
Number of slots for compact feeder3
Installation altitude at height above sea level maximumm2 000
Ambient temperature
● during transport°C-55 ... +80
● during storage°C-55 ... +80
● during operation°C-20 ... +60
Vibration resistancef = 4 to 5.8 Hz; d = 15 mm; f = 5.8 to 500 Hz; a = 2 m / s2 10 cycles
Shock resistanceSemi-sinusoidal a = 6 m/s2 at 10 ms; 3 pos. and 3 neg. Shock in all axes
Reference code acc. to DIN EN 61346-2W
Reference code acc. to DIN 40719 extended according to IEC 204-2 acc. to IEC 750W
Main circuit
Operating current at AC at 400 V rated valueA100
Operating voltage at AC-3 rated value maximumV690
Installation/ mounting/ dimensions
Mounting typescrew and snap-on mounting
Widthmm205
Heightmm208
Depthmm155
Connections/ Terminals
Type of electrical connection for main current circuitspring-loaded terminals
Wire stripping length for main contactsmm17
Connectable conductor cross-section for supply for main contacts using the upper clamping point
● solidmm²2.5 ... 70
● strandedmm²2.5 ... 70
● finely stranded with core end processingmm²2.5 ... 35
● finely stranded without core end processingmm²4 ... 50
Connectable conductor cross-section for supply for main contacts using the lower clamping point
● solidmm²2.5 ... 70
● strandedmm²2.5 ... 70
● finely stranded with core end processingmm²2.5 ... 50
● finely stranded without core end processingmm²10 ... 50
Connectable conductor cross-section for supply for main contacts using both clamping points
● solidmm²2 ... 50
● strandedmm²2 ... 50
● finely stranded with core end processingmm²2 ... 35
● finely stranded without core end processingmm²2 ... 35
AWG number as coded connectable conductor cross section for supply for main contacts
● using the upper clamping point10 ... 0
● using the lower clamping point10 ... 0
● using both clamping points10 ... 0
Type of connectable conductor cross-sections for supply for main contacts using the upper clamping point
● solid2.5 ... 70 mm²
● stranded2.5 ... 70 mm²
● finely stranded with core end processing2.5 ... 35 mm²
● finely stranded without core end processing4 ... 50 mm²
Type of connectable conductor cross-sections for supply for main contacts using the lower clamping point
● solid2.5 ... 70 mm²
● stranded2.5 ... 70 mm²
● finely stranded with core end processing2.5 ... 50 mm²
● finely stranded without core end processing10 ... 50 mm²
Type of connectable conductor cross-sections for supply for main contacts using both clamping points
● solid2 x (2.5 ... 50 mm²)
● stranded2 x (2.5 ... 50 mm²)
● finely stranded with core end processing2 x (2.5 ... 35 mm²)
● finely stranded without core end processing2 x (4 ... 35 mm²)
Type of connectable conductor cross-sections at AWG conductors for supply for main contacts
● using the upper clamping point10 ... 2/0
● using the lower clamping point10 ... 2/0
● using both clamping points2 x (10 ... 1/0)
Connectable conductor cross-section for main contacts for load-side outgoing feeder
● solidmm²1.5 ... 10
● strandedmm²1.5 ... 10
● finely stranded with core end processingmm²1.5 ... 6
● finely stranded without core end processingmm²1.5 ... 6
AWG number as coded connectable conductor cross section for main contacts for load-side outgoing feeder14 ... 8
Type of connectable conductor cross-sections for main contacts for load-side outgoing feeder
● solid2x (1.5 ... 6 mm²), 1x (1.5 ... 10 mm²)
● stranded2x (1.5 ... 6 mm²), 1x (1.5 ... 10 mm²)
● finely stranded with core end processing2 x (1.5 ... 6) mm²
● finely stranded without core end processing2 x (1.5 ... 6) mm²
Type of connectable conductor cross-sections at AWG conductors for main contacts for load-side outgoing feeder2 x (16 ... 10), 1 x (16 ... 8)
Certificates/ approvals
General Product ApprovalEMCDeclaration of Conformity

CSA

UL

EAC

RCM

EC/EU-Declaration of Conformity

Miscellaneous

Test CertificatesShipping Approval

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

BV / Bureau Veritas

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

Shipping Approvalother

RMRS / Russian Maritime Register

Confirmation

Safety related data
Protection against electrical shockfinger-safe
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:06/27/2020


Product
Article Number (Market Facing Number)3RA6813-8AC
Product DescriptionInfeed left Connection main circuit: input: Screw, Outgoing feeder: Spring 3 slots for compact load feeders Connection terminal maximum 50 mm2 / 70 mm2
Product familyInfeed system for 3RA6
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group42F
Surcharge for Raw MaterialsNone
Metal FactorL-P-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)1,451 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension239,00 x 242,00 x 188,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209745568
UPC662643360639
Commodity Code85369095
LKZ_FDB/ CatalogIDCC-IC10
Product Group5340
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-04-22
eClass7.127-37-04-22
eClass827-37-04-22
eClass927-37-04-22
eClass9.127-37-04-22
ETIM4EC002043
ETIM5EC002043
ETIM6EC002043
ETIM7EC002043
IDEA44604
UNSPSC1439-12-15-21
UNSPSC1539-12-14-32

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
