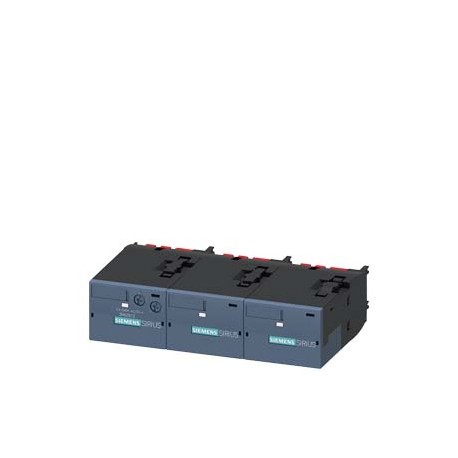

| Function module star-delta (wye-delta) consisting of basic module and 2 coupling modules with integrated connecting cable Time range 0.5...60 s 24...240 V AC/DC For 3RT2 S00-S3 contactors and 3RH2 S00 contactor relays Varistor for attenuation of the contactor coils integrated |
| product brand name | SIRIUS |
| product designation | function module |
| design of the product | comprising basic module and two coupling modules |
| product type designation | 3RA28 |
| General technical data |
| size of contactor can be combined company-specific | S00, S0, S2, S3 |
| product component semi-conductor output | No |
| product extension required remote control | No |
| product extension optional remote control | No |
| insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value | 300 V |
| test voltage for isolation test | 1.5 kV |
| degree of pollution | 3 |
| surge voltage resistance rated value | 4 kV |
| test voltage for surge voltage test | 4 800 V |
| protection class IP of the terminal | IP20 |
| shock resistance according to IEC 60068-2-27 | 15g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 59 Hz: 0.35 mm, 60 ... 150 Hz: 2g |
| mechanical service life (switching cycles) typical | 10 000 000 |
| mechanical service life (switching cycles) | |
| ● with contactor 3R.2 of frame size S00 | 10 000 000 |
| ● with contactor 3R.2 of frame size S0 | 10 000 000 |
| ● with contactor 3R.2 of frame size S2 | 10 000 000 |
| ● with contactor 3R.2 of frame size S3 | 10 000 000 |
| electrical endurance (switching cycles) at AC-15 at 230 V typical | 100 000 |
| electrical endurance (switching cycles) | |
| ● with contactor 3R.2 of frame size S00 | 100 000 |
| ● with contactor 3R.2 of frame size S0 | 100 000 |
| ● with contactor 3R.2 of frame size S2 | 100 000 |
| ● with contactor 3R.2 of frame size S3 | 100 000 |
| adjustable time | 0.5 ... 60 s |
| relative setting accuracy relating to full-scale value | 15 % |
| recovery time | 150 ms |
| reference code according to IEC 81346-2 | K |
| relative repeat accuracy | 1 % |
| influence of the surrounding temperature | ±1 % |
| power supply influence | ±2 % |
| Substance Prohibitance (Date) | 10/01/2009 |
| Product Function |
| product function star-delta circuit | Yes |
| Control circuit/ Control |
| type of voltage of the control supply voltage | AC/DC |
| control supply voltage 1 at AC | |
| ● at 50 Hz | 24 ... 240 V |
| ● at 60 Hz | 24 ... 240 V |
| control supply voltage frequency 1 | 50 ... 60 Hz |
| control supply voltage 1 | |
| ● at DC | 24 ... 240 V |
| operating range factor control supply voltage rated value at DC | |
| ● initial value | 0.85 |
| ● full-scale value | 1.1 |
| operating range factor control supply voltage rated value at AC at 50 Hz | |
| ● initial value | 0.85 |
| ● full-scale value | 1.1 |
| operating range factor control supply voltage rated value at AC at 60 Hz | |
| ● initial value | 0.85 |
| ● full-scale value | 1.1 |
| design of the surge suppressor | with varistor |
| Switching Function |
| switching function | |
| ● ON-delay | No |
| ● ON-delay/instantaneous contact | No |
| ● passing make contact | No |
| ● passing make contact/instantaneous contact | No |
| ● OFF delay | No |
| switching function | |
| ● flashing symmetrically with interval start/instantaneous | No |
| ● flashing symmetrically with interval start | No |
| ● flashing symmetrically with pulse start/instantaneous | No |
| ● flashing symmetrically with pulse start | No |
| ● flashing asymmetrically with interval start | No |
| ● flashing asymmetrically with pulse start | No |
| switching function | |
| ● constant clock cycle with pulse start | No |
| ● constant clock cycle with interval start | No |
| switching function | |
| ● variably clocked with pulse start | No |
| ● variably clocked with interval start | No |
| switching function | |
| ● star-delta circuit with delay time | No |
| ● star-delta circuit | Yes |
| switching function with control signal | |
| ● additive ON-delay | No |
| ● passing break contact | No |
| ● passing break contact/instantaneous | No |
| ● OFF delay | No |
| ● OFF delay/instantaneous | No |
| ● pulse delayed | No |
| ● pulse delayed/instantaneous | No |
| ● pulse-shaping | No |
| ● pulse-shaping/instantaneous | No |
| ● additive ON-delay/instantaneous | No |
| ● ON-delay/OFF-delay | No |
| ● ON-delay/OFF-delay/instantaneous | No |
| ● passing make contact | No |
| ● passing make contact/instantaneous contact | No |
| switching function of interval relay with control signal | |
| ● retrotriggerable with deactivated control signal/instantaneous contact | No |
| ● retrotriggerable with switched-on control signal | No |
| ● retrotriggerable with switched-on control signal/instantaneous contact | No |
| ● retriggerable with deactivated control signal | No |
| design of the control terminal non-floating | No |
| Short-circuit protection |
| design of the fuse link for short-circuit protection of the auxiliary switch required | fuse gL/gG: 4 A |
| Auxiliary circuit |
| material of switching contacts | AgSnO2 |
| number of NO contacts | |
| ● delayed switching | 2 |
| operating frequency with 3RT2 contactor maximum | 2 500 1/h |
| Main circuit |
| type of voltage | AC/DC |
| Inputs/ Outputs |
| product function | |
| ● at the relay outputs switchover delayed/without delay | No |
| ● non-volatile | No |
| Electromagnetic compatibility |
| EMC immunity according to IEC 61812-1 | Environment A (industrial area) |
| conducted interference | |
| ● due to burst according to IEC 61000-4-4 | 2 kV network connection / 1 kV control connection |
| ● due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| ● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 8 kV |
| Safety related data |
| protection class IP on the front according to IEC 60529 | IP20 |
| type of insulation | Basic insulation |
| category according to EN 954-1 | none |
| Connections/ Terminals |
| product component removable terminal for auxiliary and control circuit | No |
| Installation/ mounting/ dimensions |
| mounting position | any (like contactor) |
| fastening method | clip-on |
| height | 38 mm |
| width | 45 mm |
| depth | 74 mm |
| required spacing | |
| ● with side-by-side mounting | |
| — forwards | 0 mm |
| — backwards | 0 mm |
| — upwards | 0 mm |
| — downwards | 0 mm |
| — at the side | 0 mm |
| ● for grounded parts | |
| — forwards | 0 mm |
| — backwards | 0 mm |
| — upwards | 0 mm |
| — at the side | 0 mm |
| — downwards | 0 mm |
| ● for live parts | |
| — forwards | 0 mm |
| — backwards | 0 mm |
| — upwards | 0 mm |
| — downwards | 0 mm |
| — at the side | 0 mm |
| Ambient conditions |
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature | |
| ● during operation | -25 ... +60 °C |
| ● during storage | -40 ... +85 °C |
| ● during transport | -40 ... +85 °C |
| relative humidity during operation | 0 ... 95 % |
