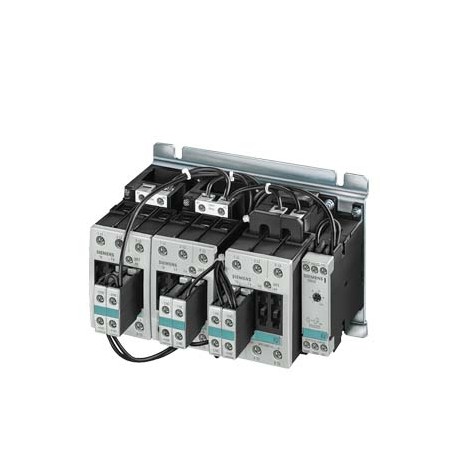

3RA1436-8XC21-1AC2 SIEMENS Contactor assembly Star-delta (wye-delta) (pre-assembled) with lateral timing rel..
3RA1436-8XC21-1AC2
14368
SIEMENS
1 Pcs.
Automation > Combination of contactors
Contactors for switching motors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered to limit heavy inrush currents during motor startup, the Siemens 3RA1436-8XC21-1AC2 contactor assembly star-delta (wye-delta) with lateral timing relay automatically switches winding configurations for large electrical drives. This setup minimizes mechanical stress on connected machinery. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Star-delta contactor
- Rated control supply voltage Us at AC 50HZ (EF003978): ['-', '24']
- Rated control supply voltage Us at AC 60HZ (EF003979): ['-', '24']
- Rated control supply voltage Us at DC (EF003980): ['-', '-']
- Voltage type for actuating (EF008242): AC
- Rated operation current Ie at AC-3, 400 V (EF001392): 86
- Rated operation power at AC-3, 400 V (EF001364): 45.0
- Type of electrical connection of main circuit (EF006819): Screw connection
- Degree of protection (IP) (EF005474): IP20
- Product designation: contactor assembly
- Size of contactor: S2, S2, S2
- Product function: wye-delta-contactor
- Product extension Auxiliary switch: Yes
- Degree of pollution: 3
- protection class IP on the front: IP20
- Reference code acc. to DIN EN 81346-2: Q
More info
▲ETIM: EC000010 - Combination of contactors
| Value | Unit | |
|---|---|---|
| Degree of protection (NEMA) (EF011959) | - | |
| Rated operation power NEMA (EF011960) | - | kW |
| Function (EF000030) | Star-delta contactor | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '24'] | V |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '24'] | V |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] | V |
| Voltage type for actuating (EF008242) | AC | |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 86 | A |
| Rated operation power at AC-3, 400 V (EF001364) | 45.0 | kW |
| Type of electrical connection of main circuit (EF006819) | Screw connection | |
| Degree of protection (IP) (EF005474) | IP20 |
| Product | ||
| Article Number (Market Facing Number) | 3RA1436-8XC21-1AC2 | |
| Product Description | Contactor assembly Star-delta (wye-delta) (pre-assembled) with lateral timing relay AC-3, 45 kW/400 V, 3-pole Size S2, S2, S2 Electrically interlocked Screw terminal 24 V AC, 50/60 Hz !!! Phased-out product !!! Successor is SIRIUS 3RA2 Preferred successor type is >>3RA2436-8XF32-1AC2<< | |
| Product family | Not available | |
| Product Lifecycle (PLM) | PM490:Start of final year of support | |
| PLM Effective Date | Product discontinued since: 01.04.2020 | |
| Notes | Product is no longer available Sucessor:Successor SIRIUS Innovation 3RA2 If you need assistance please contact our local Siemens office | |
| Price data | ||
| Price Group | 41B | |
| Surcharge for Raw Materials | None | |
| Metal Factor | LDO----- | |
| Delivery information | ||
| Export Control Regulations | ECCN : N / AL : N | |
| Standard lead time ex-works | 20 Day/Days | |
| Net Weight (kg) | 3,703 Kg | |
| Product Dimensions (W x L x H) | Not available | |
| Packaging Dimension | 246,00 x 326,00 x 222,00 | |
| Package size unit of measure | MM | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | 4011209377905 | |
| UPC | Not available | |
| Commodity Code | 85364900 | |
| LKZ_FDB/ CatalogID | CC-IC10 | |
| Product Group | 3712 | |
| Group Code | R711 | |
| Country of origin | Germany | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 | |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |
