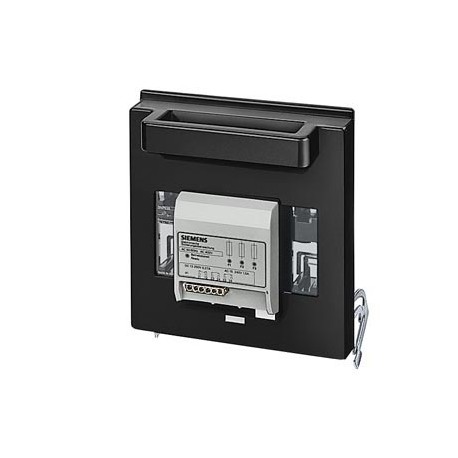

SIEMENS 3NY1513-4 3NY1513-4 SIEMENS Spare part for switch 3NP54 Handle unit with electronic fuse monitoring without control ca.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3NY1513-4 SIEMENS Spare part for switch 3NP54 Handle unit with electronic fuse monitoring without control ca..

3NY1513-4

15134

SIEMENS

1 Pcs.

Spare part for switch 3NP54 Handle unit with electronic fuse monitoring without control cable U=400/500 V AC, self-supplied SPARE PART FOR SWITCH 3NP54 HANDLE WITH CEF WITHOUT CONTROL CABLE U=400/500V AC, WITH OWN POWER. Manufactured to order. Non-Cancelable Non-Returnable.

Automation > Accessories/spare parts for low-voltage switch technology
SWITCHES-DISCONNECTORS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

Spare part for switch 3NP54 Handle unit with electronic fuse monitoring without control cable U=400/500 V AC, self-supplied
Model
product brand nameSENTRON
product designationFuse carrier with fuse monitoring

Downloads and manuals

design of the productfor 3NP5 fuse switch disconnector
Further information
Siemens has decided to exit the Russian market (see here).
Siemens is working on the renewal of the current EAC certificates.
Please contact your local Siemens office on the status of validity of the EAC certification if you intend to import or offer to supply these products to an EAC relevant market (other than the sanctioned EAEU member states Russia or Belarus).
Information on the packaging
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
last modified:7/30/2022
Date
6/29/2023		Subject to change without notice
© Copyright Siemens 2023


Additional data

Product
Article Number (Market Facing Number)3NY1513-4
Product DescriptionSpare part for switch 3NP54 Handle unit with electronic fuse monitoring without control cable U=400/500 V AC, self-supplied
Product familyNot available
Product Lifecycle (PLM)PM410:Product cancellation
PLM Effective DateProduct is cancelled since: 21.07.2022
Notes
This product is a Spare Part, please visit the Spares & Service section for more information
If you need assistance please contact our local Siemens office
Price data
Region Specific PriceGroup / Headquarter Price Group12Q / 1CL
Surcharge for Raw MaterialsNone
Metal FactorLAP-----
Delivery information
Export Control RegulationsECCN : N / AL : N
Standard lead time ex-works7 Day/Days
Net Weight (kg)2,595 Kg
Packaging Dimension290,00 x 300,00 x 260,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209450462
UPCNot available
Commodity Code85369095
LKZ_FDB/ CatalogIDLV10.1
Product Group5851
Group CodeP360
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveGiven
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
Not available

ETIM data

ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology

Value Unit
Type of accessory/spare part (EF000215) -
