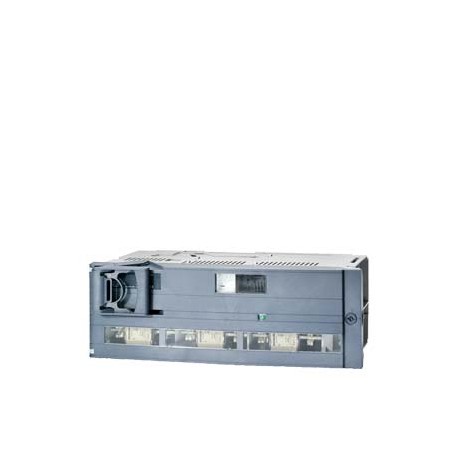

3NJ6283-3AC00-0AA0 SIEMENS Switch disconnector with fuses In-line design, pluggable BS B4, 3-pole High switc..
3NJ6283-3AC00-0AA0
62833
SIEMENS
1 Pcs.
Automation > In-line fuse base
SWITCHES-DISCONNECTORS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens 3NJ6283-3AC00-0AA0 switch disconnector with fuses provides reliable in-line switching and short-circuit protection for high-capacity industrial electrical infrastructure. Facilities rely on these pluggable units within main distribution boards to isolate feeder circuits securely and protect critical machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Double interrupting (EF007103): true
- Rated permanent current Iu (EF001389): 400.0
- Distance between rail centre, 40 mm (EF001431): false
- Distance between rail centre, 50 mm (EF001430): false
- Distance between rail centre, 60 mm (EF001432): false
- Distance between rail centre, 100 mm (EF006048): false
- Distance between rail centre, 185 mm (EF006049): true
- Max. rated operation voltage Ue AC (EF007355): 690
- Conditioned rated short-circuit current Iq (EF001444): 66.0
- Type of electrical connection of main circuit (EF006819): Bolt connection
- Number of poles (EF001391): 3
- Product Article Number (Market Facing Number): 3NJ6283-3AC00-0AA0
- Product family: Not available
- Product Lifecycle (PLM): PM300:Active Product
- Price data Price Group: 14M
- Metal Factor: LAP-----
More info
▲ETIM: EC001046 - In-line fuse base
| Value | Unit | |
|---|---|---|
| Model (EF000010) | - | |
| Release indication (EF011943) | - | |
| Double interrupting (EF007103) | true | |
| Rated permanent current Iu (EF001389) | 400.0 | A |
| Distance between rail centre, 40 mm (EF001431) | false | |
| Distance between rail centre, 50 mm (EF001430) | false | |
| Distance between rail centre, 60 mm (EF001432) | false | |
| Distance between rail centre, 100 mm (EF006048) | false | |
| Distance between rail centre, 185 mm (EF006049) | true | |
| Max. rated operation voltage Ue AC (EF007355) | 690 | V |
| Conditioned rated short-circuit current Iq (EF001444) | 66.0 | kA |
| Type of electrical connection of main circuit (EF006819) | Bolt connection | |
| Number of poles (EF001391) | 3 | |
| Construction size fuse insert (EF001452) | Other |
| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3NJ6283-3AC00-0AA0 | ||||||||||||||||||||||||||||||
| Product Description | Switch disconnector with fuses In-line design, pluggable BS B4, 3-pole High switching capacity H Manual operation Fuse monitoring EFM 20 without auxiliary switch without current transformer without ammeter | ||||||||||||||||||||||||||||||
| Product family | Not available | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Price Group | 14M | ||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
| Metal Factor | LAP----- | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | ECCN : N / AL : N | ||||||||||||||||||||||||||||||
| Standard lead time ex-works | 30 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 15,200 Kg | ||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | ||||||||||||||||||||||||||||||
| Packaging Dimension | Not available | ||||||||||||||||||||||||||||||
| Package size unit of measure | Not available | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | Not available | ||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||
| Commodity Code | 85365080 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | ||||||||||||||||||||||||||||||
| Product Group | 5862 | ||||||||||||||||||||||||||||||
| Group Code | P360 | ||||||||||||||||||||||||||||||
| Country of origin | Bulgaria | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 19.09.2007 | ||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
