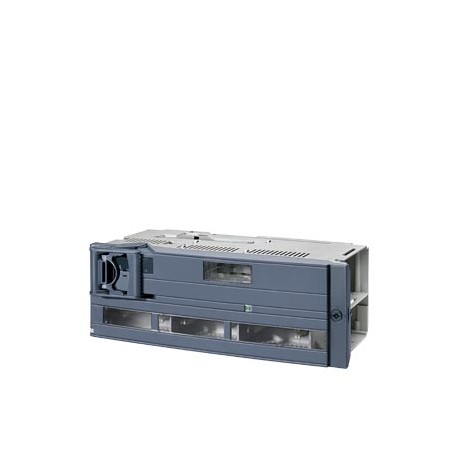

3NJ6224-2AA00-0AA0 SIEMENS Switch disconnector with fuses In-line design, pluggable NH2 400 A, 4-pole Standa..
3NJ6224-2AA00-0AA0
62242
SIEMENS
1 Pcs.
Automation > In-line fuse base
SWITCHES-DISCONNECTORS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens switch disconnector with fuses in an in-line pluggable design provides secure power switching and short-circuit protection across four-pole configurations in industrial power systems. Operators utilize these reliable components to isolate equipment safely, manage heavy loads, and maintain regulatory compliance within electrical enclosures.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Double interrupting (EF007103): true
- Rated permanent current Iu (EF001389): 400.0
- Distance between rail centre, 40 mm (EF001431): false
- Distance between rail centre, 50 mm (EF001430): false
- Distance between rail centre, 60 mm (EF001432): false
- Distance between rail centre, 100 mm (EF006048): false
- Distance between rail centre, 185 mm (EF006049): true
- Max. rated operation voltage Ue AC (EF007355): 690
- Conditioned rated short-circuit current Iq (EF001444): 55.0
- Type of electrical connection of main circuit (EF006819): Bolt connection
- Number of poles (EF001391): 4
- Construction size fuse insert (EF001452): NH2
- Product Article Number (Market Facing Number): 3NJ6224-2AA00-0AA0
- Product family: Not available
- Product Lifecycle (PLM): PM300:Active Product
- Price data Price Group: 14M
More info
▲ETIM: EC001046 - In-line fuse base
| Value | Unit | |
|---|---|---|
| Release indication (EF011943) | - | |
| Model (EF000010) | - | |
| Double interrupting (EF007103) | true | |
| Rated permanent current Iu (EF001389) | 400.0 | A |
| Distance between rail centre, 40 mm (EF001431) | false | |
| Distance between rail centre, 50 mm (EF001430) | false | |
| Distance between rail centre, 60 mm (EF001432) | false | |
| Distance between rail centre, 100 mm (EF006048) | false | |
| Distance between rail centre, 185 mm (EF006049) | true | |
| Max. rated operation voltage Ue AC (EF007355) | 690 | V |
| Conditioned rated short-circuit current Iq (EF001444) | 55.0 | kA |
| Type of electrical connection of main circuit (EF006819) | Bolt connection | |
| Number of poles (EF001391) | 4 | |
| Construction size fuse insert (EF001452) | NH2 |
| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3NJ6224-2AA00-0AA0 | ||||||||||||||||||||||||||||||
| Product Description | Switch disconnector with fuses In-line design, pluggable NH2 400 A, 4-pole Standard switching capacity S Motor drive, without auxiliary switch without current transformer without ammeter | ||||||||||||||||||||||||||||||
| Product family | Not available | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Price Group | 14M | ||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
| Metal Factor | LAP----- | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | ECCN : N / AL : N | ||||||||||||||||||||||||||||||
| Standard lead time ex-works | 15 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 18,900 Kg | ||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | ||||||||||||||||||||||||||||||
| Packaging Dimension | Not available | ||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | 4011209760882 | ||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||
| Commodity Code | 85365080 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | ||||||||||||||||||||||||||||||
| Product Group | 5862 | ||||||||||||||||||||||||||||||
| Group Code | P360 | ||||||||||||||||||||||||||||||
| Country of origin | Bulgaria | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 04.09.2008 | ||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
