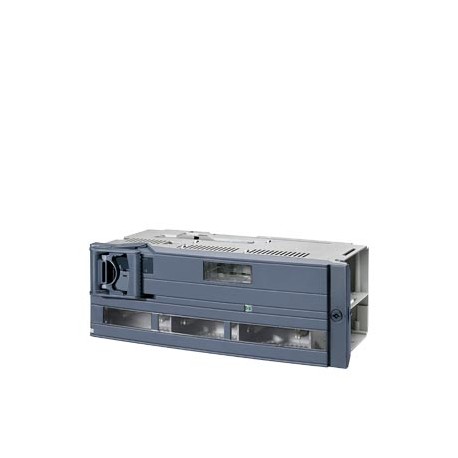

SIEMENS 3NJ6222-4AA00-0AA0 3NJ6222-4AA00-0AA0 SIEMENS Switch disconnector with fuses In-line design, pluggable NH2 400 A, 2-pole High s.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3NJ6222-4AA00-0AA0 SIEMENS Switch disconnector with fuses In-line design, pluggable NH2 400 A, 2-pole High s..

3NJ6222-4AA00-0AA0

62224

SIEMENS

1 Pcs.

Switch disconnector with fuses In-line design, pluggable NH2 400 A, 2-pole High switching capacity H Motorized operating mechanism without auxiliary switch without current transformer without ammeter

Automation > In-line fuse base
SWITCHES-DISCONNECTORS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ETIM: EC001046 - In-line fuse base

Value Unit
Release indication (EF011943) -
Model (EF000010) -
Double interrupting (EF007103) true
Rated permanent current Iu (EF001389) 400.0A
Distance between rail centre, 40 mm (EF001431) false
Distance between rail centre, 50 mm (EF001430) false
Distance between rail centre, 60 mm (EF001432) false
Distance between rail centre, 100 mm (EF006048) false
Distance between rail centre, 185 mm (EF006049) true
Max. rated operation voltage Ue AC (EF007355) -V
Conditioned rated short-circuit current Iq (EF001444) 66.0kA
Type of electrical connection of main circuit (EF006819) Bolt connection
Number of poles (EF001391) 2
Construction size fuse insert (EF001452) NH2


Product
Article Number (Market Facing Number)3NJ6222-4AA00-0AA0
Product DescriptionSwitch disconnector with fuses In-line design, pluggable NH2 400 A, 2-pole High switching capacity H Motorized operating mechanism without auxiliary switch without current transformer without ammeter
Product familyNot available
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group14M
Surcharge for Raw MaterialsNone
Metal FactorLAP-----
Delivery information
Export Control RegulationsECCN : EAR99 / AL : N
Standard lead time ex-works15 Day/Days
Net Weight (kg)15,000 Kg
Product Dimensions (W x L x H)Not available
Packaging DimensionNot available
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209697065
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDLV10.1
Product Group5862
Group CodeP360
Country of originBulgaria
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-14-02
eClass7.127-37-14-02
eClass827-37-14-02
eClass927-37-14-02
eClass9.127-37-14-02
ETIM4EC001046
ETIM5EC001046
ETIM6EC001046
ETIM7EC001046
