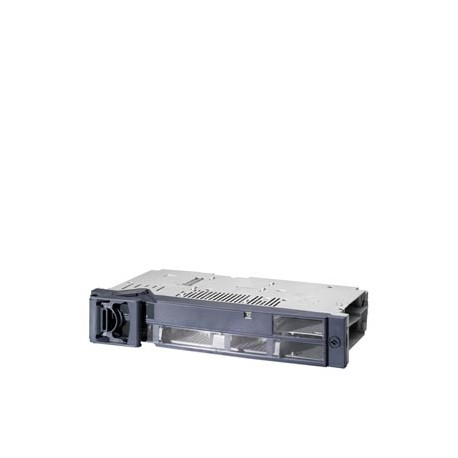

3NJ6212-3AA00-0AA0 SIEMENS Switch disconnector with fuses In-line design, pluggable NH1 250 A, 2-pole High s..
3NJ6212-3AA00-0AA0
62123
SIEMENS
1 Pcs.
Automation > In-line fuse base
SWITCHES-DISCONNECTORS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Built for industrial power panels, the Siemens switch disconnector with fuses identified as 3NJ6212-3AA00-0AA0 offers reliable disconnection and fuse-based protection for electrical feeds. Such hardware is routinely mounted on busbar systems within commercial and manufacturing facilities to safeguard electrical infrastructure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Double interrupting (EF007103): true
- Rated permanent current Iu (EF001389): 250.0
- Distance between rail centre, 40 mm (EF001431): false
- Distance between rail centre, 50 mm (EF001430): false
- Distance between rail centre, 60 mm (EF001432): false
- Distance between rail centre, 100 mm (EF006048): false
- Distance between rail centre, 185 mm (EF006049): true
- Conditioned rated short-circuit current Iq (EF001444): 66.0
- Type of electrical connection of main circuit (EF006819): Bolt connection
- Number of poles (EF001391): 2
- Construction size fuse insert (EF001452): NH1
- Product Article Number (Market Facing Number): 3NJ6212-3AA00-0AA0
- Product family: Not available
- Product Lifecycle (PLM): PM300:Active Product
- Price data Price Group: 14M
- Metal Factor: LAP-----
More info
▲ETIM: EC001046 - In-line fuse base
| Value | Unit | |
|---|---|---|
| Model (EF000010) | - | |
| Release indication (EF011943) | - | |
| Double interrupting (EF007103) | true | |
| Rated permanent current Iu (EF001389) | 250.0 | A |
| Distance between rail centre, 40 mm (EF001431) | false | |
| Distance between rail centre, 50 mm (EF001430) | false | |
| Distance between rail centre, 60 mm (EF001432) | false | |
| Distance between rail centre, 100 mm (EF006048) | false | |
| Distance between rail centre, 185 mm (EF006049) | true | |
| Max. rated operation voltage Ue AC (EF007355) | - | V |
| Conditioned rated short-circuit current Iq (EF001444) | 66.0 | kA |
| Type of electrical connection of main circuit (EF006819) | Bolt connection | |
| Number of poles (EF001391) | 2 | |
| Construction size fuse insert (EF001452) | NH1 |
| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3NJ6212-3AA00-0AA0 | ||||||||||||||||||||||||||||||
| Product Description | Switch disconnector with fuses In-line design, pluggable NH1 250 A, 2-pole High switching capacity H manual operation without auxiliary switch without current transformer without ammeter | ||||||||||||||||||||||||||||||
| Product family | Not available | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Price Group | 14M | ||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
| Metal Factor | LAP----- | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | ECCN : N / AL : N | ||||||||||||||||||||||||||||||
| Standard lead time ex-works | 15 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 6,730 Kg | ||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | ||||||||||||||||||||||||||||||
| Packaging Dimension | 330,00 x 600,00 x 110,00 | ||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | 4011209697010 | ||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||
| Commodity Code | 85365080 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | ||||||||||||||||||||||||||||||
| Product Group | 5862 | ||||||||||||||||||||||||||||||
| Group Code | P360 | ||||||||||||||||||||||||||||||
| Country of origin | Bulgaria | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | ||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
