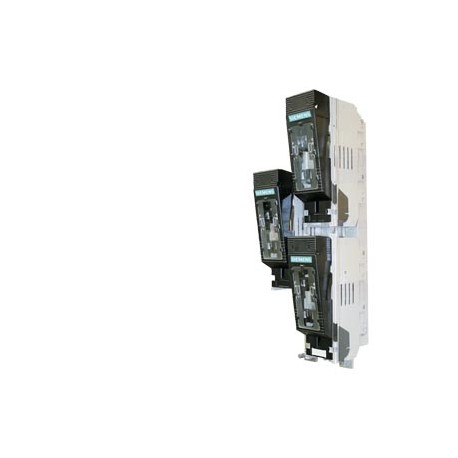

SIEMENS 3NJ5643-0BB00 3NJ5643-0BB00 SIEMENS In-line fuse switch disconnector 1-pole selectable, gR 4A, I 1250 A Flat terminal M16x.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3NJ5643-0BB00 SIEMENS In-line fuse switch disconnector 1-pole selectable, gR 4A, I 1250 A Flat terminal M16x..

3NJ5643-0BB00

56430

SIEMENS

1 Pcs.

In-line fuse switch disconnector 1-pole selectable, gR 4A, I=1250 A Flat terminal M16x 60 Vertical base with 1 pole switchable fuses, size 4A, I=1250A flat connection M16 x 60.

Automation > In-line fuse base
SWITCHES-DISCONNECTORS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An in-line fuse switch disconnector provides modular switching and short-circuit protection in heavy electrical cabinets, allowing operators to safely isolate individual phases or circuits under load. The Siemens 3NJ5643-0BB00 handles high-current applications while maintaining robust mechanical performance.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Product Article Number (Market Facing Number): 3NJ5643-0BB00
  • Product Description: In-line fuse switch disconnector 1-pole selectable, gR 4A, I=1250 A Flat terminal M16x 60
  • Product family: 1-pole, Switchable
  • Product Lifecycle (PLM): PM300:Active Product
  • Metal Factor: -43-----
  • Delivery information Export Control Regulations: AL : N / ECCN : N
  • Standard lead time ex-works: 3 Day/Days
  • Net Weight (kg): 20,500 Kg
  • Packaging Dimension: 265,00 x 820,00 x 273,00
  • Package size unit of measure: MM
  • Quantity Unit: 1 Piece
  • Packaging Quantity: 1
  • Additional Product Information EAN: 4011209005778
  • UPC: Not available
  • Commodity Code: 85365080
  • LKZ_FDB/ CatalogID: LV10.1

More info

▲
Product
Article Number (Market Facing Number)3NJ5643-0BB00
Product DescriptionIn-line fuse switch disconnector 1-pole selectable, gR 4A, I=1250 A Flat terminal M16x 60
Product family1-pole, Switchable
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group14M / 53Q
Surcharge for Raw MaterialsNone
Metal Factor-43-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works3 Day/Days
Net Weight (kg)20,500 Kg
Packaging Dimension265,00 x 820,00 x 273,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209005778
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDLV10.1
Product Group5852
Group CodeP360
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveGiven
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass1227-37-14-02
eClass1427-37-14-02
eClass627-37-14-02
eClass7.127-37-14-02
eClass827-37-14-02
eClass927-37-14-02
eClass9.127-37-14-02
ETIM10EC001046
ETIM7EC001046
ETIM8EC001046
ETIM9EC001046

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
