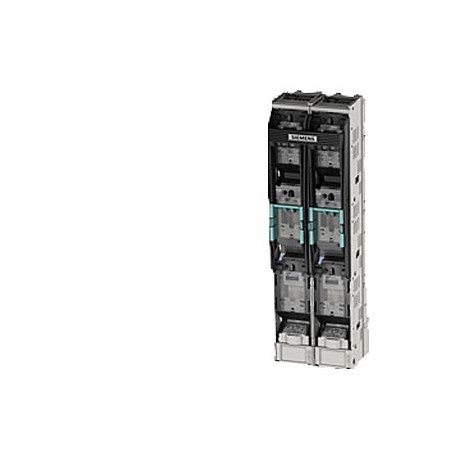

SIEMENS 3NJ4153-3BF01 3NJ4153-3BF01 SIEMENS fuse switch disconnector 3-pole switchable, for protection of transformers on the seco.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3NJ4153-3BF01 SIEMENS fuse switch disconnector 3-pole switchable, for protection of transformers on the seco..

3NJ4153-3BF01

41533

SIEMENS

1 Pcs.

fuse switch disconnector 3-pole switchable, for protection of transformers on the secondary side up to 500 kVA for LV HRC fuses GTR 722 A max., 400 V AC, and NH3 disconnecting blade up to 1000 A SECTION STRIP. WITH 3 POLE MANIOBR FUSE. NEW DESIGN FOR RRANSF PROTECTION. IN SECONDARY ZONE UP TO 500 KVA FOR NH GTR 722 A MAX. FUSES, 400V AC, AND NH3 SECC BLADE. UP TO 1000 BC

Automation > In-line fuse base
SWITCHES-DISCONNECTORS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product
Article Number (Market Facing Number)3NJ4153-3BF01
Product Descriptionfuse switch disconnector 3-pole switchable, for protection of transformers on the secondary side up to 500 kVA for LV HRC fuses GTR 722 A max., 400 V AC, and NH3 disconnecting blade up to 1000 A
Product family3-pole, Switchable
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group14M / 53Q
Surcharge for Raw MaterialsNone
Metal Factor-43-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works3 Day/Days
Net Weight (kg)8,810 Kg
Packaging Dimension220,00 x 920,00 x 140,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209823419
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDLV10.1
Product Group5852
Group CodeP360
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 17.04.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass1227-37-14-02
eClass1427-37-14-02
eClass627-37-14-02
eClass7.127-37-14-02
eClass827-37-14-02
eClass927-37-14-02
eClass9.127-37-14-02
ETIM10EC001046
ETIM7EC001046
ETIM8EC001046
ETIM9EC001046
