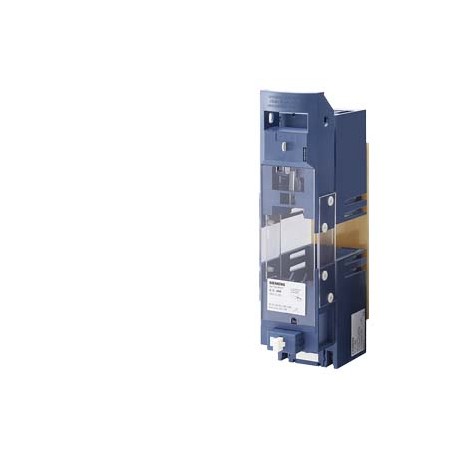

3NH7360-4 SIEMENS LV HRC fuse base Size 2L 400 A 1000 V for photovoltaic applications
3NH7360-4
73604
SIEMENS
1 Pcs.
Automation > Low Voltage HRC fuse base
NH fuses
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Siemens 3NH7360-4 LV HRC fuse base is specifically engineered for photovoltaic applications, providing reliable fuse retention and circuit protection in solar power generation systems. The swivel-in mechanism facilitates safe fuse replacement during routine maintenance.
Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- product designation: LV HRC fuse system
- design of the thread / of the connection screw: M10
- design of the product: LV HRC fuse bases with swivel mechanism
- General technical data number of poles: 1
- size of fuse system / according to EN 60269-1: NH2L
- ● at DC: 1 000 V
- ● at 35 °C / rated value: 376 A
- ● at 40 °C / rated value: 368 A
- ● at 45 °C / rated value: 356.16 A
- ● at 50 °C / rated value: 344 A
- ● at 55 °C / rated value: 332.16 A
- ● at 60 °C / rated value: 324.16 A
- ● at 65 °C / rated value: 308.16 A
- ● at 70 °C / rated value: 296 A
- ● at AC / rated value: 400 A
- Product details product component / swivel-in mechanism: Yes
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3NH7360-4 | ||||||||||||||||||||||||||||||||||||
| Product Description | LV HRC fuse base Size 2L 400 A 1000 V for photovoltaic applications | ||||||||||||||||||||||||||||||||||||
| Product family | PV Cumulative Fuses | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 13J / 1DN | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | L-P----- | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 2 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 1,724 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 150,00 x 380,00 x 115,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4001869429564 | ||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85369095 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | ||||||||||||||||||||||||||||||||||||
| Product Group | 5764 | ||||||||||||||||||||||||||||||||||||
| Group Code | P310 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Czech Republic | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2010 | ||||||||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000067 - Low Voltage HRC fuse base
| Value | Unit | |
|---|---|---|
| Bus-mounting type (EF002573) | - | |
| Construction size (EF002566) | Other | |
| Number of poles (EF001391) | 1 | |
| Rated current (EF000227) | 400 | A |
| Swivelling mechanism (EF002574) | true |
