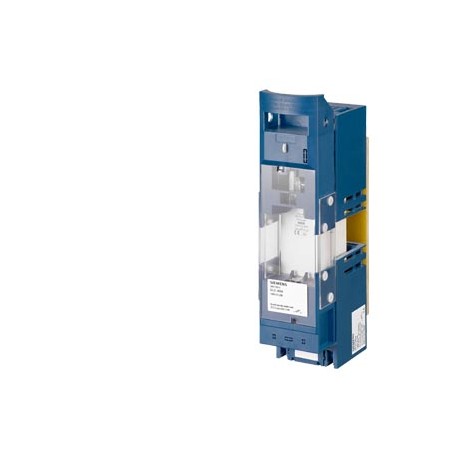

SIEMENS 3NH7260-4 3NH7260-4 SIEMENS LV HRC fuse base Size 1L 250 A 1000 V for photovoltaic applications View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3NH7260-4 SIEMENS LV HRC fuse base Size 1L 250 A 1000 V for photovoltaic applications

3NH7260-4

72604

SIEMENS

1 Pcs.

LV HRC fuse base Size 1L 250 A 1000 V for photovoltaic applications BASE FOR NH FUSES SIZE 1L 250A 1000V FOR PHOTOVOLTAIC APPLICATIONS. Cancelations and returns limited. Consult conditions.

Automation > Low Voltage HRC fuse base
NH fuses

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

LV HRC fuse base Size 1L 250 A 1000 V for photovoltaic applications
Model
product brand nameSENTRON
product designationLV HRC fuse system
design of the thread / of the connection screwM10
design of the productLV HRC fuse bases with swivel mechanism
General technical data
number of poles1
size of fuse system / according to EN 60269-1NH1L
Supply voltage
supply voltage
● at DC1 000 V
Current
operational current
● at 35 °C / rated value235 A
● at 40 °C / rated value230 A
● at 45 °C / rated value222.6 A
● at 50 °C / rated value215 A
● at 55 °C / rated value207.6 A
● at 60 °C / rated value202.6 A
● at 65 °C / rated value192.6 A
● at 70 °C / rated value185 A
● at AC / rated value250 A
Product details
product component / swivel-in mechanismYes
breaking capacity maximum short-circuit current (Icu)
● at DC / rated value25 kA
Connections
tightening torque / with screw-type terminals / maximum20 N·m
type of electrical connectionfor mounting on mounting plate
● for main current circuitflat connector
Mechanical Design
height306 mm
width71 mm
depth130 mm
fastening methodfixed mounting
fastening method / bus-mountingNo
net weight1 306 g

Downloads and manuals

General Product ApprovalDeclaration of Conformityother

Confirmation

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/3/2022


Additional data

Product
Article Number (Market Facing Number)3NH7260-4
Product DescriptionLV HRC fuse base Size 1L 250 A 1000 V for photovoltaic applications
Product familyPV Cumulative Fuses
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group13J / 1DN
Surcharge for Raw MaterialsNone
Metal FactorL-P-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)1,319 Kg
Packaging Dimension140,00 x 350,00 x 80,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869429557
UPCNot available
Commodity Code85389099
LKZ_FDB/ CatalogIDLV10.1
Product Group5764
Group CodeP310
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.06.2010
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-14-21-06
eClass7.127-14-21-06
eClass827-14-21-06
eClass927-14-21-06
eClass9.127-14-21-06
ETIM5EC000067
ETIM6EC000067
ETIM7EC000067
ETIM8EC000067
UNSPSC1439-12-16-26
UNSPSC1539-12-16-17

ETIM data

ETIM: EC000067 - Low Voltage HRC fuse base

Value Unit
Bus-mounting type (EF002573) -
Construction size (EF002566) Other
Number of poles (EF001391) 1
Rated current (EF000227) 250A
Swivelling mechanism (EF002574) true



Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
