SIEMENS 3NE8222-3MK 3NE8222-3MK SIEMENS SITOR fuse link, with slotted blade contacts, NH1, In: 125 A, aR, Un AC: 690 V, Un DC: 4.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

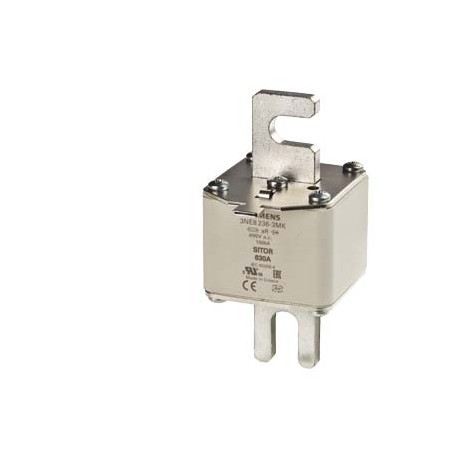

3NE8222-3MK SIEMENS SITOR fuse link, with slotted blade contacts, NH1, In: 125 A, aR, Un AC: 690 V, Un DC: 4..

3NE8222-3MK

82223

SIEMENS

3 Pcs.

SITOR fuse link, with slotted blade contacts, NH1, In: 125 A, aR, Un AC: 690 V, Un DC: 440 V, front indicator PROTEC FUSE. SEMICOND. SITOR 125A AR 690V AC/440V DC ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 3 Units ** ). Manufactured to order. Non-Cancelable Non-Returnable.

Automation > Low Voltage HRC fuse
SITOR Extra-fast Fuses

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

SITOR fuse link, with slotted blade contacts, NH1, In: 125 A, aR, Un AC: 690 V, Un DC: 440 V, front indicator
Model
product brand nameSENTRON
product designationSITOR fuse link
design of the productWith slotted blade contacts
design of an identification indicatorfront indicator
design of the switching contactWith bolt-on links, silver-plated
design of the fuse linkSITOR, LV HRC design
General technical data
size of fuse system / according to EN 60269-1NH1
operating class of the fuse linkaR
type of voltage / of the operating voltageAC/DC
Supply voltage
supply voltage
● at AC / rated value690 V
● at DC440 V
Dissipation
power loss [W]30 W
power loss [W]
● for rated value of the current / at AC / in hot operating state / per pole30 W
Current
operational current
● at 30 °C / rated value125 A
● at 40 °C / rated value125 A
● at 45 °C / rated value125 A
● at 50 °C / rated value123.75 A
● at AC / rated value125 A
Product details
product descriptionNot non-interchangeable
Mechanical Design
mounting positionAny, preferably vertical
net weight410 g
Environmental conditions
ambient temperature / during operation
● minimum-20 °C
● maximum50 °C
environmental category-20 to +50 at 95% relative humidity

Downloads and manuals

General Product ApprovalDeclaration of Conformityother

Confirmation

UR

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/14/2022


Additional data

Product
Article Number (Market Facing Number)3NE8222-3MK
Product DescriptionSITOR fuse link, with slotted blade contacts, NH1, In: 125 A, aR, Un AC: 690 V, Un DC: 440 V, front indicator
Product familyLV HRC Design
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group15I / 1DM
Surcharge for Raw MaterialsNone
Metal FactorLHB-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,410 Kg
Packaging Dimension108,00 x 165,00 x 70,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Minimum order quantity3
Additional Product Information
EAN4001869497785
UPCNot available
Commodity Code85361090
LKZ_FDB/ CatalogIDLV10
Product Group5540
Group CodeP310
Country of originGreece
Compliance with the substance restrictions according to RoHS directiveSince: 01.09.2013
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-14-20-05
eClass7.127-14-20-05
eClass827-14-20-05
eClass927-14-20-05
eClass9.127-14-20-05
ETIM5EC000055
ETIM6EC000055
ETIM7EC000055
ETIM8EC000055
UNSPSC1439-12-16-06
UNSPSC1539-12-16-26

ETIM data

ETIM: EC000055 - Low Voltage HRC fuse

Value Unit
Insulated metal gripping lugs (IMGL) (EF012538) -
Voltage type (EF000187) -
Construction size (EF002566) NH1
Rated current (EF000227) 125A
Rated voltage (EF000228) 690V
Utilization category (EF002572) aR (accompanied semiconductor protection)
Type of fuse status indicator (EF004473) Top fuse status indicator
Rated switching capacity (EF002563) -kA



Product Datasheet
