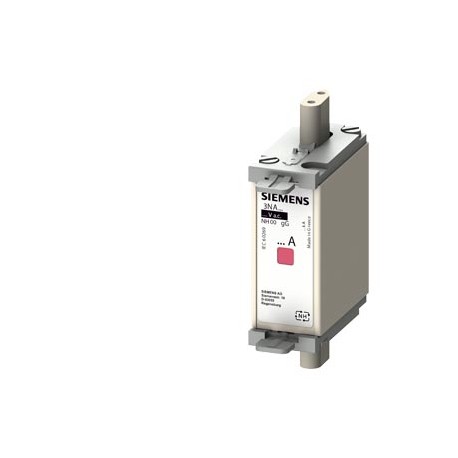

SIEMENS 3NA6830-4 3NA6830-4 SIEMENS LV HRC fuse element, NH000, In: 100 A, gG, Un AC: 400 V, Combined indicator, insulated Gri.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3NA6830-4 SIEMENS LV HRC fuse element, NH000, In: 100 A, gG, Un AC: 400 V, Combined indicator, insulated Gri..

3NA6830-4

68304

SIEMENS

3 Pcs.

LV HRC fuse element, NH000, In: 100 A, gG, Un AC: 400 V, Combined indicator, insulated Grip lugs NH-NON-TENSION GL/GG MAGNA FUSE CARTRIDGE WITH IDENT CENTER. NOTICE T.000, 100A, AC 400V ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 3 Units ** ). Cancelations and returns limited. Consult conditions.

Automation > Low Voltage HRC fuse
NH fuses

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Siemens LV HRC fuse element is a standard protective component used in industrial switchgear and power distribution units to interrupt dangerous fault currents and overloads. It safeguards downstream equipment and cabling effectively. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Product Article Number (Market Facing Number): 3NA6830-4
  • Product family: LV HRC Fuse Links
  • Product Lifecycle (PLM): PM300:Active Product
  • Metal Factor: L-P-----
  • Delivery information Export Control Regulations: AL : N / ECCN : N
  • Standard lead time ex-works: 3 Day/Days
  • Net Weight (kg): 0,131 Kg
  • Packaging Dimension: 65,00 x 84,00 x 62,00
  • Package size unit of measure: MM
  • Quantity Unit: 1 Piece
  • Packaging Quantity: 1
  • Minimum order quantity: 3
  • Additional Product Information EAN: 4001869216713
  • UPC: 040892570441
  • Commodity Code: 85361090
  • LKZ_FDB/ CatalogID: LV10.1

More info

▲
Product
Article Number (Market Facing Number)3NA6830-4
Product DescriptionLV HRC fuse element, NH000, In: 100 A, gG, Un AC: 400 V, Combined indicator, insulated Grip lugs
Product familyLV HRC Fuse Links
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12I / 52F
Surcharge for Raw MaterialsNone
Metal FactorL-P-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works3 Day/Days
Net Weight (kg)0,131 Kg
Packaging Dimension65,00 x 84,00 x 62,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Minimum order quantity3
Additional Product Information
EAN4001869216713
UPC040892570441
Commodity Code85361090
LKZ_FDB/ CatalogIDLV10.1
Product Group5530
Group CodeP310
Country of originGreece
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2006
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass1227-14-20-05
eClass1427-14-20-05
eClass627-14-20-05
eClass7.127-14-20-05
eClass827-14-20-05
eClass927-14-20-05
eClass9.127-14-20-05
ETIM10EC000055
ETIM7EC000055
ETIM8EC000055
ETIM9EC000055
UNSPSC1539-12-16-26

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
