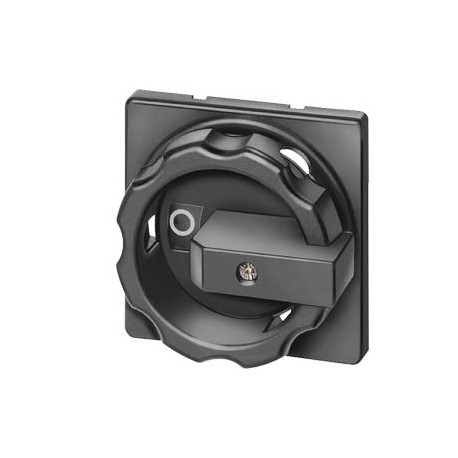

3LD9284-1B SIEMENS rotary operating mechanism, actuating lever black, for four-hole Front mounting, accessor..
3LD9284-1B
92841
SIEMENS
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
SWITCHES-DISCONNECTORS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens rotary operating mechanism featuring a black actuating lever is an ergonomic front-mounted control handle used to manually open and close industrial load disconnect switches. These mechanisms provide clear visual status indication and reliable mechanical switching from enclosure doors.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product Article Number (Market Facing Number): 3LD9284-1B
- Product family: Accessories
- Product Lifecycle (PLM): PM300:Active Product
- Delivery information Export Control Regulations: AL : N / ECCN : N
- Standard lead time ex-works: 3 Day/Days
- Net Weight (kg): 0,151 Kg
- Packaging Dimension: 95,00 x 115,00 x 95,00
- Package size unit of measure: MM
- Quantity Unit: 1 Piece
- Packaging Quantity: 1
- Additional Product Information EAN: 4011209404311
- UPC: Not available
- Commodity Code: 85389099
- LKZ_FDB/ CatalogID: LV10.1
- Product Group: 5887
- Group Code: P360
More info
▲| Product | |||||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3LD9284-1B | ||||||||||||||||||||||||||||||||||||||||||
| Product Description | rotary operating mechanism, actuating lever black, for four-hole Front mounting, accessory for main and emergency switching-off switch 3LD2 for 63A - 125A and for molded case switch 3LD UL for 30A | ||||||||||||||||||||||||||||||||||||||||||
| Product family | Accessories | ||||||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12R / 53P | ||||||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 3 Day/Days | ||||||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,151 Kg | ||||||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 95,00 x 115,00 x 95,00 | ||||||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||||||||
| EAN | 4011209404311 | ||||||||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85389099 | ||||||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | ||||||||||||||||||||||||||||||||||||||||||
| Product Group | 5887 | ||||||||||||||||||||||||||||||||||||||||||
| Group Code | P360 | ||||||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Given | ||||||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | ||||||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||||||||
| SCIP number | |||||||||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||
