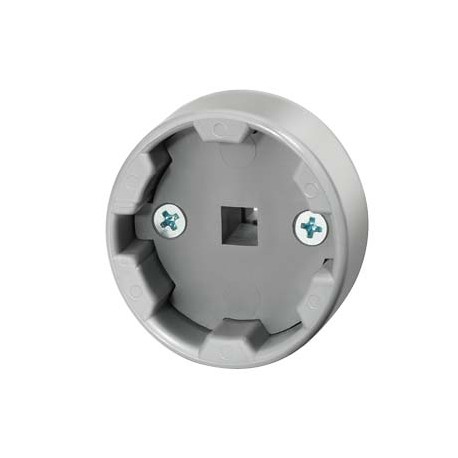

3LD9242-4F SIEMENS coupling, without ON Interlock, accessory for Main and emergency switching-off switch 3LD..
3LD9242-4F
92424
SIEMENS
5 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
SWITCHES-DISCONNECTORS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed as a coupling component without ON interlock, the Siemens 3LD9242-4F supports the mechanical actuation mechanism of main and emergency switching-off devices. These coupling elements link panel doors to internal disconnect switches while maintaining reliable operational safety.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- design of the product: accessories for 3LD23/24 main and EMERGENCY-STOP switches
- Downloads and manuals General Product Approval: Test Certificates
- Product Article Number (Market Facing Number): 3LD9242-4F
- Product family: Accessories
- Product Lifecycle (PLM): PM300:Active Product
- Delivery information Export Control Regulations: AL : N / ECCN : N
- Standard lead time ex-works: 130 Day/Days
- Net Weight (kg): 0,035 Kg
- Packaging Dimension: 55,00 x 55,00 x 31,00
- Package size unit of measure: MM
- Quantity Unit: 1 Piece
- Packaging Quantity: 1
- Minimum order quantity: 5
- Additional Product Information EAN: 4011209855731
- UPC: Not available
- Commodity Code: 85389099
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3LD9242-4F | |||||||||||||||||||||||||||||||||
| Product Description | coupling, without ON Interlock, accessory for Main and emergency switching-off switch 3LD23/24 | |||||||||||||||||||||||||||||||||
| Product family | Accessories | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12R / 1CL | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 130 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,035 Kg | |||||||||||||||||||||||||||||||||
| Packaging Dimension | 55,00 x 55,00 x 31,00 | |||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Minimum order quantity | 5 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | 4011209855731 | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 85389099 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | |||||||||||||||||||||||||||||||||
| Product Group | 5887 | |||||||||||||||||||||||||||||||||
| Group Code | P360 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Given | |||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology
| Value | Unit | |
|---|---|---|
| Type of accessory/spare part (EF000215) | - |
