SIEMENS 3LD3410-0TK05 3LD3410-0TK05 SIEMENS Load disconnector 3LD3, Iu 63 A Main switch 3-pole Rated operating capacity at AC-23 A.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

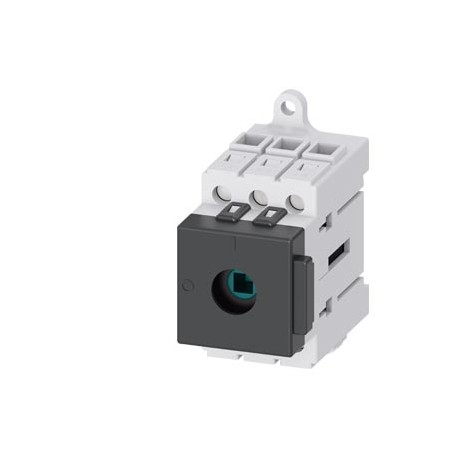

3LD3410-0TK05 SIEMENS Load disconnector 3LD3, Iu 63 A Main switch 3-pole Rated operating capacity at AC-23 A..

3LD3410-0TK05

34100

SIEMENS

1 Pcs.

Load disconnector 3LD3, Iu 63 A Main switch 3-pole Rated operating capacity at AC-23 A at 400V 22.0 kW Installation in distribution boards, Basic switch without Knob-operated mechanism INTERR. PPAL 3LD3 3 POLES, Iu 63A P/AC WITH 400V= 22.0 kW MOUNTING ON DISTRIBUTION BOARDS WITH CRUTCH DRIVE. Cancelations and returns limited. Consult conditions.

Connectors > Switch disconnector
SWITCHES-DISCONNECTORS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

Load disconnector 3LD3, Iu 63 A Main switch 3-pole Rated operating capacity at AC-23 A at 400V 22.0 kW Installation in distribution boards, Basic switch without Knob-operated mechanism
Model
product brand nameSENTRON
product designation3LD Switch disconnector
design of the productSwitch
display version / for switch position indicator manual operation1 ON - 0 OFF
design of the actuating elementWithout handle
design of handlewithout
type of the driving mechanism / motor driveNo
General technical data
number of poles3
number of poles / note3
type of devicefixed mounting
type of switchDIN-rail mounting
mechanical service life (switching cycles) / typical100 000
electrical endurance (switching cycles)
● at AC-23 A / at 690 V6 000
I2t value / with closed switch / at 690 V / for combination switch + gG fuse / maximum21 kA2.s
let-through I2t value / with closed switch / at 440 V / for combination switch + gG fuse / maximum21 kA2.s
operating frequency / maximum50 1/h
Voltage
insulation voltage / rated value690 V
surge voltage resistance / rated value6 kV
Protection class
protection class IPIP20
protection class IP / on the frontIP20
Dissipation
power loss [W]
● for rated value of the current / at AC / in hot operating state / per pole4.5 W
● per conductor / typical5 W
Current
operational current
● at 40 °C / rated value63 A
● at 45 °C / rated value63 A
● at 50 °C / rated value63 A
● at 55 °C / rated value63 A
● at AC / rated value63 A
● at AC-23 A / at 400 V / rated value43 A
● at AC-21 / at 690 V / rated value63 A
● at AC-21 A / at 240 V / rated value63 A
● at AC-21 A / at 440 V / rated value63 A
operational current / of upstream fuse / rated value63 A
let-through current / with closed switch
● at 440 V / for combination switch + gG fuse / maximum6 kA
● at 690 V / for combination switch + gG fuse / maximum permissible6 kA
Main circuit
operating power
● at AC-23 A / at 240 V / rated value11 kW
● at AC-23 A / at 400 V / rated value22 kW
● at AC-23 A / at 440 V / rated value22 kW
● at AC-23 A / at 690 V / rated value19 kW
● at AC-3 / at 240 V / rated value11 kW
● at AC-3 / at 400 V / rated value19 kW
● at AC-3 / at 690 V / rated value15 kW
operational current / rated value63 A
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
number of NC contacts / for auxiliary contacts0
number of NO contacts / for auxiliary contacts0
operating voltage / of auxiliary contacts / at AC / maximum500 V
continuous current / of the auxiliary contact / rated value10 A
insulation voltage / of the auxiliary switch / rated value500 V
Suitability
suitability for use
● main switchYes
● switch disconnectorYes
● EMERGENCY OFF switchYes
● safety switchYes
● maintenance/repair switchYes
Product details
product feature
● can be locked into OFF positionNo
number of bracket locks / maximum2
hasp thickness / of the bracket locks / minimum4 mm
hasp thickness / of the bracket locks / maximum6 mm
special product featureBasic Switch
product extension / optional
● motor driveNo
● voltage triggerNo
Short circuit
conditional short-circuit current / with line-side fuse protection
● at 440 V / by gG fuse / rated value10 kA
● at 690 V / by gG fuse / rated value6 kA
according UL
operational current / at AC / according to UL 508/UL 60947-4-1 / rated value63 A
operating voltage / at AC / at 50/60 Hz / according to UL 508/UL 60947-4-1 / rated value600 V
active power [hp] / at AC / at 480 V / according to UL 508/UL 60947-4-1 / rated value25
active power [hp] / at AC / at 600 V / according to UL 508/UL 60947-4-1 / rated value30
short-time withstand current (SCCR) / at 600 V / according to UL 508/UL 60947-4-15 kA
continuous current / of upstream fuse / according to UL / rated value50 A
type of fuse / according to ULRK5
Number
number of connectable NC contacts / for auxiliary contacts / attachable / maximum2
number of connectable NO contacts / for auxiliary contacts / attachable / maximum4
number of connectable CO contacts / for auxiliary contacts / attachable / maximum0
Connections
AWG number / as coded connectable conductor cross section / solid
● maximum6
● minimum14
type of connectable conductor cross-sections / for copper conductor
● solid1x (2.5 to 16 mm²)
● finely stranded / with core end processing1x (2.5...16 mm²)
● stranded1x (2.5 to 16 mm²)
type of connectable conductor cross-sections / for auxiliary contacts
● solid2x (0.75 ... 2.5 mm²), 1x 4 mm²
● finely stranded / with core end processing2x (0.75 ... 1.5 mm²), 1x 2.5 mm²
● stranded2x (0.75 ... 2.5 mm²), 1x 4 mm²
type of electrical connection
● for main current circuitbox terminal
● for auxiliary contactsBox terminals
Requirements
design of the fuse link
● for short-circuit protection of the main circuit / requiredfuse gL/gG: 63 A
● for short-circuit protection of the auxiliary switch / requiredfuse gL/gG: 10 A
Mechanical Design
height60 mm
width36 mm
depth64 mm
fastening methodBuilt-in unit fixed-mounted version
fastening method
● 4-hole front mountingNo
● front mounting with central attachmentNo
● rail mountingYes
net weight200 g
Environmental conditions
ambient temperature / during operation
● minimum-25 °C
● maximum55 °C
ambient temperature / during storage / minimum-25 °C

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CCC

Confirmation

UL

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

other

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/17/2022


Additional data

Product
Article Number (Market Facing Number)3LD3410-0TK05
Product DescriptionLoad disconnector 3LD3, Iu 63 A Main switch 3-pole Rated operating capacity at AC-23 A at 400V 22.0 kW Installation in distribution boards, Basic switch without Knob-operated mechanism
Product familyBasic Devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12R / 1CL
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works130 Day/Days
Net Weight (kg)0,150 Kg
Packaging Dimension68,00 x 79,00 x 110,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869551685
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDLV10
Product Group5887
Group CodeP360
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.09.2006
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-14-03
eClass7.127-37-14-03
eClass827-37-14-03
eClass927-37-14-03
eClass9.127-37-14-03
ETIM5EC000216
ETIM6EC000216
ETIM7EC000216
ETIM8EC000216
UNSPSC1539-12-22-33

ETIM data

ETIM: EC000216 - Switch disconnector

Value Unit
Rated permanent current at AC-23, 400 V (EF011777) -A
Number of switches (EF005586) -
Degree of protection (NEMA) (EF011959) -
Version as main switch (EF006981) true
Version as maintenance-/service switch (EF006986) true
Version as safety switch (EF006985) true
Version as emergency stop installation (EF006959) true
Version as reversing switch (EF009408) false
Max. rated operation voltage Ue AC (EF007355) 690V
Rated permanent current Iu (EF001389) 63.0A
Rated permanent current at AC-21, 400 V (EF009165) 63A
Rated operation power at AC-3, 400 V (EF001364) 18.5kW
Rated short-time withstand current lcw (EF007050) 1.0kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 1
Number of auxiliary contacts as normally open contact (EF001376) 1
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) false
Motor drive integrated (EF006697) false
Voltage release optional (EF007491) false
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for floor mounting (EF007243) FALSE
Suitable for front mounting 4-hole (EF007247) false
Suitable for front mounting centre (EF007248) false
Suitable for distribution board installation (EF007262) true
Suitable for intermediate mounting (EF007264) true
Colour control element (EF007167) Other
Type of control element (EF006976) None
Interlockable (EF006281) true
Type of electrical connection of main circuit (EF006819) Frame clamp
Degree of protection (IP), front side (EF003118) IP20
Rated operating voltage (EF001435) -V
Switching power at 400 V (EF009166) -kW
Conditioned rated short-circuit current Iq (EF001444) -kA
Rated operation power at AC-23, 400 V (EF007027) -kW



Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
