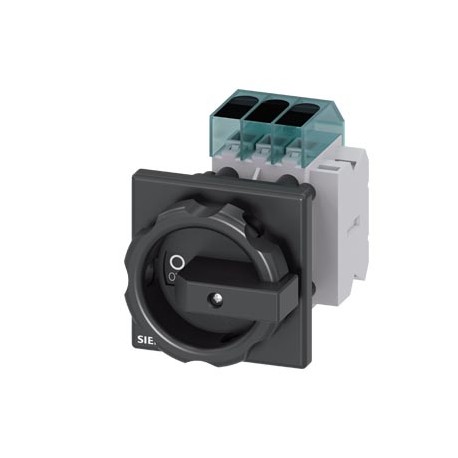

SIEMENS 3LD3354-1TK51 3LD3354-1TK51 SIEMENS 3LD3 switch disconnector, Iu 40 A main switch 3-pole rated operational power at AC-23 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3LD3354-1TK51 SIEMENS 3LD3 switch disconnector, Iu 40 A main switch 3-pole rated operational power at AC-23 ..

3LD3354-1TK51

33541

SIEMENS

1 Pcs.

3LD3 switch disconnector, Iu 40 A main switch 3-pole rated operational power at AC-23 A at 400 V 18.5 kW front plate mounting basic switch with center-hole mounting 22.5 mm knob-operated mechanism black 66x66 mm with auxiliary switches 1 NO + 1 NC INTERR. PPAL 3LD3 3 POLES, Iu 40A P / AC WITH 400V = 15.0 kW FRONT FIXING FIXING IN SINGLE DRILL 22.5 mm BLACK MANETA 66 x66 mm WITH AUXILIARY CONTACTS 1NA + 1NC. Cancelations and returns limited. Consult conditions.

Connectors > Switch disconnector
SWITCHES-DISCONNECTORS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product
Article Number (Market Facing Number)3LD3354-1TK51
Product Description3LD3 switch disconnector, Iu 40 A main switch 3-pole rated operational power at AC-23 A at 400 V 18.5 kW front plate mounting basic switch with center-hole mounting 22.5 mm knob-operated mechanism black 66x66 mm with auxiliary switches 1 NO + 1 NC
Product familyBasic Devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12R / 53P
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works3 Day/Days
Net Weight (kg)0,254 Kg
Packaging Dimension79,00 x 85,00 x 110,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869551647
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDLV10
Product Group5887
Group CodeP360
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.09.2006
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass1227-37-14-03
eClass1427-37-14-03
eClass627-37-14-03
eClass7.127-37-14-03
eClass827-37-14-03
eClass927-37-14-03
eClass9.127-37-14-03
ETIM10EC000216
ETIM7EC000216
ETIM8EC000216
ETIM9EC000216
UNSPSC1539-12-22-33

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
