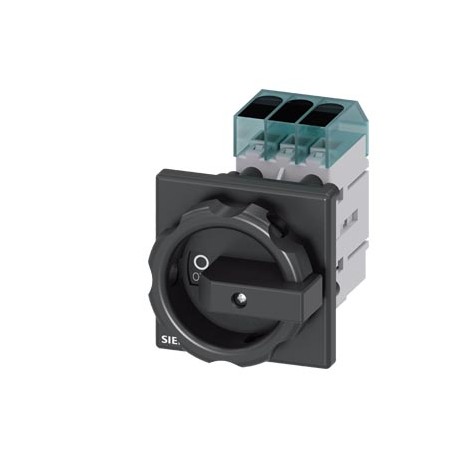

3LD3354-0TK51 SIEMENS Load disconnector 3LD3, Iu 40 A Main switch 3-pole Rated operating capacity at AC-23 A..
3LD3354-0TK51
33540
SIEMENS
1 Pcs.
Connectors > Switch disconnector
SWITCHES-DISCONNECTORS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A load disconnector acts as a primary switching device capable of safely making and breaking operational currents under normal load conditions in industrial installations. Panel builders typically utilize these components as main switches to control incoming power feeds to machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product Article Number (Market Facing Number): 3LD3354-0TK51
- Product family: Basic Devices
- Product Lifecycle (PLM): PM300:Active Product
- Delivery information Export Control Regulations: AL : N / ECCN : N
- Standard lead time ex-works: 3 Day/Days
- Net Weight (kg): 0,237 Kg
- Packaging Dimension: 79,00 x 85,00 x 110,00
- Package size unit of measure: MM
- Quantity Unit: 1 Piece
- Packaging Quantity: 1
- Additional Product Information EAN: 4001869551609
- UPC: Not available
- Commodity Code: 85365080
- LKZ_FDB/ CatalogID: LV10
- Product Group: 5887
- Group Code: P360
More info
▲| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3LD3354-0TK51 | |||||||||||||||||||||||||||||||||||||||
| Product Description | Load disconnector 3LD3, Iu 40 A Main switch 3-pole Rated operating capacity at AC-23 A at 400 V 18.5 kW Front plate mounting Basic switch with Central hole mounting 22.5mm Toggle drive black 66x66 mm | |||||||||||||||||||||||||||||||||||||||
| Product family | Basic Devices | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12R / 53P | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 3 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,237 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 79,00 x 85,00 x 110,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4001869551609 | |||||||||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85365080 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5887 | |||||||||||||||||||||||||||||||||||||||
| Group Code | P360 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2006 | |||||||||||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| SCIP number | ||||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
