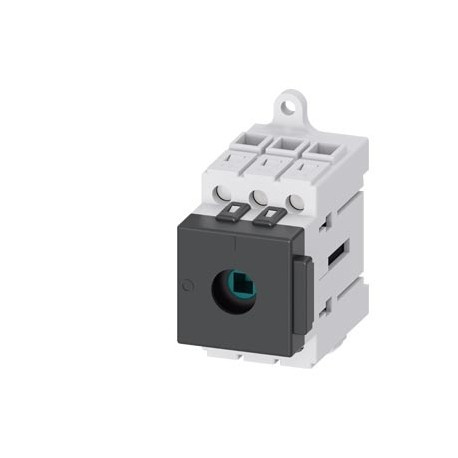

3LD3010-0TK05 SIEMENS Load disconnector 3LD3, Iu 16 A Main switch 3-pole Rated operating capacity at AC-23 A..
3LD3010-0TK05
30100
SIEMENS
1 Pcs.
Connectors > Switch disconnector
SWITCHES-DISCONNECTORS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens 3LD3010-0TK05 Load disconnector 3LD3, Iu 16 A Main switch 3-pole Rated operating capacity at AC-23 A functions as a reliable mechanical switching device used to safely disconnect electrical circuits from power supplies during maintenance or emergency procedures. These industrial components provide visible break contacts to ensure equipment is completely de-energized.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product Article Number (Market Facing Number): 3LD3010-0TK05
- Product family: Basic Devices
- Product Lifecycle (PLM): PM300:Active Product
- Delivery information Export Control Regulations: AL : N / ECCN : N
- Standard lead time ex-works: 3 Day/Days
- Net Weight (kg): 0,148 Kg
- Packaging Dimension: 68,00 x 79,00 x 110,00
- Package size unit of measure: MM
- Quantity Unit: 1 Piece
- Packaging Quantity: 1
- Additional Product Information EAN: 4001869549934
- UPC: Not available
- Commodity Code: 85365080
- LKZ_FDB/ CatalogID: LV10
- Product Group: 5887
- Group Code: P360
More info
▲| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3LD3010-0TK05 | |||||||||||||||||||||||||||||||||||||||
| Product Description | Load disconnector 3LD3, Iu 16 A Main switch 3-pole Rated operating capacity at AC-23 A at 400V 7.5kW Installation in distribution boards, Basic switch without Knob-operated mechanism | |||||||||||||||||||||||||||||||||||||||
| Product family | Basic Devices | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12R / 53P | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 3 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,148 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 68,00 x 79,00 x 110,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4001869549934 | |||||||||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85365080 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10 | |||||||||||||||||||||||||||||||||||||||
| Product Group | 5887 | |||||||||||||||||||||||||||||||||||||||
| Group Code | P360 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2006 | |||||||||||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| SCIP number | ||||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
