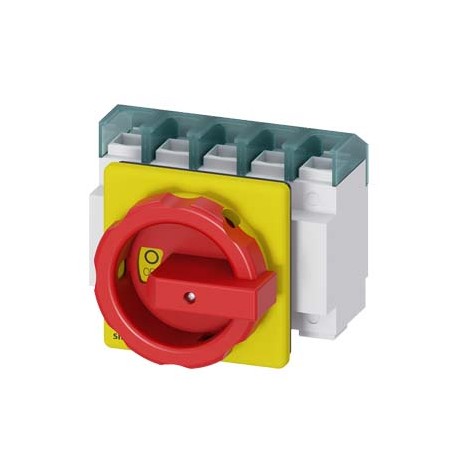

SIEMENS 3LD2704-2TC53 3LD2704-2TC53 SIEMENS SENTRON, Switch disconnector 3LD, emergency switching-off switch, 4- pole, 100 A, oper.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3LD2704-2TC53 SIEMENS SENTRON, Switch disconnector 3LD, emergency switching-off switch, 4- pole, 100 A, oper..

3LD2704-2TC53

27042

SIEMENS

1 Pcs.

SENTRON, Switch disconnector 3LD, emergency switching-off switch, 4- pole, 100 A, operating power at AC-23 A at 400 V: 37 kW, front-mounted, rotary operating mechanism, Red / yellow, 4-hole mounting of the handle INTERR. PPAL/PAR. EMERG. IU=100, P/AC-23A WITH 400V=37KW FIXED FRONT FIXATION FOUR HOLES ACTION. ROTATING RED/YELLOW + 1 TERMINAL N + 1 BORNA PE +++ SPECIAL VERSION +++ FULLY ASSEMBLED. Manufactured to order. Non-Cancelable Non-Returnable.

Connectors > Switch disconnector
SWITCHES-DISCONNECTORS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product
Article Number (Market Facing Number)3LD2704-2TC53
Product DescriptionSENTRON, Switch disconnector 3LD, emergency switching-off switch, 4- pole, 100 A, operating power at AC-23 A at 400 V: 37 kW, front-mounted, rotary operating mechanism, Red / yellow, 4-hole mounting of the handle
Product familyBasic Devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12R / 53P
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works3 Day/Days
Net Weight (kg)0,677 Kg
Packaging Dimension131,00 x 99,00 x 126,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209680555
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDLV10.1
Product Group5887
Group CodeP360
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 27.10.2006
Product classC: products manufactured / produced to order, which cannot be reused or re-utilized or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass1227-37-14-03
eClass1427-37-14-03
eClass627-37-14-03
eClass7.127-37-14-03
eClass827-37-14-03
eClass927-37-14-03
eClass9.127-37-14-03
ETIM10EC000216
ETIM7EC000216
ETIM8EC000216
ETIM9EC000216
UNSPSC1539-12-22-33
