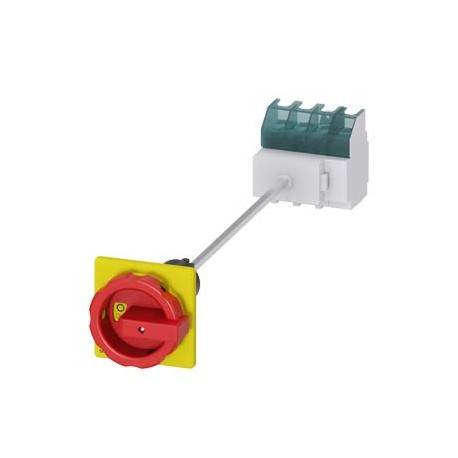

SIEMENS 3LD2545-1TL53 3LD2545-1TL53 SIEMENS SENTRON, Switch disconnector 3LD, emergency switching-off switch, 4- pole, Iu: 63 A, o.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3LD2545-1TL53 SIEMENS SENTRON, Switch disconnector 3LD, emergency switching-off switch, 4- pole, Iu: 63 A, o..

3LD2545-1TL53

25451

SIEMENS

1 Pcs.

SENTRON, Switch disconnector 3LD, emergency switching-off switch, 4- pole, Iu: 63 A, operating power / at AC-23 A 400 V: 22 kW, floor mounting with door coupling, rotary operating mechanism, Red / yellow, central mounting 22.5 mm of the handle INT. PPAL/EMERGENCY 4 POLES IU=63, P/AC-23A AT 400V=22KW BASE FIXING TO PROFILE/TWO HOLES ACTION. RED/YELLOW SWIVEL.

Connectors > Switch disconnector
SWITCHES-DISCONNECTORS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This 3LD2545-1TL53 Siemens Sentron switch disconnector serves as a dedicated emergency switching-off device for safely isolating electrical distribution circuits. Such four-pole components protect personnel and equipment by cutting power supplies in commercial and industrial automation systems.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Product Article Number (Market Facing Number): 3LD2545-1TL53
  • Product family: Basic Devices
  • Product Lifecycle (PLM): PM300:Active Product
  • Metal Factor: LAO-----
  • Delivery information Export Control Regulations: AL : N / ECCN : N
  • Standard lead time ex-works: 3 Day/Days
  • Net Weight (kg): 0,758 Kg
  • Packaging Dimension: 142,00 x 475,00 x 113,00
  • Package size unit of measure: MM
  • Quantity Unit: 1 Piece
  • Packaging Quantity: 1
  • Additional Product Information EAN: 4011209403437
  • UPC: 754554732756
  • Commodity Code: 85365080
  • LKZ_FDB/ CatalogID: LV10.1
  • Product Group: 5887

More info

▲
Product
Article Number (Market Facing Number)3LD2545-1TL53
Product DescriptionSENTRON, Switch disconnector 3LD, emergency switching-off switch, 4- pole, Iu: 63 A, operating power / at AC-23 A 400 V: 22 kW, floor mounting with door coupling, rotary operating mechanism, Red / yellow, central mounting 22.5 mm of the handle
Product familyBasic Devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12R / 53P
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works3 Day/Days
Net Weight (kg)0,758 Kg
Packaging Dimension142,00 x 475,00 x 113,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209403437
UPC754554732756
Commodity Code85365080
LKZ_FDB/ CatalogIDLV10.1
Product Group5887
Group CodeP360
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveGiven
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass1227-37-14-03
eClass1427-37-14-03
eClass627-37-14-03
eClass7.127-37-14-03
eClass827-37-14-03
eClass927-37-14-03
eClass9.127-37-14-03
ETIM10EC000216
ETIM7EC000216
ETIM8EC000216
ETIM9EC000216
UNSPSC1539-12-22-33

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
