3LD2248-0TK51 SIEMENS SENTRON, Switch disconnector 3LD, main switch, 3-pole, Iu: 32 A, Operating power / at ..
3LD2248-0TK51
22480
SIEMENS
1 Pcs.

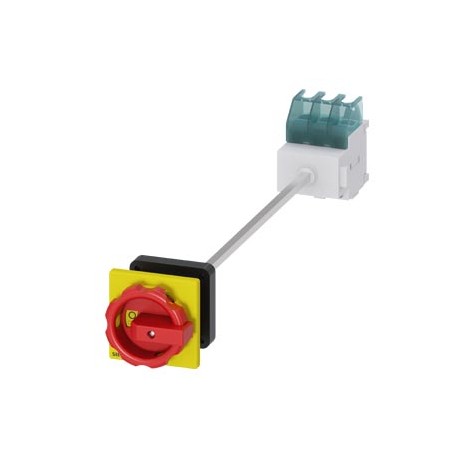

SENTRON, Switch disconnector 3LD, main switch, 3-pole, Iu: 32 A, Operating power / at AC-23 A at 400 V: 11.5 kW, floor mounting with door coupling, rotary operating mechanism, black, central mounting 22.5 mm of the handle, without tolerance compensation
INTERR.PPAL./PAR. EMERG. 3 poles IU=32, P/AC-23A WITH 400V=11,5KW FIXATION BASED FIXATION PROFILE/2 HOLES MYO ROTATING DOOR NETAMO FIXING CENTRAL DRILL. Manufactured to order. Non-Cancelable Non-Returnable.
Connectors > Switch disconnector
SWITCHES-DISCONNECTORS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A SIEMENS SENTRON, Switch disconnector 3LD serves as a primary mechanical control device used to safely disconnect machinery and electrical equipment from the main power supply during maintenance or emergency procedures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: 3LD Switch disconnector
- design of the product: Main switch
- design of the actuating element: Short rotary knob
- design of handle: rotary operating mechanism, black
- type of the driving mechanism / motor drive: No
- General technical data number of poles: 3
- type of device: fixed mounting
- type of switch: Floor mounting with door coupling
- size of switch disconnector: 2
- mechanical service life (switching cycles) / typical: 100 000
- ● at AC-23 A / at 690 V: 6 000
- operating frequency / maximum: 50 1/h
- Voltage insulation voltage / rated value: 690 V
- surge voltage resistance / rated value: 6 kV
- Protection class protection class IP: IP65
- degree of protection NEMA rating: 1, 3R, 4X, 12
More info
▲Technical data
Additional data
| Product | ||
| Article Number (Market Facing Number) | 3LD2248-0TK51 | |
| Product Description | SENTRON, Switch disconnector 3LD, main switch, 3-pole, Iu: 32 A, Operating power / at AC-23 A at 400 V: 11.5 kW, floor mounting with door coupling, rotary operating mechanism, black, central mounting 22.5 mm of the handle, without tolerance compensation | |
| Product family | Not available | |
| Product Lifecycle (PLM) | PM300:Active Product | |
| Price data | ||
| Region Specific PriceGroup / Headquarter Price Group | 12R / 1CL | |
| Surcharge for Raw Materials | None | |
| Metal Factor | LAO----- | |
| Delivery information | ||
| Export Control Regulations | ECCN : N / AL : N | |
| Standard lead time ex-works | 80 Day/Days | |
| Net Weight (kg) | 0,407 Kg | |
| Package size unit of measure | Not available | |
| Quantity Unit | 1 Piece | |
| Packaging Quantity | 1 | |
| Additional Product Information | ||
| EAN | 4011209559110 | |
| UPC | Not available | |
| Commodity Code | 85365080 | |
| LKZ_FDB/ CatalogID | LV10.1 | |
| Product Group | 5887 | |
| Group Code | P360 | |
| Country of origin | Germany | |
| Compliance with the substance restrictions according to RoHS directive | Given | |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |
| Classifications | ||
| Not available | ||
ETIM data
ETIM: EC000216 - Switch disconnector
| Value | Unit | |
|---|---|---|
| Degree of protection (NEMA) (EF011959) | - | |
| Version as main switch (EF006981) | true | |
| Version as maintenance-/service switch (EF006986) | true | |
| Version as safety switch (EF006985) | true | |
| Version as emergency stop installation (EF006959) | false | |
| Version as reversing switch (EF009408) | false | |
| Number of switches (EF005586) | 1 | |
| Max. rated operation voltage Ue AC (EF007355) | 690 | V |
| Rated permanent current Iu (EF001389) | 32.0 | A |
| Rated permanent current at AC-23, 400 V (EF011777) | - | A |
| Rated permanent current at AC-21, 400 V (EF009165) | 32 | A |
| Rated operation power at AC-3, 400 V (EF001364) | 9.5 | kW |
| Rated short-time withstand current lcw (EF007050) | 0.64 | kA |
| Rated operation power at AC-23, 400 V (EF007027) | 0.0115 | kW |
| Number of poles (EF001391) | 3 | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 | |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 | |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 | |
| Motor drive optional (EF007386) | false | |
| Motor drive integrated (EF006697) | false | |
| Voltage release optional (EF007491) | false | |
| Device construction (EF008240) | Built-in device fixed built-in technique | |
| Suitable for floor mounting (EF007243) | FALSE | |
| Suitable for front mounting 4-hole (EF007247) | false | |
| Suitable for front mounting centre (EF007248) | true | |
| Suitable for distribution board installation (EF007262) | true | |
| Suitable for intermediate mounting (EF007264) | true | |
| Colour control element (EF007167) | Black | |
| Type of control element (EF006976) | Short thumb-grip | |
| Interlockable (EF006281) | true | |
| Type of electrical connection of main circuit (EF006819) | Frame clamp | |
| Degree of protection (IP), front side (EF003118) | IP65 | |
| Rated operating voltage (EF001435) | - | V |
| Switching power at 400 V (EF009166) | - | kW |
| Conditioned rated short-circuit current Iq (EF001444) | - | kA |
