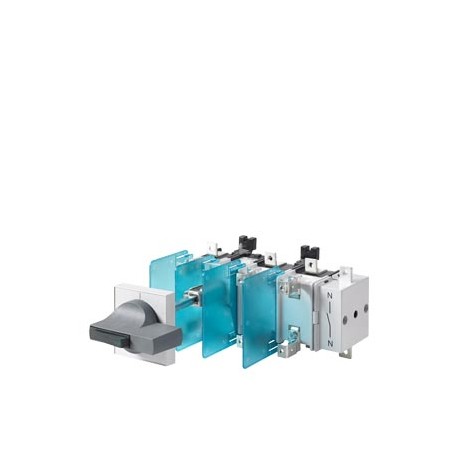

3KL5340-1AJ01 SIEMENS Switch disconnector with fuse in new design Iu 160 A, Ue 690 V, 4-pole for BS88 fuse f..
3KL5340-1AJ01
53401
SIEMENS
1 Pcs.
Connectors > Switch disconnector
SWITCHES-DISCONNECTORS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Siemens 3KL5340-1AJ01 switch disconnector with fuse is an integrated switching and protection assembly used to guard electrical distribution networks against overloads and short circuits. These fused disconnect units are standard across industrial facilities for managing high-capacity feeder circuits and motor loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): true
- Version as maintenance-/service switch (EF006986): true
- Version as safety switch (EF006985): true
- Version as emergency stop installation (EF006959): true
- Max. rated operation voltage Ue AC (EF007355): 690
- Rated permanent current Iu (EF001389): 160.0
- Rated permanent current at AC-23, 400 V (EF011777): 160
- Rated operation power at AC-23, 400 V (EF007027): 80.0
- Number of poles (EF001391): 4
- Motor drive optional (EF007386): false
- Motor drive integrated (EF006697): false
- Voltage release optional (EF007491): false
- Device construction (EF008240): Built-in device fixed built-in technique
- Suitable for floor mounting (EF007243): FALSE
- Suitable for front mounting 4-hole (EF007247): false
- Suitable for front mounting centre (EF007248): false
More info
▲ETIM: EC000216 - Switch disconnector
| Value | Unit | |
|---|---|---|
| Rated short-time withstand current lcw (EF007050) | - | kA |
| Degree of protection (NEMA) (EF011959) | - | |
| Colour control element (EF007167) | - | |
| Rated permanent current at AC-21, 400 V (EF009165) | - | A |
| Number of switches (EF005586) | - | |
| Rated operating voltage (EF001435) | - | V |
| Version as reversing switch (EF009408) | - | |
| Switching power at 400 V (EF009166) | - | kW |
| Version as main switch (EF006981) | true | |
| Version as maintenance-/service switch (EF006986) | true | |
| Version as safety switch (EF006985) | true | |
| Version as emergency stop installation (EF006959) | true | |
| Max. rated operation voltage Ue AC (EF007355) | 690 | V |
| Rated permanent current Iu (EF001389) | 160.0 | A |
| Rated permanent current at AC-23, 400 V (EF011777) | 160 | A |
| Rated operation power at AC-23, 400 V (EF007027) | 80.0 | kW |
| Number of poles (EF001391) | 4 | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 | |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 | |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 | |
| Motor drive optional (EF007386) | false | |
| Motor drive integrated (EF006697) | false | |
| Voltage release optional (EF007491) | false | |
| Device construction (EF008240) | Built-in device fixed built-in technique | |
| Suitable for floor mounting (EF007243) | FALSE | |
| Suitable for front mounting 4-hole (EF007247) | false | |
| Suitable for front mounting centre (EF007248) | false | |
| Suitable for distribution board installation (EF007262) | false | |
| Suitable for intermediate mounting (EF007264) | false | |
| Type of control element (EF006976) | Other | |
| Interlockable (EF006281) | true | |
| Type of electrical connection of main circuit (EF006819) | Other | |
| Degree of protection (IP), front side (EF003118) | IP00 | |
| Conditioned rated short-circuit current Iq (EF001444) | - | kA |
| Rated operation power at AC-3, 400 V (EF001364) | - | kW |
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3KL5340-1AJ01 | ||||||||||||||||||||||||||||||||||||
| Product Description | Switch disconnector with fuse in new design Iu=160 A, Ue = 690 V, 4-pole for BS88 fuse form A4 basic version without 8UC6 handle and shaft 4th pole selectable, without fuse | ||||||||||||||||||||||||||||||||||||
| Product family | Not available | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM400:Phase Out Started | ||||||||||||||||||||||||||||||||||||
| PLM Effective Date | Product phase-out since: 31.08.2018 | ||||||||||||||||||||||||||||||||||||
| Notes | Sucessor:3KF2416-0MF11, different dimensions, some deviating technical values. | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Price Group | 12S | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | LAO----- | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 15 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 2,390 Kg | ||||||||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 183,00 x 268,00 x 199,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4011209470477 | ||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85362090 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | ||||||||||||||||||||||||||||||||||||
| Product Group | 5853 | ||||||||||||||||||||||||||||||||||||
| Group Code | P360 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Given | ||||||||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
