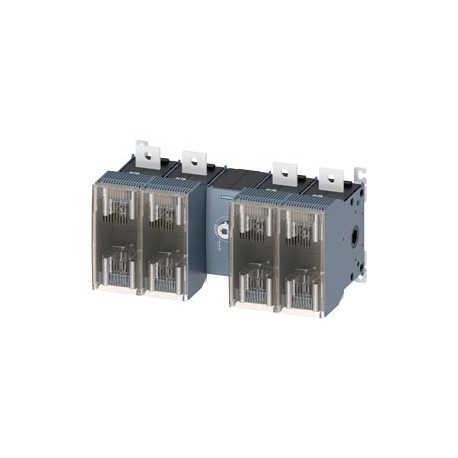

3KF5463-0MF11 SIEMENS Switch disconnector with fuse 630 A, Size 5, 4-pole for LV HRC fuse Sz. 2 and 3 Front ..
3KF5463-0MF11
54630
SIEMENS
1 Pcs.
Connectors > Switch disconnector
SWITCHES-DISCONNECTORS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A fused switch disconnector such as the 3KF5463-0MF11 SIEMENS Switch disconnector with fuse 630 A, Size 5, 4-pole for LV HRC fuse Sz. 2 and 3 Front .. provides integrated circuit protection and manual disconnection in heavy power distribution panels. These units accept standard industrial fuses to guard against short circuits while allowing secure line isolation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- design of the product: 3KF switch disconnector with fuses
- product variations: 3KF NH
- design of the actuating element: without
- design of handle: Without
- direction of actuation: from the front
- type of the driving mechanism / motor drive: No
- number of poles: 4
- size of disconnecting link: 3 and 2
- size of switch disconnector: 5
- size of fuse link: NH2, NH3
- mechanical service life (switching cycles) / typical: 6 000
- ● at AC-23 A / at 440 V: 1 500
- ● at AC-23 A / at 690 V: 1 000
- ● at DC-23 A / at 440 V: 1 000
- ● of the fuse / at 500 V / maximum permissible: 10 400 000 A²·s
- ● of the gG fuse / at 690 V / maximum permissible: 7 000 000 A²·s
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3KF5463-0MF11 | ||||||||||||||||||||||||||||||
| Product Description | Switch disconnector with fuse 630 A, Size 5, 4-pole for LV HRC fuse Sz. 2 and 3 Front operating mechanism center Basic unit without handle flat terminal | ||||||||||||||||||||||||||||||
| Product family | SENTRON 3KF Switch Disconnectors with Fuses | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12S / 1DL | ||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
| Metal Factor | LAO----- | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||
| Standard lead time ex-works | 5 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 21,000 Kg | ||||||||||||||||||||||||||||||
| Packaging Dimension | 600,00 x 320,00 x 320,00 | ||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | 4001869536576 | ||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||
| Commodity Code | 85365080 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10 | ||||||||||||||||||||||||||||||
| Product Group | 5379 | ||||||||||||||||||||||||||||||
| Group Code | P360 | ||||||||||||||||||||||||||||||
| Country of origin | China | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 31.01.2016 | ||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000216 - Switch disconnector
| Value | Unit | |
|---|---|---|
| Rated permanent current at AC-23, 400 V (EF011777) | - | A |
| Version as main switch (EF006981) | true | |
| Version as maintenance-/service switch (EF006986) | true | |
| Version as safety switch (EF006985) | true | |
| Version as emergency stop installation (EF006959) | true | |
| Version as reversing switch (EF009408) | false | |
| Number of switches (EF005586) | - | |
| Max. rated operation voltage Ue AC (EF007355) | 690 | V |
| Rated permanent current Iu (EF001389) | 630.0 | A |
| Rated permanent current at AC-21, 400 V (EF009165) | 630 | A |
| Rated short-time withstand current lcw (EF007050) | 22.0 | kA |
| Rated operation power at AC-23, 400 V (EF007027) | 355.0 | kW |
| Switching power at 400 V (EF009166) | 355.0 | kW |
| Number of poles (EF001391) | 4 | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 8 | |
| Number of auxiliary contacts as normally open contact (EF001376) | 8 | |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 | |
| Motor drive optional (EF007386) | false | |
| Motor drive integrated (EF006697) | false | |
| Voltage release optional (EF007491) | false | |
| Device construction (EF008240) | Built-in device fixed built-in technique | |
| Suitable for floor mounting (EF007243) | FALSE | |
| Suitable for front mounting 4-hole (EF007247) | false | |
| Suitable for front mounting centre (EF007248) | false | |
| Suitable for distribution board installation (EF007262) | false | |
| Suitable for intermediate mounting (EF007264) | false | |
| Colour control element (EF007167) | Other | |
| Type of control element (EF006976) | None | |
| Interlockable (EF006281) | false | |
| Type of electrical connection of main circuit (EF006819) | Other | |
| Degree of protection (IP), front side (EF003118) | IP00 | |
| Degree of protection (NEMA) (EF011959) | Other | |
| Rated operating voltage (EF001435) | - | V |
| Conditioned rated short-circuit current Iq (EF001444) | - | kA |
| Rated operation power at AC-3, 400 V (EF001364) | - | kW |
