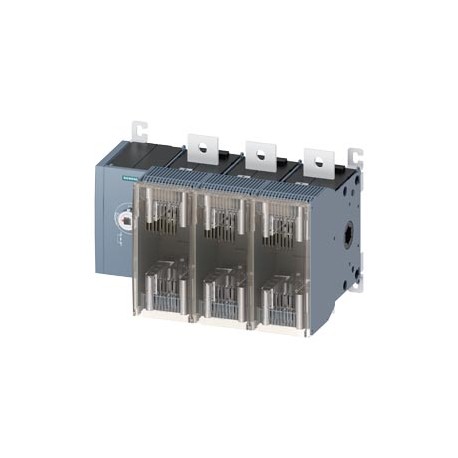

SIEMENS 3KF5363-0MF11 3KF5363-0MF11 SIEMENS Switch disconnector with fuse 630 A, Size 5, 3-pole for LV HRC fuse Sz. 2 and 3 Front .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3KF5363-0MF11 SIEMENS Switch disconnector with fuse 630 A, Size 5, 3-pole for LV HRC fuse Sz. 2 and 3 Front ..

3KF5363-0MF11

53630

SIEMENS

1 Pcs.

Switch disconnector with fuse 630 A, Size 5, 3-pole for LV HRC fuse Sz. 2 and 3 Front operating mechanism center Basic unit without handle flat terminal INTERR.-DISCONNECTOR C / FUSES 630A, SIZE 5, 3 POLES FOR FUSES NH TAM. 2 AND 3 ACCTO. FRONT IN CENTER BASE UNIT WITHOUT HANDLE FLAT CONNECTIONS. Cancelations and returns limited. Consult conditions.

Connectors > Switch disconnector
SWITCHES-DISCONNECTORS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

Switch disconnector with fuse 630 A, Size 5, 3-pole for LV HRC fuse Sz. 2 and 3 Front operating mechanism center Basic unit without handle flat terminal
Model
product brand nameSENTRON
design of the product3KF switch disconnector with fuses
product variations3KF NH
design of the actuating elementwithout
design of handleWithout
direction of actuationfrom the front
type of the driving mechanism / motor driveNo
number of poles3
size of disconnecting link3 and 2
size of switch disconnector5
size of fuse linkNH2, NH3
mechanical service life (switching cycles) / typical6 000
electrical endurance (switching cycles)
● at AC-23 A / at 440 V1 500
● at AC-23 A / at 690 V1 000
● at DC-23 A / at 440 V1 000
I2t value
● with closed switch / for combination switch + fuse / at 500 V / maximum4 100 000 A²·s
● with closed switch / for combination switch + fuse / at 400 V / maximum4 100 000 A²·s
● with closed switch / at 690 V / for combination switch + gG fuse / maximum2 050 000 A²·s
● of the fuse / at 500 V / maximum permissible10 400 000 A²·s
● of the gG fuse / at 690 V / maximum permissible7 000 000 A²·s
● of the aM fuse / at 690 V / maximum permissible7 000 000 A²·s
fuse systemLV HRC fuse
overvoltage categoryIV
operating voltage / with current paths in series
● with degree of pollution 2 / at DC / rated value440 / 3
● with degree of pollution 3 / at DC / rated value440 / 3
surge voltage resistance / rated value12 kV
Supply voltage
operating voltage / at AC / rated value / maximum690 V
Protection class
protection class IPIP00
protection class IP
● with closed switch / with cover or cable lug coverIP20
● on the frontIP00
Dissipation
power loss [W]
● with conventional rated thermal current / per pole40 W
● with conventional rated thermal current / per device120 W
● with conventional rated thermal current / without fuse / per pole40 W
● with conventional rated thermal current / without fuse / per device120 W
● for rated value of the current / at AC / in hot operating state / per pole40 W
● of the fuse / per fuse / maximum48 W
operational current
● at 35 °C / rated value630 A
● at 40 °C / rated value630 A
● at 45 °C / rated value630 A
● at 50 °C / rated value630 A
● at 55 °C / rated value630 A
● at 60 °C / rated value630 A
● at 65 °C / rated value560 A
● at 70 °C / rated value560 A
● at AC / rated value630 A
● at AC-21 A / at 500 V / rated value630 A
● at AC-21 A / at 690 V / rated value630 A
● at DC-23 A / at 440 V / rated value / note630 A
● at DC-23 A / at 220 V / rated value / note630 A
● at DC-22 A / at 440 V / rated value / note630 A
● at DC-22 A / at 220 V / rated value / note630 A
● at DC-21 A / at 440 V / rated value / note630 A
● at DC-21 A / at 220 V / rated value630 A
operational current / at DC / rated value630 A
let-through current / of the fuse / at 500 V / maximum permissible77 400 A
let-through current / of the gG fuse / at 690 V / maximum permissible77 400 A
let-through current / of the aM fuse / at 690 V / maximum permissible77 400 A
let-through current / with closed switch
● at 690 V / for combination switch + aM fuse / maximum permissible46 590 A
● at 690 V / for combination switch + gG fuse / maximum permissible46 590 A
● for combination switch + fuse / at 400 V / maximum permissible58 500 A
● for combination switch + fuse / at 500 V / maximum permissible62 900 A
short-time withstand current (Icw) / at 690 V AC/440 V DC / limited to 1 s / rated value22 kA
Main circuit
operating power / at AC-23 A / at 500 V / rated value400 kW
operational current / rated value630 A
Auxiliary circuit
number of connected NC contacts / for auxiliary contacts0
number of connected NO contacts / for auxiliary contacts0
number of connected CO contacts / for auxiliary contacts0
number of CO contacts / for auxiliary contacts0
number of NC contacts / for auxiliary contacts8
number of NO contacts / for auxiliary contacts8
suitability for use
● main switchYes
● switch disconnectorYes
● EMERGENCY OFF switchYes
● safety switchYes
● maintenance/repair switchYes
product feature / interlockNo
● product function / phase failure monitoringNo
● product component / voltage triggerNo
● product component / undervoltage releaseNo
● product component / undervoltage release with leading contactNo
product feature / sealableYes
product extension / auxiliary switchYes
product extension / optional
● locking capabilityYes
● motor driveNo
● fuse monitoringYes
product function
● fuse monitoringNo
● overvoltage protection monitoringNo
Short circuit
short-circuit current making capacity (Icm) / for switch disconnector / at 690 V AC/440 V DC / without fuse link / rated value / minimum44 kA
conditional short-circuit current / with line-side fuse protection
● at 500 V / by gG fuse / rated value100 kA
● at 690 V / by gG fuse / rated value80 kA
Connections
arrangement of electrical connectors / for main current circuitTop and bottom
tightening torque / with screw-type terminals
● minimum50 N·m
● maximum75 N·m
type of connectable conductor cross-sections / for aluminum conductor / stranded / with lug1x (25 ... 300 mm²), 2x (25 ... 300 mm²)
type of connectable conductor cross-sections
● for copper busbar1x (50 x 10 mm²)
type of connectable conductor cross-sections / for copper conductor
● stranded / with lug / according to DIN 462341x (25 ... 240 mm²), 2x (25 ... 240 mm²)
● stranded / with lug / according to DIN 462351x (25 ... 300 mm²), 2x (25 ... 300 mm²)
type of electrical connection / for main current circuitflat connector
Mechanical Design
height270 mm
width393 mm
depth262 mm
fastening methodfloor mounting
fastening method
● 4-hole front mountingNo
● front mounting with central attachmentNo
● rail mountingNo
mounting positionany
net weight15 150 g
Environmental conditions
ambient temperature / during operation
● minimum-25 °C
● maximum70 °C
ambient temperature / during storage
● minimum-50 °C
● maximum80 °C

Downloads and manuals

General Product ApprovalDeclaration of Conformity

Confirmation

CCC

VDE

Miscellaneous

EAC

EC/EU-Declaration of Conformity

Declaration of ConformityMarine / Shippingother

UK Declaration of Conformity

DNV-GL

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/13/2022


Additional data

Product
Article Number (Market Facing Number)3KF5363-0MF11
Product DescriptionSwitch disconnector with fuse 630 A, Size 5, 3-pole for LV HRC fuse Sz. 2 and 3 Front operating mechanism center Basic unit without handle flat terminal
Product familySENTRON 3KF Switch Disconnectors with Fuses
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12S / 1DL
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)17,000 Kg
Packaging Dimension500,00 x 320,00 x 320,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869536521
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDLV10
Product Group5379
Group CodeP360
Country of originChina
Compliance with the substance restrictions according to RoHS directiveSince: 31.01.2016
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-14-01
eClass7.127-37-14-01
eClass827-37-14-01
eClass927-37-14-01
eClass9.127-37-14-01
ETIM5EC001040
ETIM6EC001040
ETIM7EC001040
ETIM8EC001040

ETIM data

ETIM: EC000216 - Switch disconnector

Value Unit
Rated permanent current at AC-23, 400 V (EF011777) -A
Version as main switch (EF006981) true
Version as maintenance-/service switch (EF006986) true
Version as safety switch (EF006985) true
Version as emergency stop installation (EF006959) true
Version as reversing switch (EF009408) false
Number of switches (EF005586) -
Max. rated operation voltage Ue AC (EF007355) 690V
Rated permanent current Iu (EF001389) 630.0A
Rated permanent current at AC-21, 400 V (EF009165) 630A
Rated short-time withstand current lcw (EF007050) 22.0kA
Rated operation power at AC-23, 400 V (EF007027) 355.0kW
Switching power at 400 V (EF009166) 355.0kW
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 8
Number of auxiliary contacts as normally open contact (EF001376) 8
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) false
Motor drive integrated (EF006697) false
Voltage release optional (EF007491) false
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for floor mounting (EF007243) FALSE
Suitable for front mounting 4-hole (EF007247) false
Suitable for front mounting centre (EF007248) false
Suitable for distribution board installation (EF007262) false
Suitable for intermediate mounting (EF007264) false
Colour control element (EF007167) Other
Type of control element (EF006976) None
Interlockable (EF006281) false
Type of electrical connection of main circuit (EF006819) Other
Degree of protection (IP), front side (EF003118) IP00
Degree of protection (NEMA) (EF011959) Other
Rated operating voltage (EF001435) -V
Conditioned rated short-circuit current Iq (EF001444) -kA
Rated operation power at AC-3, 400 V (EF001364) -kW
