> SIEMENS > POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > SWITCHES-DISCONNECTORS > 44402

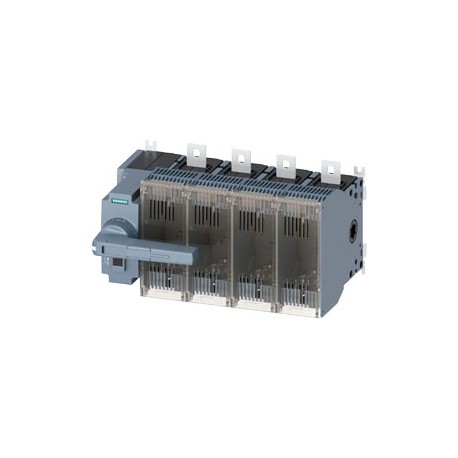

SIEMENS 3KF4440-2LF11 3KF4440-2LF11 SIEMENS switch disconnector with fuse 400 A, frame size 4, 4-pole for LV HRC fuse size 1 and 2.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3KF4440-2LF11 SIEMENS switch disconnector with fuse 400 A, frame size 4, 4-pole for LV HRC fuse size 1 and 2..

3KF4440-2LF11

44402

SIEMENS

1 Pcs.

switch disconnector with fuse 400 A, frame size 4, 4-pole for LV HRC fuse size 1 and 2 front operating mechanism left complete unit with direct operating mechanism flat connector without fuses INTERR.-DISCONNECTOR W/FUSES 400A, SIZE 4, 4 POLES FOR NH TAM FUSES. 1 AND 2 ACCTO. FRONT TO LEFT COMPLETE UNIT WITH ACCTO. DIRECT GRAY FLAT CONNECTIONS. Cancelations and returns limited. Consult conditions.

Connectors > Switch disconnector
SWITCHES-DISCONNECTORS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product
Article Number (Market Facing Number)3KF4440-2LF11
Product Descriptionswitch disconnector with fuse 400 A, frame size 4, 4-pole for LV HRC fuse size 1 and 2 front operating mechanism left complete unit with direct operating mechanism flat connector without fuses
Product familySENTRON 3KF Switch Disconnectors with Fuses
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12S / 53R
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)9,960 Kg
Packaging Dimension590,00 x 390,00 x 325,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869536484
UPCNot available
Commodity Code85362090
LKZ_FDB/ CatalogIDLV10
Product Group5379
Group CodeP360
Country of originChina
Compliance with the substance restrictions according to RoHS directiveSince: 31.01.2016
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass1227-37-14-01
eClass1427-37-14-01
eClass627-37-14-01
eClass7.127-37-14-01
eClass827-37-14-01
eClass927-37-14-01
eClass9.127-37-14-01
ETIM10EC001040
ETIM7EC001040
ETIM8EC001040
ETIM9EC001040

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
